ES-SUB-EVO-6 Owner’s Manual
© 2013 Episode
III. Reference

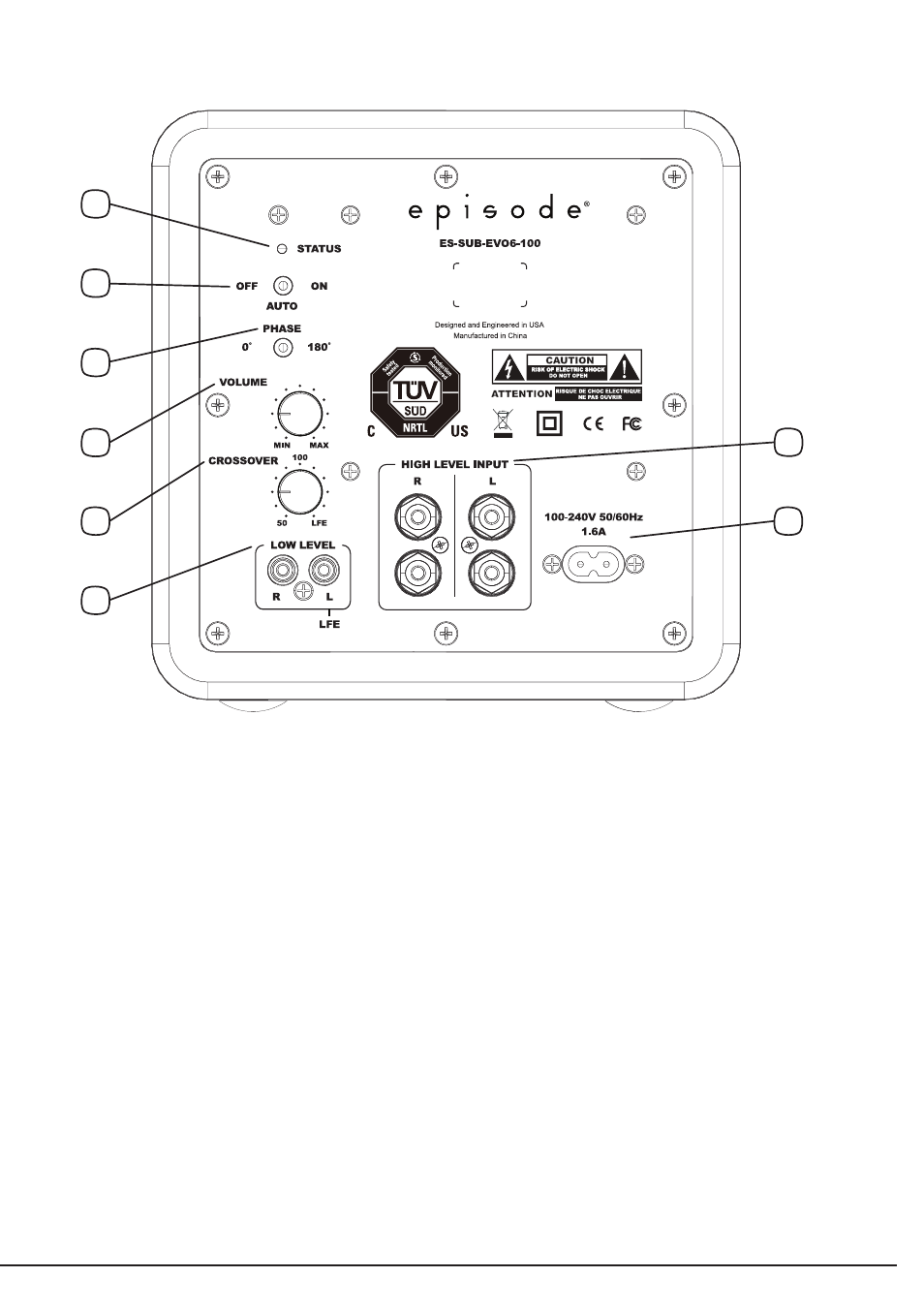

9. Connections and Controls
8
7
6
5
3
2
1
4
1. STATUS LED
Red- Subwoofer is in standby mode, or power mode switch is set to OFF. AC power is present.
Blue- Subwoofer power mode switch is set to ON, or is set to AUTO and signal is being received.
2. Power Mode Switch
3 way toggle switch for setting power mode to OFF, AUTO, or ON.
3. Phase Switch
Set the phase of the subwoofer in relation to the listening area.
4. Volume Knob
Adjust subwoofer volume.
5. Crossover Knob
Adjust the crossover frequency (limits the highest frequency the subwoofer will play).
*Note: Set the crossover knob to “LFE” if the LFE input is used.
6. LOW LEVEL Inputs (RCA)
For left/right or LFE connections from audio source. To connect LFE, use the L (left) channel.
7. HIGH LEVEL INPUT (Speaker Wire Binding Post)
For left/right connections from speaker cable runs.
8. Power Cord Inlet
Connect the included cord for providing power.
