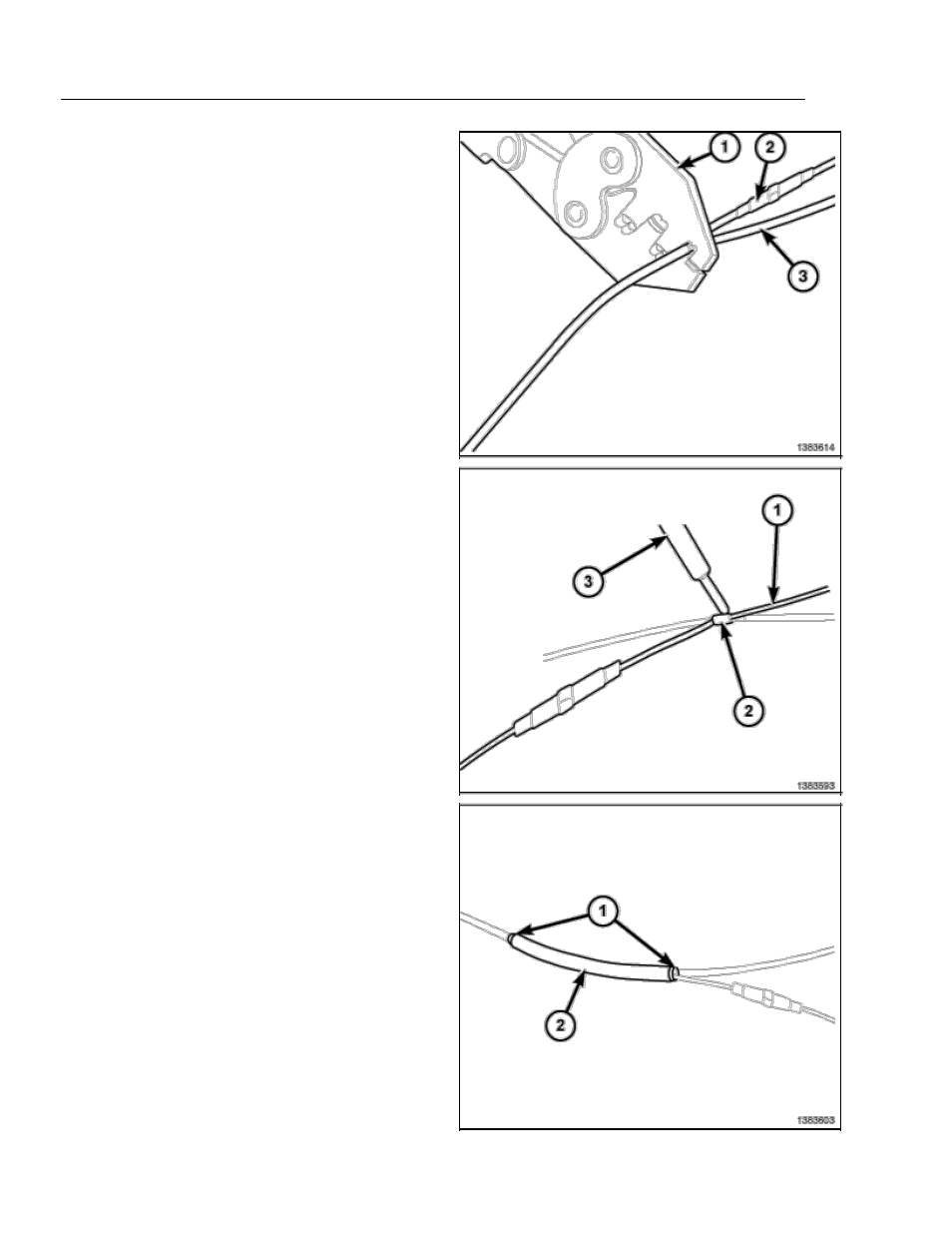

13. Using crimping tool, crimp the splice clip and wires
together.
14. Repeat the previous two steps for the ground side
wires.
15. Solder (3) the connection (2) together using rosin core
solder (1).
16. Center the heat shrink tubing (2) over the solder joint
and heat using a heat gun. Heat the joint until the tub-
ing is tightly sealed and sealant (1) comes out of both
ends of the tubing.
