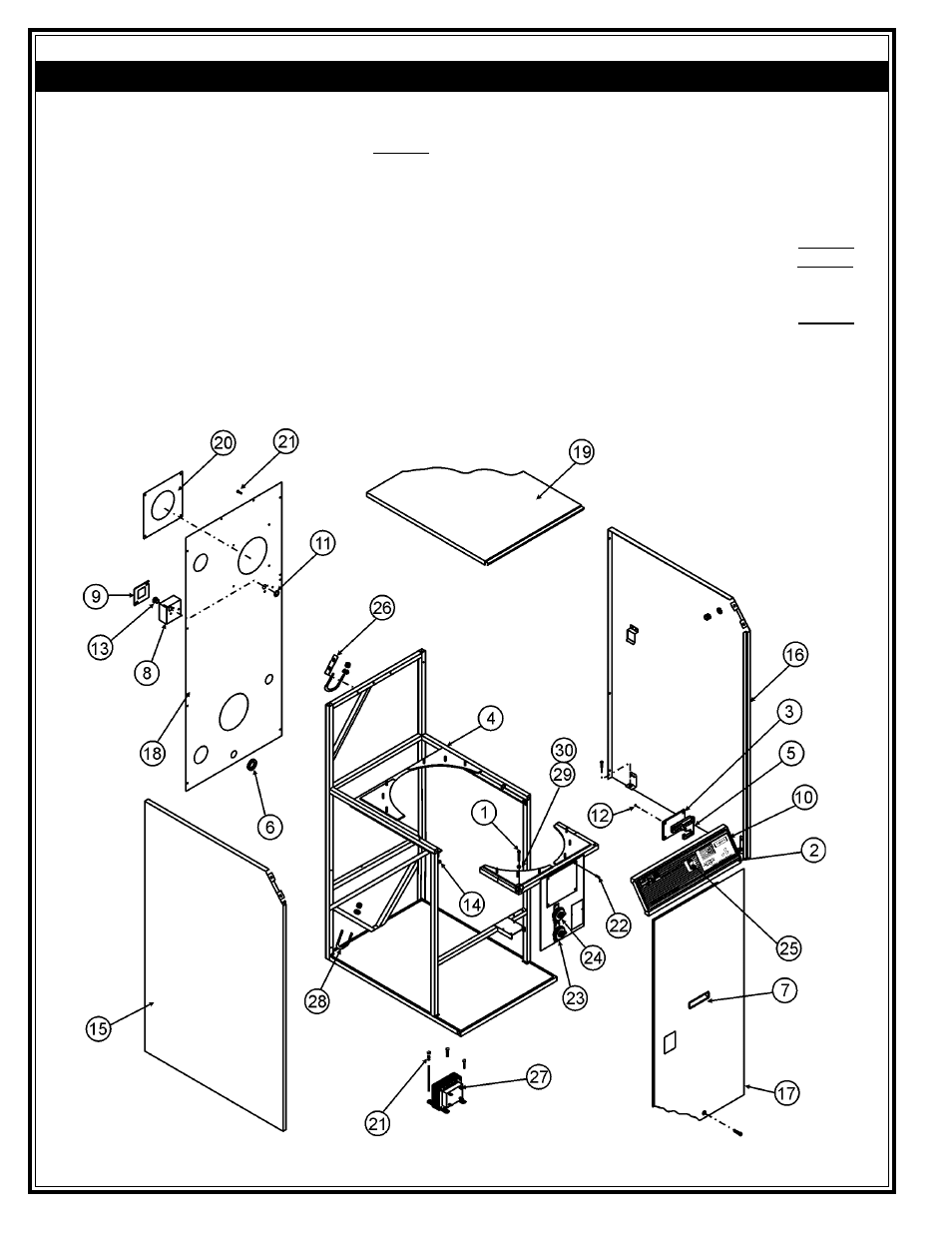

LB/LW 1000 JACKET/FRAME ASSEMBLY
Item Description Part No.
1 .... Bolt Machine 5/16” - 18" ...................... 191358-2
2 .... Control Panel Assembly ........................ 210601
3 .... Display Board ....................................... 210219
4 .... Frame Assembly .................................. 210501
5 .... Gasket, Display .................................... 210130
6 .... Grommet ............................................... 97951
7 .... Handle .................................................. 191802
8 .... Junction Box Assembly ........................ 190438-1
9 .... Junction Box Cover .................................. 2233
10 .... Label, Control Panel .............................. 210561-1
11 .... Locknut, Star ........................................... 1953
12 .... Locknut #6 -32 ....................................... 210207
13 .... Nipple, Chase ......................................... 41994
14 .... Nut, Lock Hex 5/16” - 18" ........................ 97896
15 .... Panel Assembly, Left Side .................... 191796-3
16 .... Panel Assembly, Right Side .................. 191796-2
17 .... Panel, Lower Front ............................... 191805-1
18 .... Panel, Rear (Natural) .............................. 192191
18 .... Panel, Rear (Propane) ............................ 210020
19 .... Panel, Top Cover .................................. 191609-1
20 .... Plate, Rear Cover ................................... 210214
21 .... Screw, Hex Head 5/16” .......................... 210125
22 .... Screw, Hex Head #6 -32 ........................ 210206
23 .... Switch, Blower Prover ............................ 191666
24 .... Switch, Blocked Flue ............................. 191667
25 .... Switch , Rocker .................................... 191665-1
26 .... Support Bracket (Propane Only) ............. 210017
27 .... Transformer (100VA) .............................. 210449
28 .... U - Bolt Assembly (Waterway) ............... 191938
29 .... Washer, Flat .......................................... 191359
30 .... Washer, Lock ........................................ 191480
31 .... Switch, Relay ........................................ 211546
