2 Hardware Overview

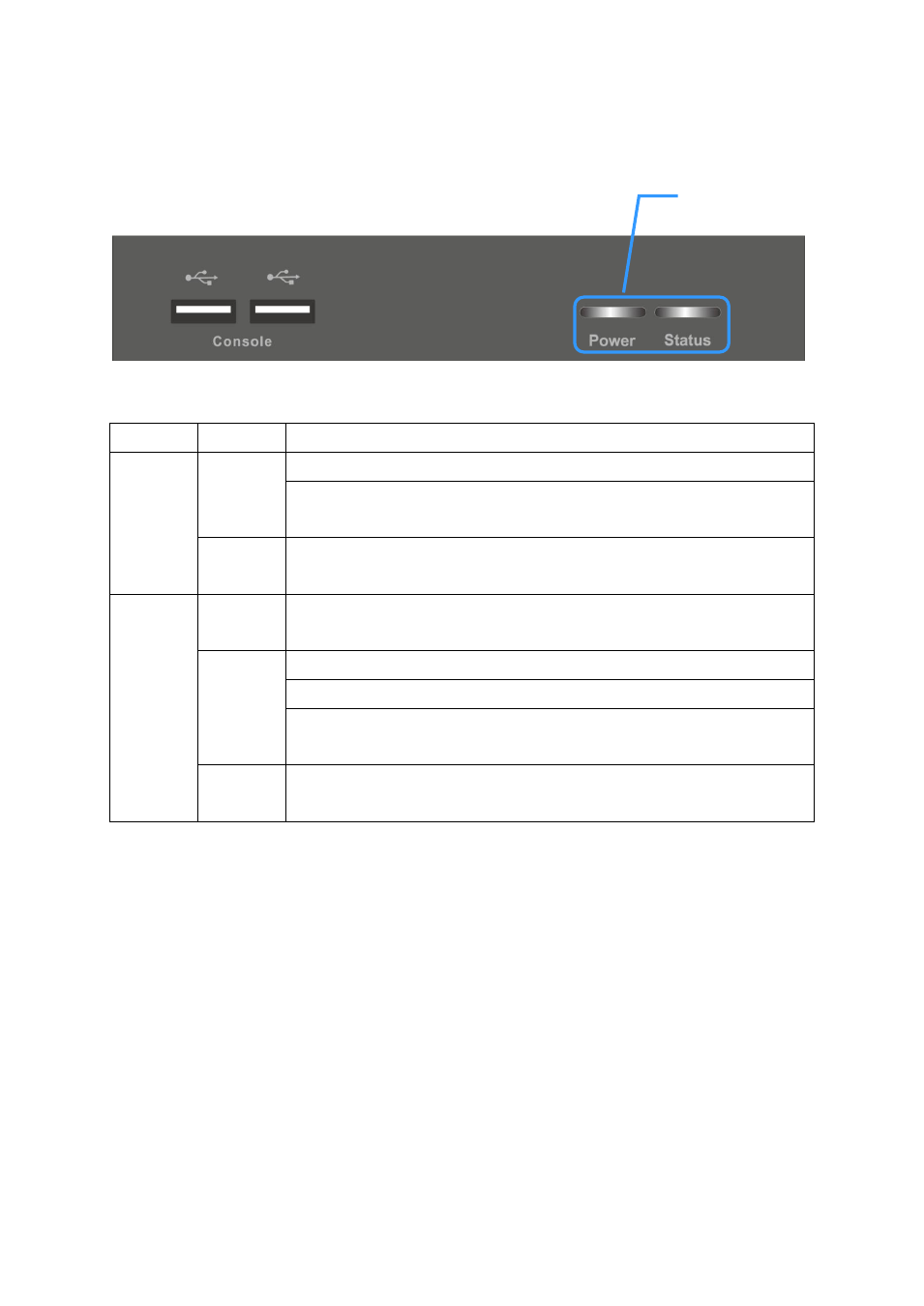

2.1 Transmitter’s LEDs, Button and Ports
LED
Status
Description
Power
Off
KVM-9006T is power off.
KVM-9006T is connected to a computer which is power
off.
On
KVM-9006T is power on or connected to a computer
which is power on.
Status
Off
KVM-9006T’s RJ-45 port is not connected to the remote
site KVM-9006R.
Flash
KVM-9006T is occupied by the remote site KVM-9006R.
KVM-9006R is auto-adjusting the VGA signal.
KVM-9006T is linking with remote when plugging /
re-plugging in a CAT5 cable.
On
KVM-9006T is linked with the remote site KVM-9006R
by a CAT5 cable.
Power/Status LED
