5. LED Indicators

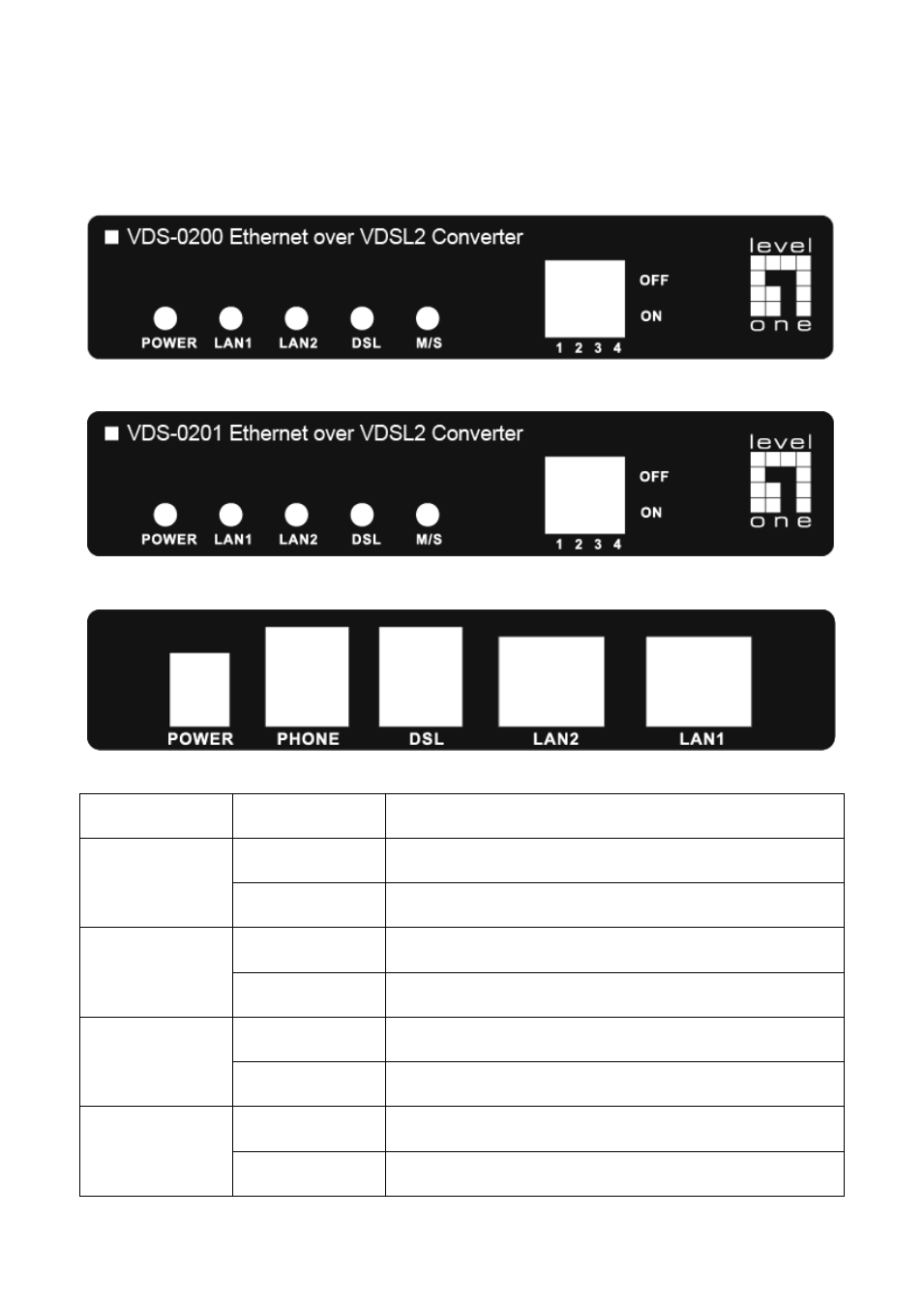

On the front panel of VDS-0200/VDS-0201, there are 5 LED indicators as the following
 VDS-0200 Front Panel
 VDS-0201 Front Panel
 VDS-0200/VDS-0201 Rear Panel
POWER Green On Indicates power is on and normal
LAN1
Green On Indicates Ethernet LAN1 port is in connection
Flashing Indicates Ethernet LAN1 data activities
LAN2
Green On Indicates Ethernet LAN1 port is in connection
Flashing Indicates Ethernet LAN1 data activities
DSL
Green On Indicates VDSL2 is in connection
Flashing Indicates VDSL2 is in line handshaking
M/S
Green On Indicates converter is set as Slave (VTU-R) mode
OFF Indicates converter is set as Master (VTU-C) mode
