QUAD AMPLIFIER
16 QD -4240/4480/4960, QX-4960
Applications (QD-4960) Applications (QD-4960)
OC03
www.inter-m.com

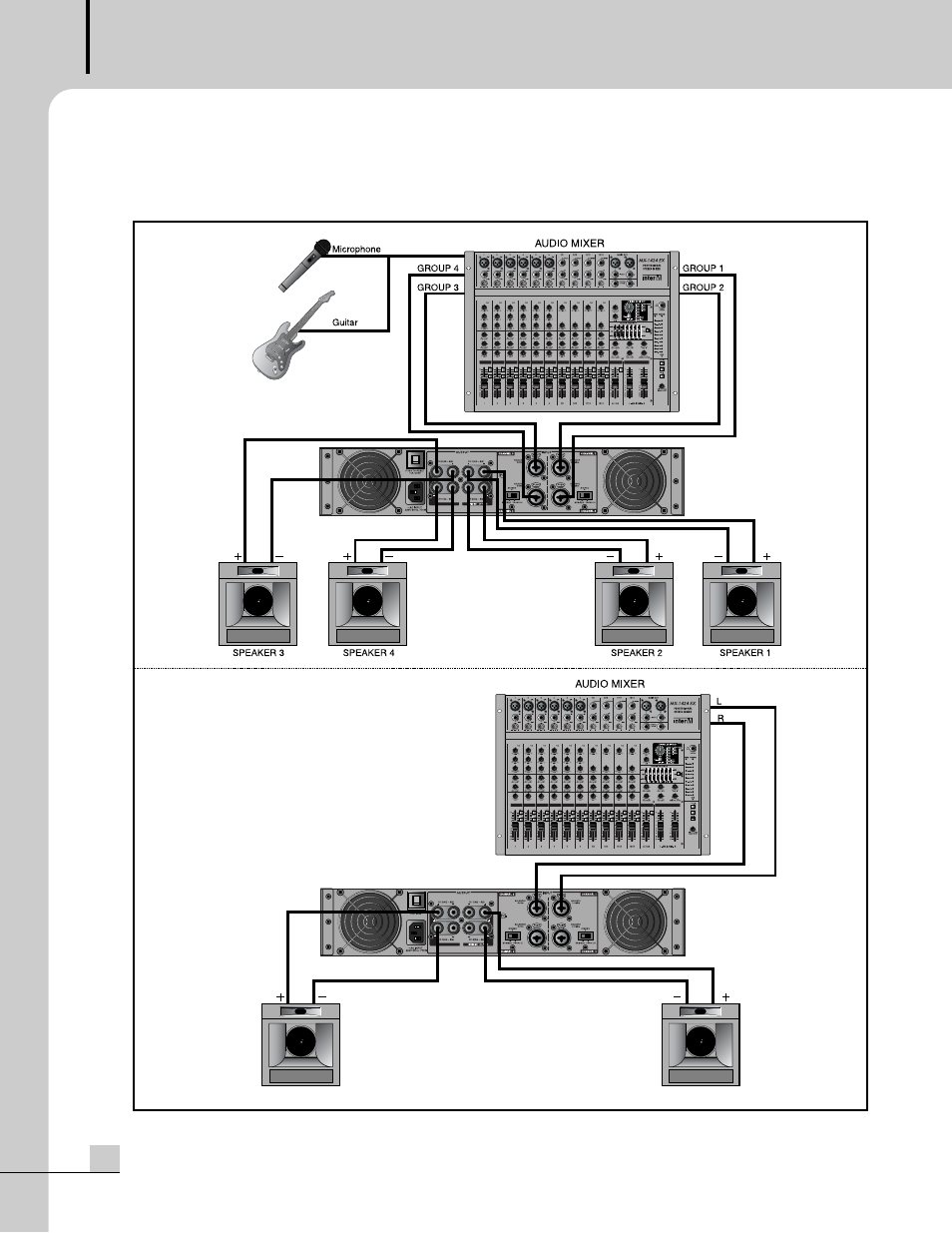

- SINGLE AMP SYSTEM
- BRIDGED MONO OPERATION
1. Set mode selector to bridged mono.
2. Set the Channel 2 and 4 VR to maximum (0) position.
3. Connect a mono input signal to channel one input jack.
4. Connect the speaker load to the two red terminals of
each channel, please confirm the (+) terminal of speaker
to channel one and the (–) terminal to channel two.
5. Do not use the black terminals of each channel.
6. Please notice to connect the speaker impedance
8ohm or above.
OC03
www.inter-m.com
SPEAKER 2 SPEAKER 1
