Speaker Connections (QD-4960)
Speaker Connections (QD-4960)
The QD-4960 has three operational modes (Stereo/Parallel/Bridged), and speakers may be connected in
parallel. The impedance varies depending on the selected mode, and caution should be used to make sure the
impedance is not less than the recommended impedance.

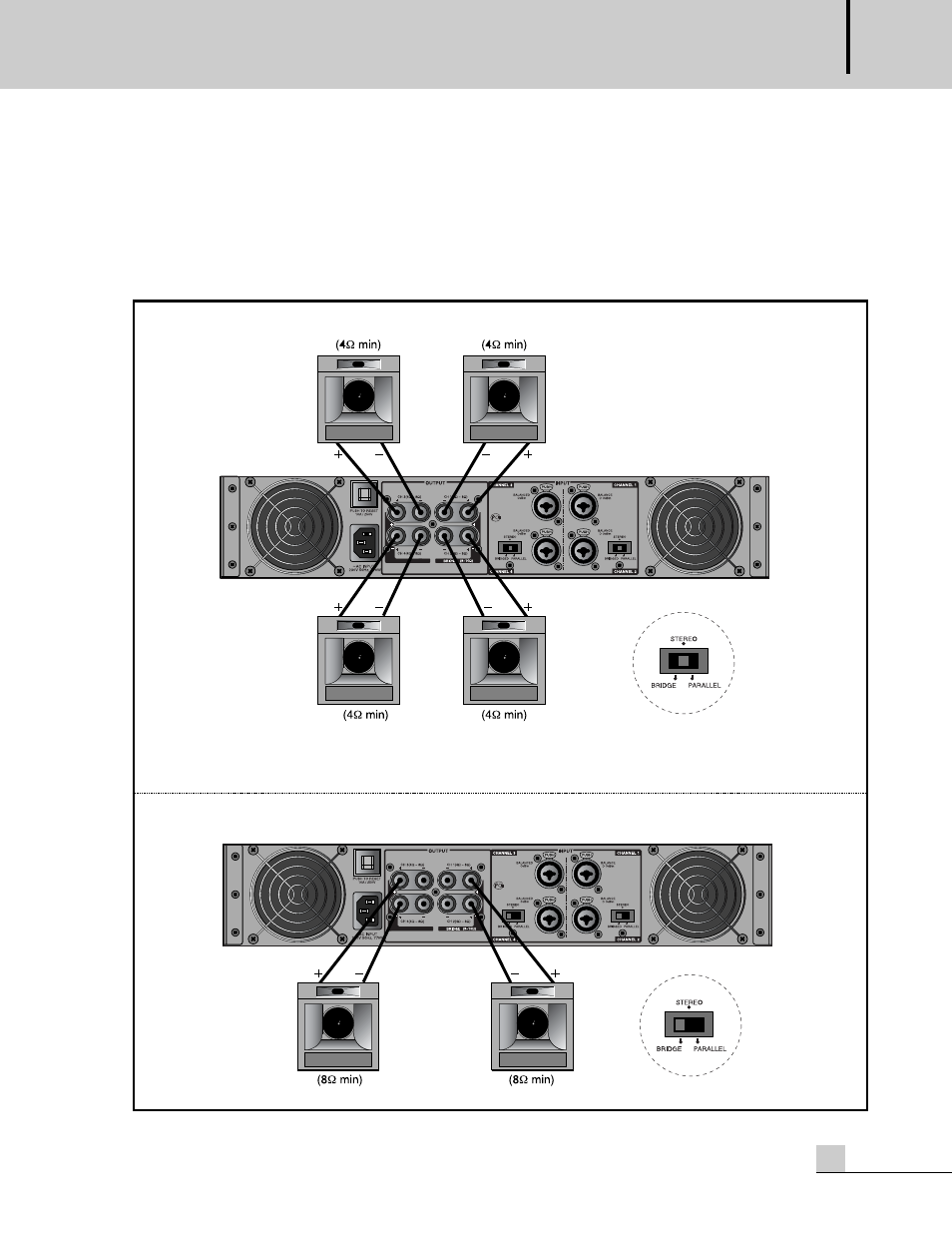

- STEREO/PARALLEL MODE CONNECTIONS
- BRIDGED MONO CONNECTIONS
OC03
www.inter-m.com
OC03
www.inter-m.com
* CAUTION:
The parallel mode is the same connections with stereo mode, but you must set the switch to
parallel mode and apply input to CH1 & CH3.
