PUBLIC ADDRESS AMPLIFIER
7 MA-106

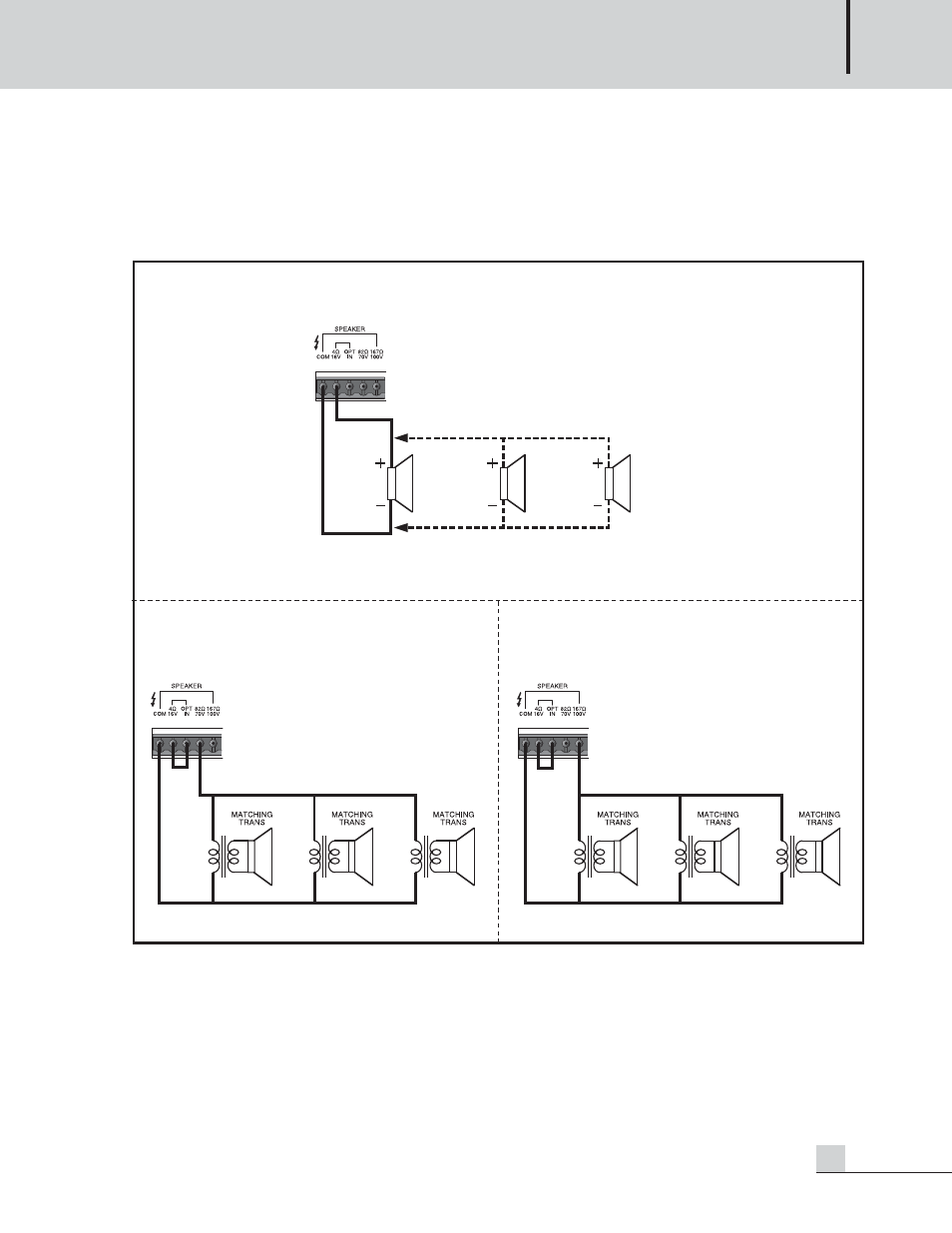

Connecting Speakers Connecting Speakers
Before connecting speakers to MA-106 unit, be sure to disconnect the AC power cable.
NOTE : 1. Make certain that the total impedance is not less than the rated impedance indicated.
2. Don’t have to use several speaker terminals at the same time.
3. If you’re just dealing with the high impedance terminal, then make sure that 4Ω output terminal is
connected with OPT-IN terminal.
4Ω
SPEAKER
8Ω 8Ω
- FOR 70V TERMINAL - FOR 100V TERMINAL
(ONE 4Ω SPEAKER) (TWO 8Ω SPEAKERS)
- FOR 4Ω TERMINAL
*3 *3
