6 R150 PLUS/300 PLUS/500 PLUS
REFERENCE AMPLIFIER

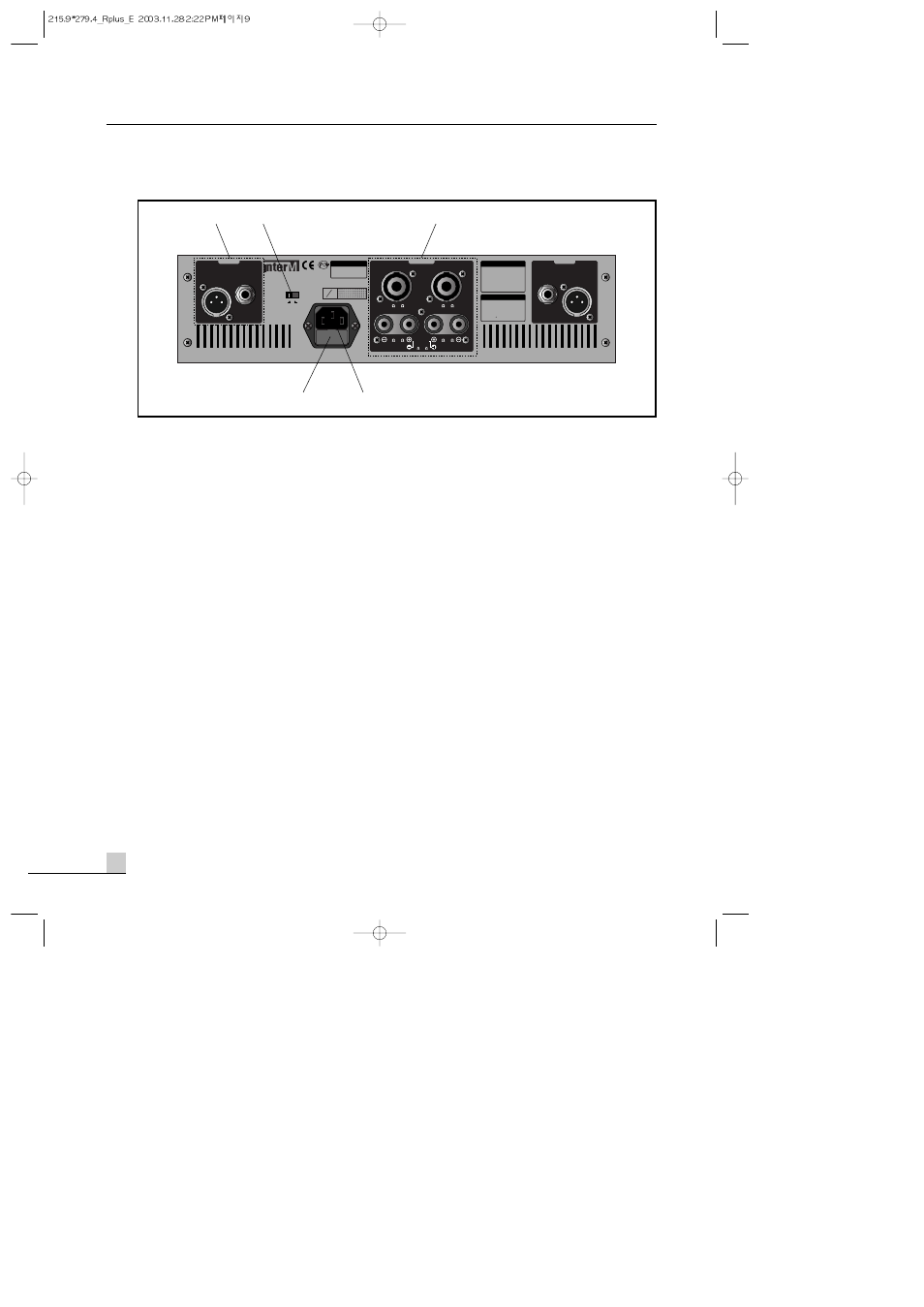

Rear Panel Rear Panel
1. BALANCED INPUT CONNECTORS
Each input channel is equipped with a 1/4" TRS and an XLR connector. Standard rules of interconnect apply.
2. MODE SELECTOR SWITCH
Move this switch to select either the STEREO or BRIDGED MONO position as needed for the application.
The Stereo mode is most common. Channel 1 input feeds the channel 1 output. The channel 2 input feeds the
channel 2 output.
The Bridge Mono mode combines both channels to create one larger mono channel. Input signal applied to
channel 1 will be available across the positive terminals of Channel 1 and channel 2. Do not connect the
channel 2 input or any of the negative outputs.
3. OUTPUT CONNECTORS
Binding Posts and Locking speaker connectors are provided. Bridged Mono operation requires a different
method of connecting the cables than Stereo operation. Be sure than the amplifier is in the correct mode
before connecting the speaker load.
4. FUSE
The fuse protects the amplifier by opening the circuit for the AC mains power in case of overload or
malfunction. If the fuse opens, the amplifier (and the various other components in the system) should be checked
for proper operation. If the fuse continues to open after verifying that the system is wired correctly and that an
overload has not occurred, the amplifier should be checked for proper operation by a service technician.
5. AC INPUT
Connect this product to an appropriate AC power source using the supplied Universal AC Power Cord.
www.inter-m.com
AMP MODE
RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR.
AVIS
S N
~ AC INPUT: 230V 50Hz,480W
FUSE: T5AL/250V
TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
CAUTION
TO REDUCE THE RISK OF FIRE REPLACE ONLY WITH SAME TYPE FUSE.
UTILISER UN FUSIBLE DE RECHANGE DE
MEME TYPE.
CHANNEL 1
INPUT
BALANCED
0dBm
CHANNEL 2
BALANCED
0dBm
INPUT OUTPUT
CHANNEL 1 CHANNEL 2
(4 ~ 8 ) (4 ~ 8 )
(4 ~ 8 ) (4 ~ 8 ) BRIDGED STEREO
REFERENCE AMPLIFIER
OC03
RATED OUTPUT 250W/CH @4 Ω STEREO
RATED OUTPUT 500W @8 Ω BRIDGED MONO
BRIDGED MONO (8 ~16 )
MODEL NO. R500 PLUS
1 2 3
4 5
