DIGITAL SR AMPLIFIER
6 DSA-100D/DV

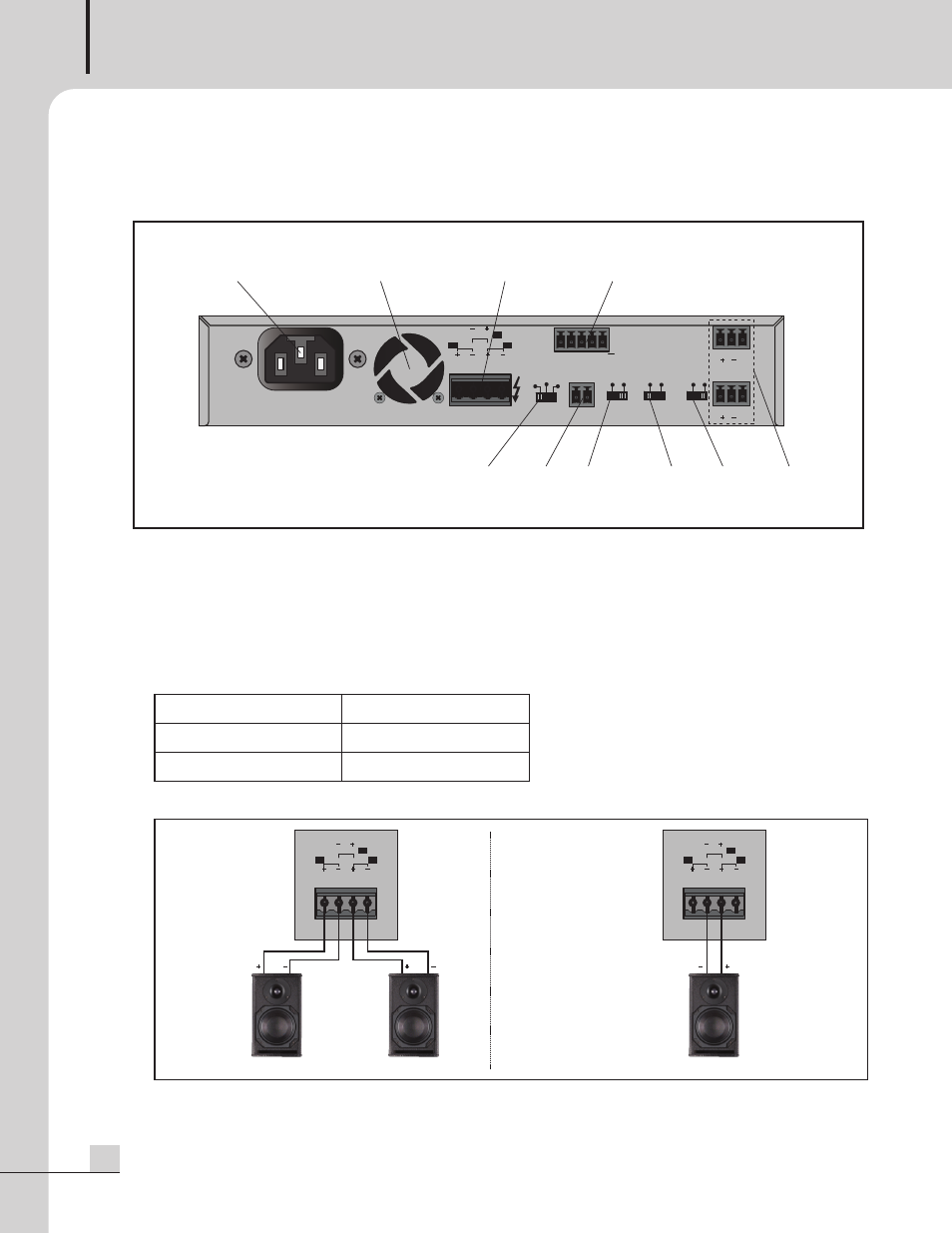

Rear Panel Rear Panel
1. AC INLET
It accepts a standard IEC mains cable, provided.
2. COOLING VENTS
Air flow is front to back. DO NOT block front or rear air vents.
3. SPEAKER OUTPUT TERMINAL
Speaker connection of CH1/CH2 or Bridge mode. (see below picture)
1 2 3
5 6 7 8 9 10
4
INPUT 1
AC INPUT
SPEAKER OUT
REMOTE
POWER
VCA CONTROL
2CH BRIDGE
V1 C1 G C2 V2
MODE
ON OFF
HPF
+4dBu -20dBu
GAIN
OFF
REMOTE
ON
POWER
CLASS 2 WIRING G
INPUT 2
G
CH 2 4Ω 4Ω
8Ω
CH 1
BRIDGE
SPEAKER OUT
4Ω 4Ω
SPEAKER OUT
8Ω
CH 2 4Ω 4Ω
8Ω
CH 1
BRIDGE
CH 2 4Ω 4Ω
8Ω
CH 1
BRIDGE 2 Channel Bridge
※ NOTE
When use bridged mode,
please set MODE switch as
‘BRIDGE’ and connect input
on ‘INPUT 1’.
Operation Mode Minimum Speaker Impedance
2 Channel 4Ω
Bridged 8Ω
