AUDIO PRE AMPLIFIER
6
PP-6213

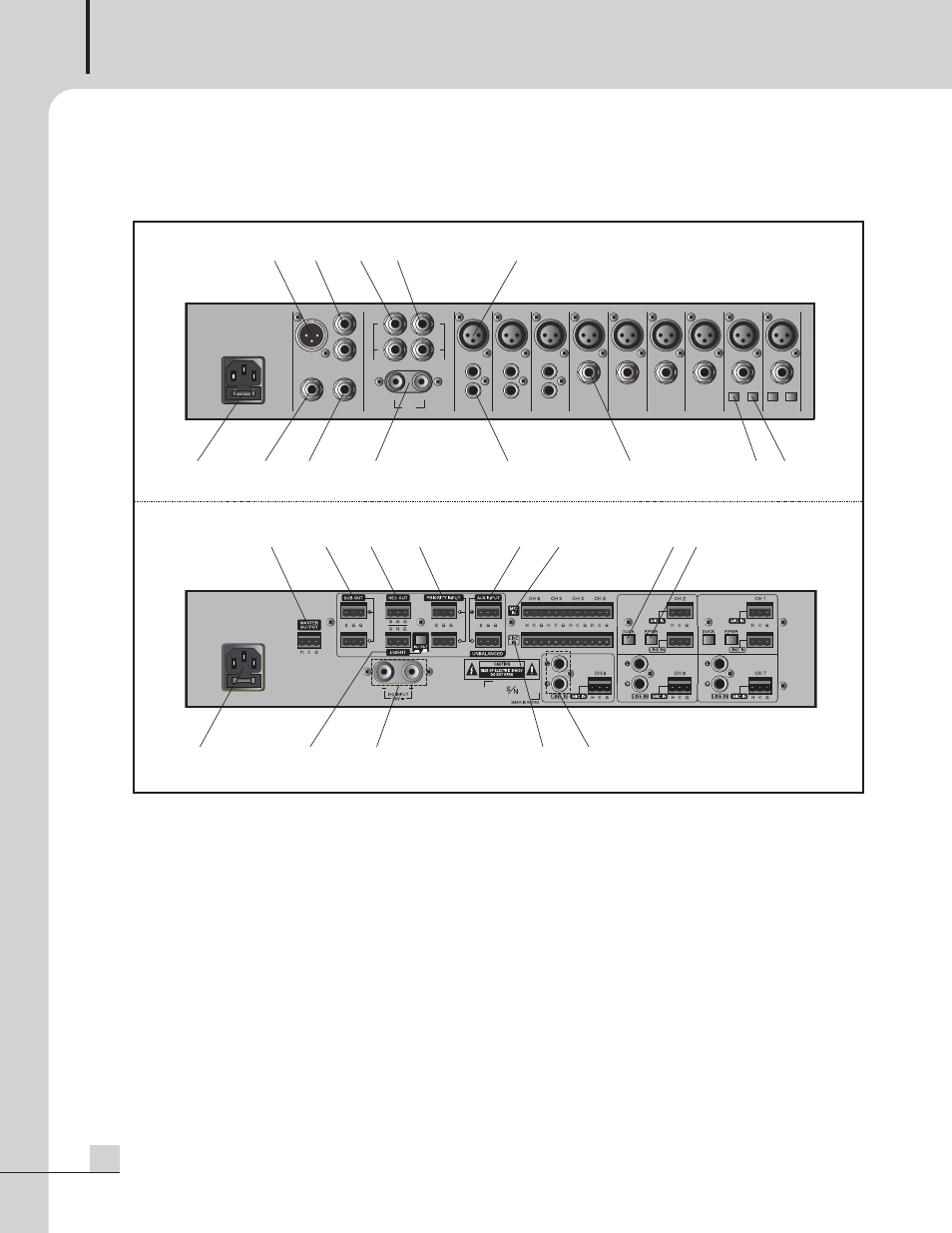

Rear Panel
Rear Panel
1. MASTER OUTPUT
This is a balanced XLR output jack for connecting to the input of a power amp.
(Output level : +4dBm/600Ω)
2. SUB OUTPUTS 1-2
These are unbalanced 1/4? phone jack outputs for connecting the input of a power amp or other audio
input. (Output level : +4dBm/600Ω)
3. PRIORITY INPUTS 1-2
These are line level inputs on unbalanced 1/4? phone jacks. When the signal is present at these inputs, all
other inputs are muted. The level for these inputs is controlled by the front-panel priority level control (9).
4. AUX INPUTS 1-2
These are line level inputs on unbalanced 1/4? phone jacks. Their level is controlled by the front panel AUX
level controls (5). (Input level : -10dBm/20kΩ)
S
N
www.inter-m.com
DUCK
P.PWR
CH1
CH2
DUCK
P.PWR
CH3
CH4
CH5
CH6
CH7
CH8
CH9
LINE IN
MIC IN
L
R
R
L
R
L
2
1
AUX
1
2
PRIORITY
+
-
DC INPUT
24V
INSERT
REC OUT
MASTER
2
1
SUB OUT
OUTPUT
INPUT
INPUT
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
7
3
4
5
12 13
6
8
9
11
10
