REMOTE MIC EXTENDER
6 RME-6108

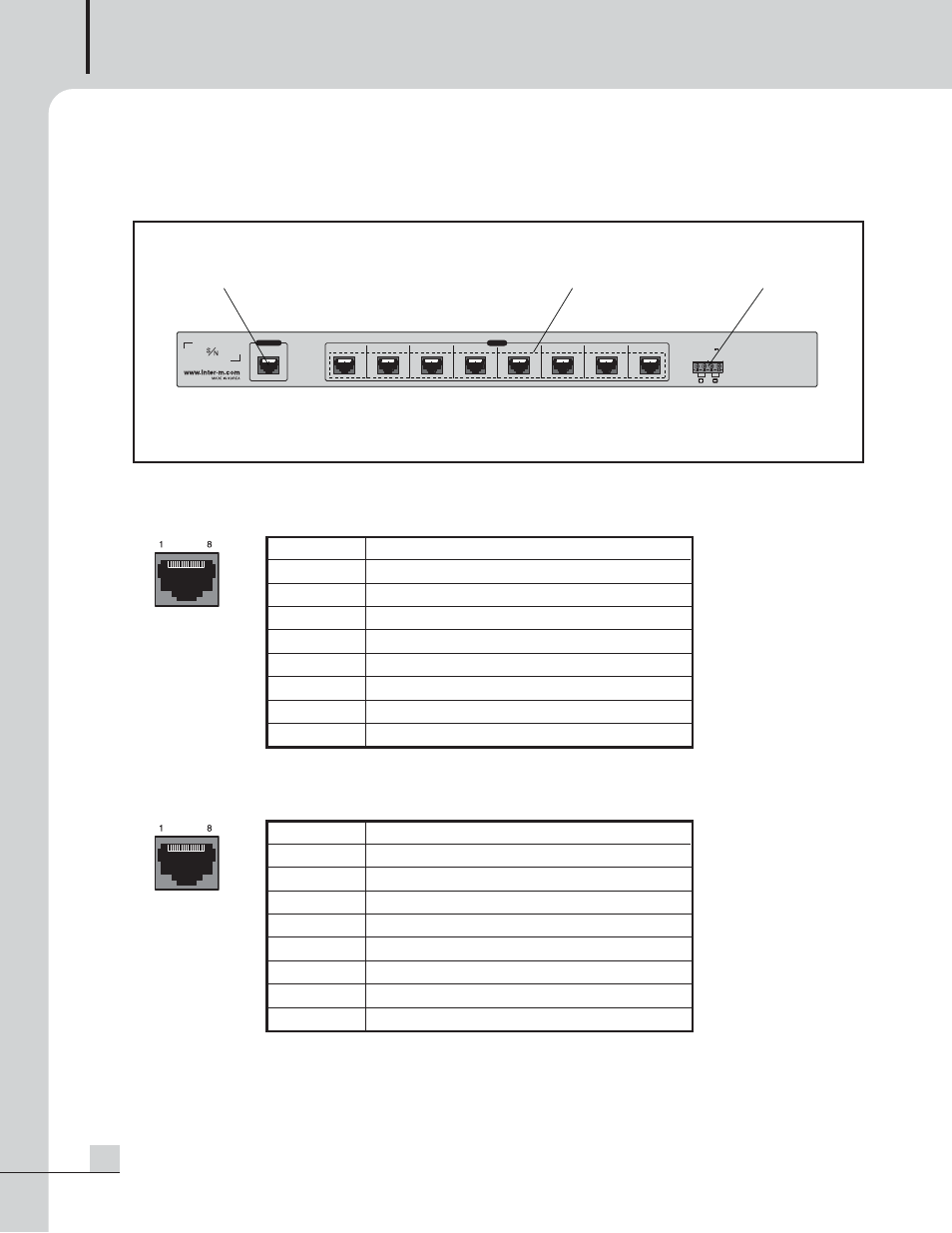

Rear Panel Rear Panel
1. OUTPUT TERMINAL
- Outputs the DATA and Audio signal of selected RM among 8 inputs.
2. INPUT TERMINAL (1CH ~ 8CH)
- Used to connect with RM.
3. DC INPUT TERMINAL
- Power input terminal. Check polarity before connecting DC 24V.
- When connecting to PD (Power Distributor), connect to unswitched terminal.
제품명칭 : REMOTE MIC EXTENDER
모델명 : RME 6108
정격입력 : DC 24V, 150mA
제조자명 :
고객지원팀 TEL : 1588 7074
만일 기재에 이상이 있을 경우 감전 또는화재의 위험이 있으니
캐비넷을 열거나 내부를 만지지 마십시오.
RM 1 RM 2 RM 3 RM 4 RM 5 RM 6 RM 7 RM 8
INPUT OUTPUT
DC 24V
3 2 1
PIN NO. Function
1 RS-422 Data - TX+
2 RS-422 Data - TX-
3 RS-422 Data - RX-
4 Live Data
5 GND
6 RS-422 Data - RX+
7 Balanced Audio Output - HOT
8 Balanced Audio Output - COLD
PIN NO. Function
1 RS-422 Data - RX+
2 RS-422 Data - RX-
3 RS-422 Data - TX-
4 Live Data Input
5 GND
6 RS-422 Data - TX+
7 Balanced Audio Output - HOT
8 Balanced Audio Output - COLD
