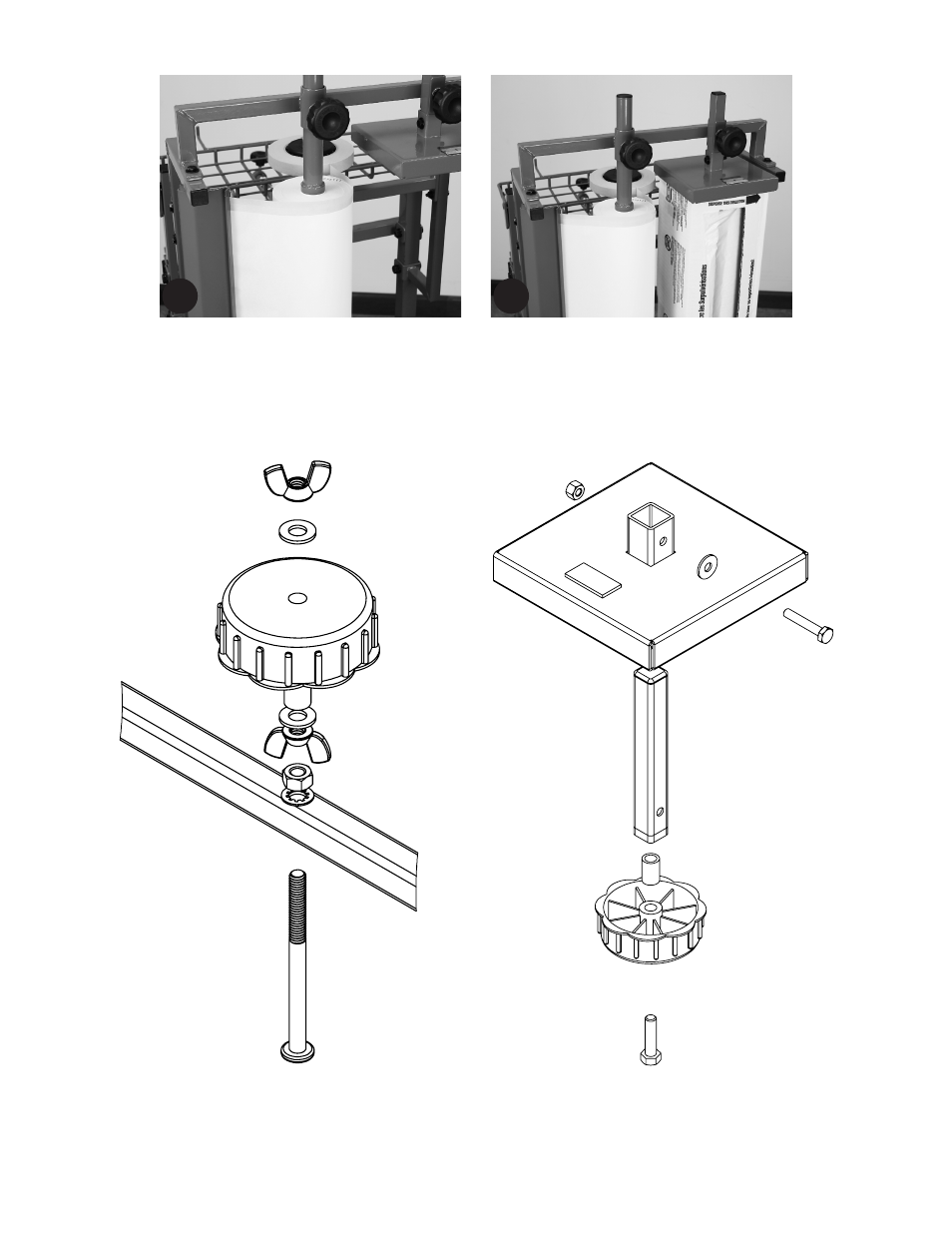

Tape hub assembly showing paper and
tape direction. Use downward pressure on
Upper Paper Support to adjust how easy
paper unrolls.
Showing both paper and plastic
installed.
Page 4
For a demonstration video, please visit:
www.InnovativeTools.com
19
20
Diagram 1 Diagram 2
