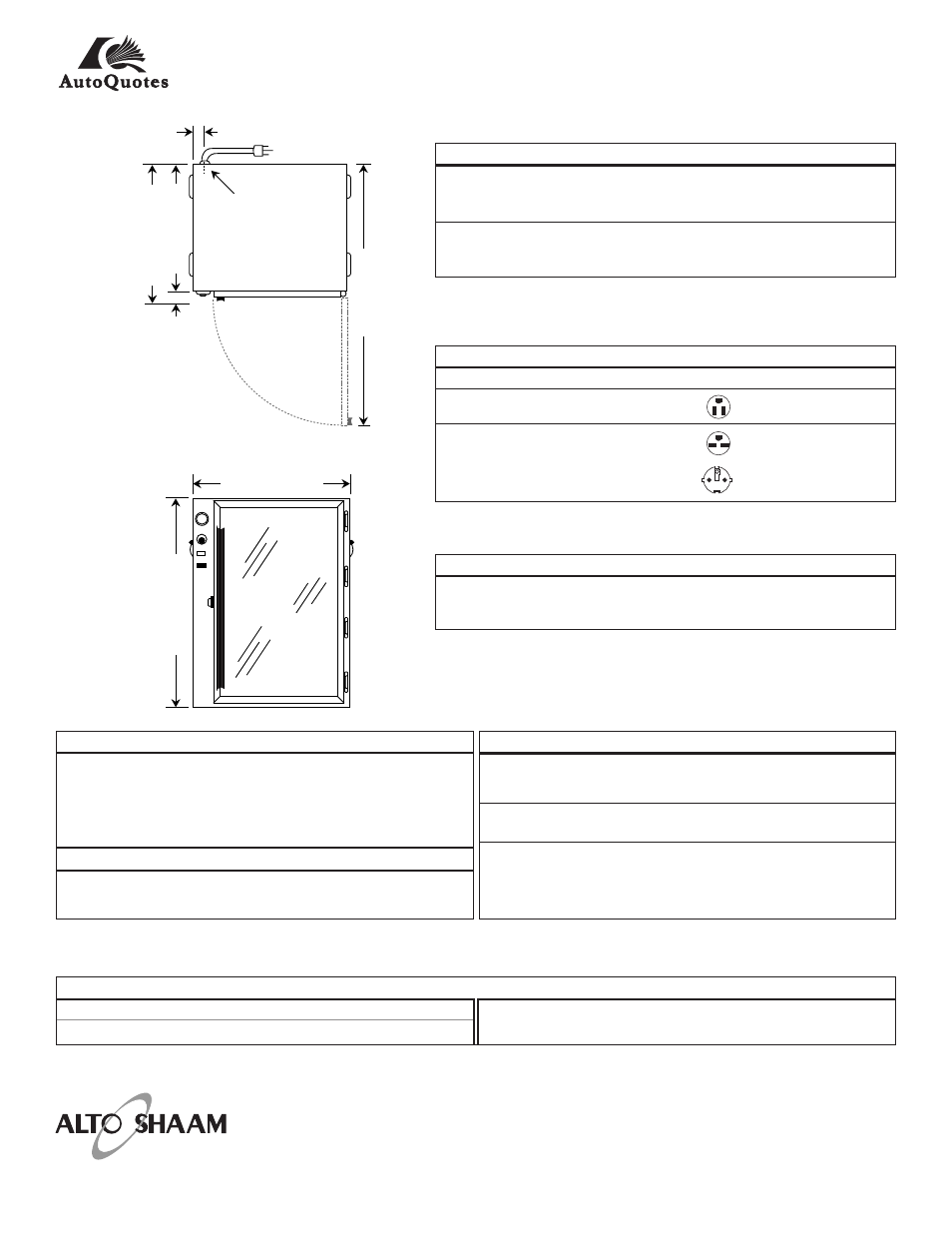

D I M E N S I O N S : H x W x D
EXTERIOR :
30-7/8" x 23-1/4" x 20-3/4" (784mm x 591mm x 527mm)
INTERIOR :
27-7/8" x 17-3/8" x 17-1/2" (708mm x 441mm x 445mm)
P R O D U C T C A PA C I T Y
MAXIMUM : Thirteen (13) 16 " (406mm) P IZZAS
MAXIMUM WEIGHT EACH PIZZA : 2 lbs. (,9kg)
C L E A R A N C E R E Q U I R E M E N T
3-inches (76mm) at the back, 2-inches (51mm) at the top,
and 1-inch (25mm) at both sides.
INSTALLATION REQUIREMENTS
Appliance must be installed level. It must not be
installed in any area where it may be affected by steam,
grease, dripping water, high temperatures, or any other
severely adverse conditions.
WEIGHT
NET 60 lb (27kg)
SHIP
110 lb (50kg)
CARTON 36" X 26" X 27"
D I M E N S I O N S : (914mm x 660mm x 686mm)
( H x W x D)
O P T I O N S & A C C E S S O R I E S
■ ■ Caster Stand Assembly 15633
■ ■ Leg Stand Assembly 15634
■ ■ Shelf, Chrome plate, Wire SH-2102
ELECTRICAL
VOLTAGE PHASE CYCLE / HZ AMPS kW
125 1 50/60 8.0 1.00
230 1 50/60 4.1 0.95
500-PH/GD
HOT PIZZA HOLDING CABINET
NEMA 5-15 P , 15A-125V PLUG
NEMA 6-15 P , 15A-250V PLUG
( USA ONLY )
CEE 7/7, 220-230V PLUG
1-3/4" (45mm)
ELECTRICAL
CONNECTION
5-3/4" (146mm)
FROM BOTTOM
