6 Hochiki Europe (UK) Ltd
2-3-0-810/ISS3/OCT11
Flameproof Safe Products

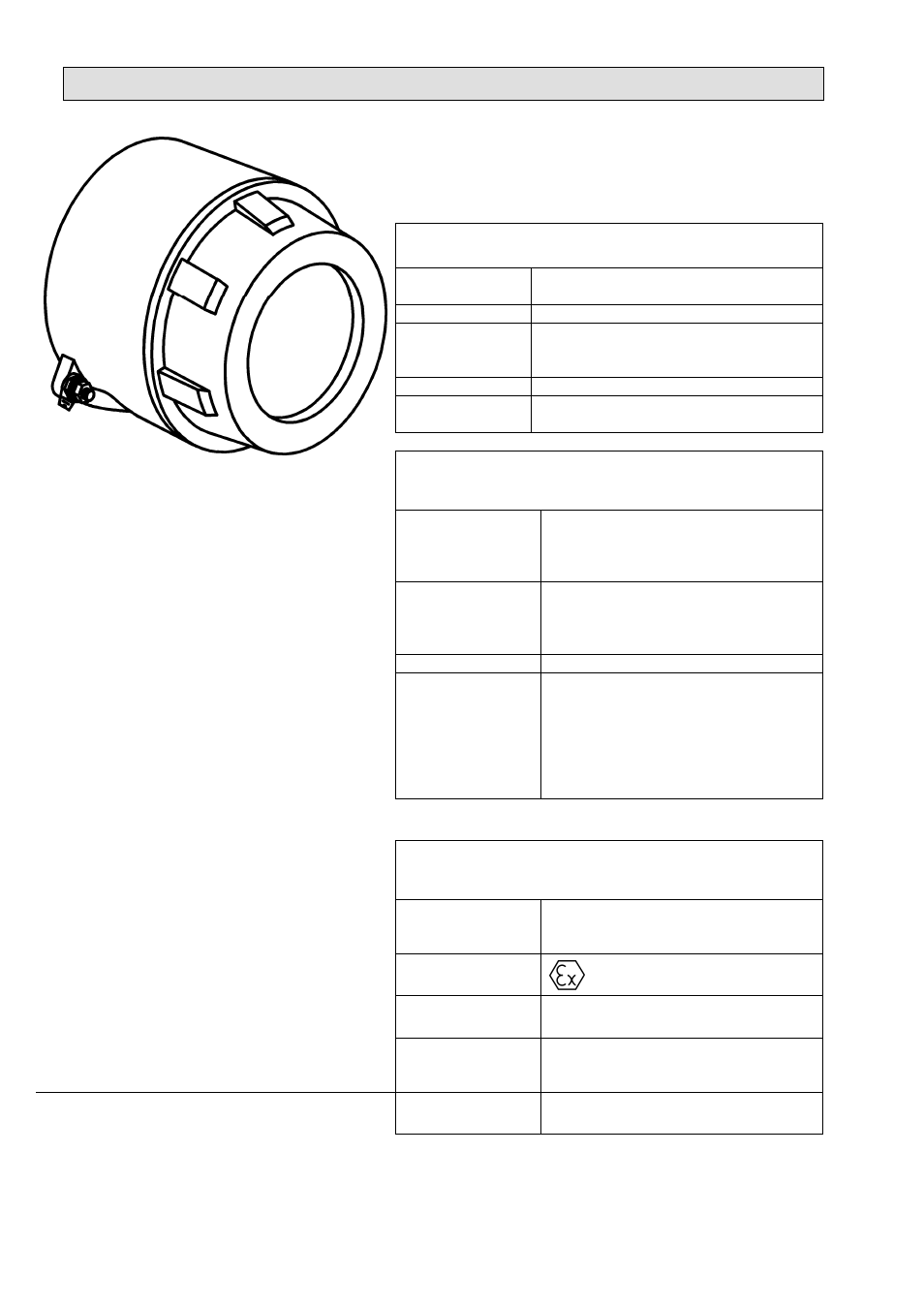

Fig. 1
Flameproof Flame Detector
(Alloy Housing)
Technical Data
Mechanical
Housing Material:
See Fig 1 Copper Free Aluminium Alloy LM25
Housing Colour: Red
Housing
Dimension:
(Excluding Mount) Height = 150mm
Width = 146mm
Depth = 137mm
Weight 2.5kg
Cable Gland
Entries:
3 X 20mm
Electrical
Supply In:
Voltage
Current
Polarity sensitive
Terminals 1(+) & 2(-)
14 to 30Vdc
2 to 28mA See datasheet for detail
Optional Input:
Voltage
Current
Polarity sensitive Terminals 3(+) & 4(-)
14 to 30Vdc
40µA typ. @ 24V IN
Power Up Time: 2 Seconds
The flame detectors respond to light emitted from
flames during combustion.
The detectors discriminate between flames and
other light sources by responding only to low
frequency flickering produced by flames (typically
1 to 15Hz). The detectors ignore fixed light
sources and rapidly flickering illumination
predominantly produced by lighting.
The flame flicker techniques have the advantage
of still allowing the detection of flames through a
thin layer of oil, water vapour, ice or dust. This
makes these detectors particularly useful in
industrial applications.
Full details of the principles of operation,
electrical description, and other detailed technical
data are published in the products individual data
sheet.
Relays
Contact Ratings:
Voltage
Current
Power Terminals 5 to 8
50Vdc max
1A max
30W max
Environmental
Operating
Ambient
Temperature:
-10°C to +40°C(T4)
-10°C to +55°C(Sensor limit)
ATEX
Approval Category
II 2 G D
CENELEC / IEC
Marking EEx d IIC T6 (85°C)
- Zone 1, 21, 2 and 22
Apparatus
Certificate
Number
ISSeP 03ATEX012
IP Rating IP66
