DRD-E Flame Detector Installation Manual

2-3-0-1376/ISS1/NOV10

4 Installation

The DRD-E flame detector can be used in conjunction with the following mounting bases: YBN-R/6, YBO-
R/6R, YBO-R/6RN, YBO-R/6PA, YBN-R/6SK, and YBN-R/6RS.

A wall and ceiling mounting bracket are available if required, these should be ordered separately. Please
refer to Fig 7 and Fig 8 below.

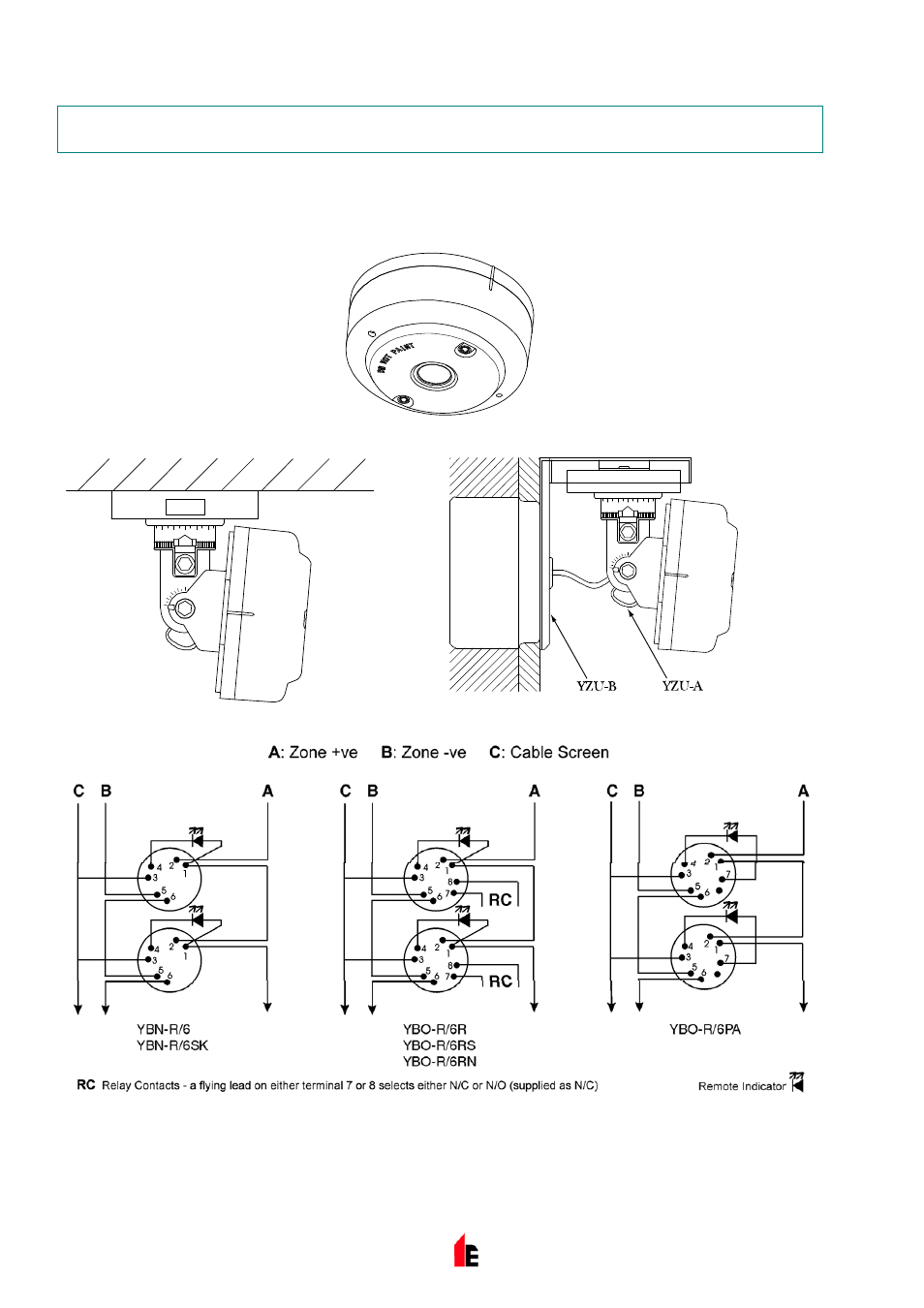

Fig 6 : Installation with Mounting Base

Fig 7 : Installation with ceiling bracket (YZU-A)

Fig 8 : Installation with wall bracket (YZU-B with YZU-A)

Fig 9 : Connection to Conventional Control Panel via CDX Mounting Bases
