Wiring

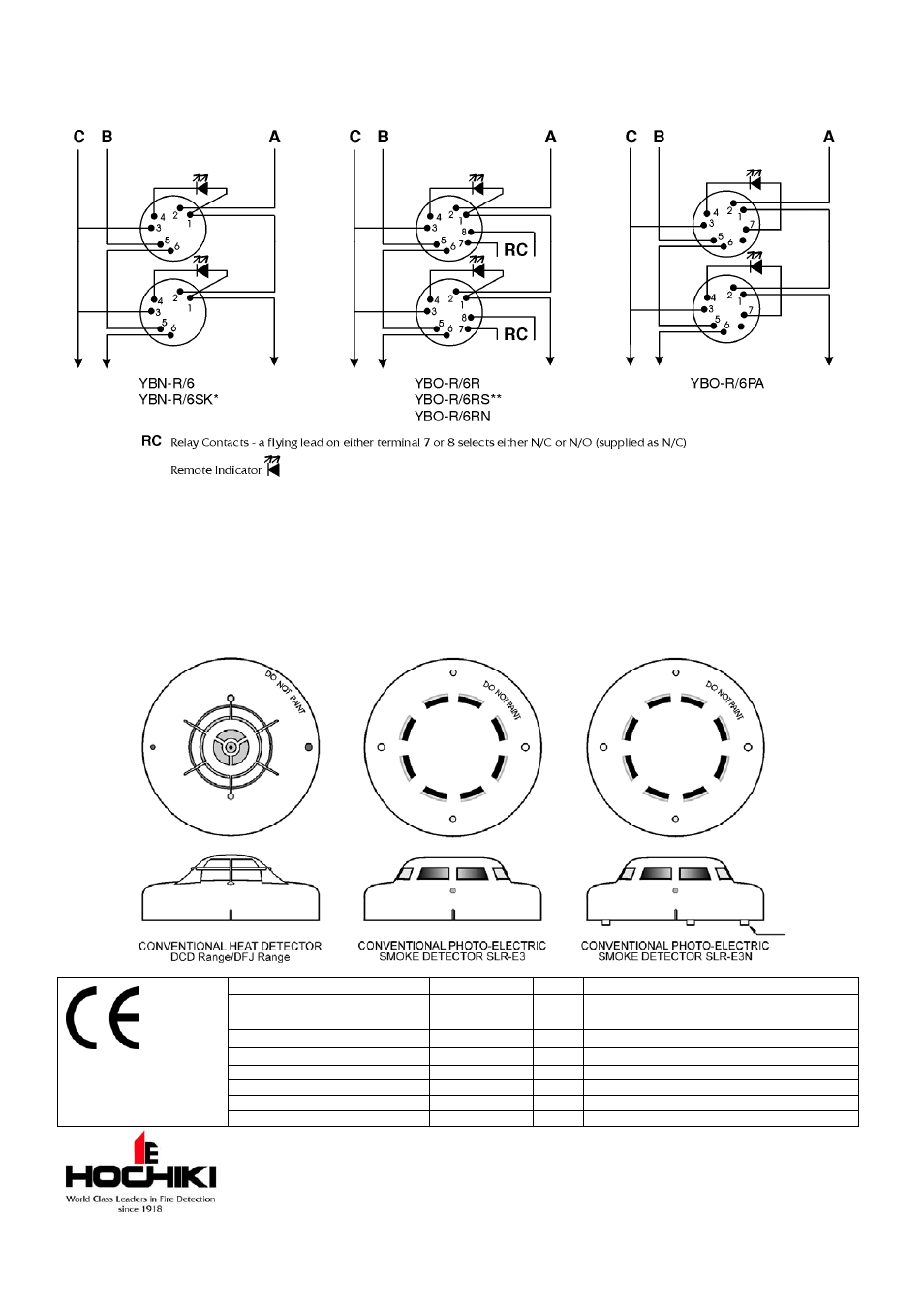

The wiring diagram for the conventional detector base should be made as shown.
A: Zone (+) B: Zone (-) C: Cable Screen
*The Schottky Diode Bases can easily be converted into non-Schottky versions by removing the Schottky diode, which is fitted between terminals 1 and 2.
**The Schottky Diode Bases can easily be converted into non-Schottky versions by cutting out and removing the Schottky diode, which is soldered on the
underside between terminals 1 and 2.
Note
The YBO-R/6RN base will automatically reset the detector every 8 - 15 seconds after it has entered an alarm
state. If the detector remains above its alarm threshold after a reset the LEDs will illuminate again. This will
continue until a reset is achieved. The relay contacts (and Remote Indicator) will not change state until the reset
is successful.
DCD-AE3
0832-CPD-0116
05
EN54-5 Point type heat detectors
DCD-CE3
0832-CPD-0117
05
EN54-5 Point type heat detectors
DFJ-AE3
0832-CPD-0118
05
EN54-5 Point type heat detectors
DFJ-CE3
0832-CPD-0119
05
EN54-5 Point type heat detectors
SLR-E3
0832-CPD-0111
05
EN54-7 Point type smoke detectors
SLR-E3N
0832-CPD-0614
08
EN54-7 Point type smoke detectors
YBO-R/6R
0832-CPD-1112
09
EN54-18 Input/Output modules
YBO-R/6RS
0832-CPD-1113
09
EN54-18 Input/Output modules
Protocol specified in TI/006
YBO-R/6RN
0832-CPD-1114
09
EN54-18 Input/Output modules
Hochiki Europe (UK) Ltd
Grosvenor Road, Gillingham Business Park,
Gillingham, Kent, ME8 0SA, England Telephone:
+44(0)1634 260133 Facsimile: +44(0)1634 260132
Email: [email protected]
Web: www.hochikieurope.com
Hochiki Europe (UK) Ltd. reserves the right to alter the
specification of its products from time to time without notice.
Although every effort has been made to ensure the accuracy of
the information contained within this document it is not warranted
or represented by Hochiki Europe (UK) Ltd. to be a complete and
up-to-date description. Please check our web site for the latest
version of this document.
Note: When
using older
variants of
those mounting
bases listed
overleaf, the
three locating
tabs on the
SLR-E3N will
need to be
carefully
removed with
pliers.
