Reversomatic CU 700 - Manual

CONTROL UNIT FOR CUSTOM RANGE HOOD
These control units are installed in custom hoods when exterior roof or wall fans are used. They feature Solid
State Speed Control plus Light Control for two 12V / 20W, G4 base halogen lights mounted on the steel housing.
F E A T U R E S
• INTERCHANGEABLE DECORATIVE MOUNTING TRIM
GRILLE PROVIDES DIFFERENT FINISH OPTIONS
• TWO 20 W HALOGEN LIGHTS FOR MULTI LEVEL
COOKTOP LIGHTING
• EASILY ACCESSIBLE WASHABLE ALUMINUM
MESH FILTER
• FULL METAL CONSTRUCTION FIRE RETARDANT
• ONE YEAR LIMITED PARTS AND LABOR WARRANTY
C US
790 ROWNTREE DAIRY ROAD, WOODBRIDGE, ONTARIO, CANADA L4L 5V3
PHONE (905) 851-6701 . FAX (905) 851-8376
www.reversomatic.com • EMAIL: [email protected]

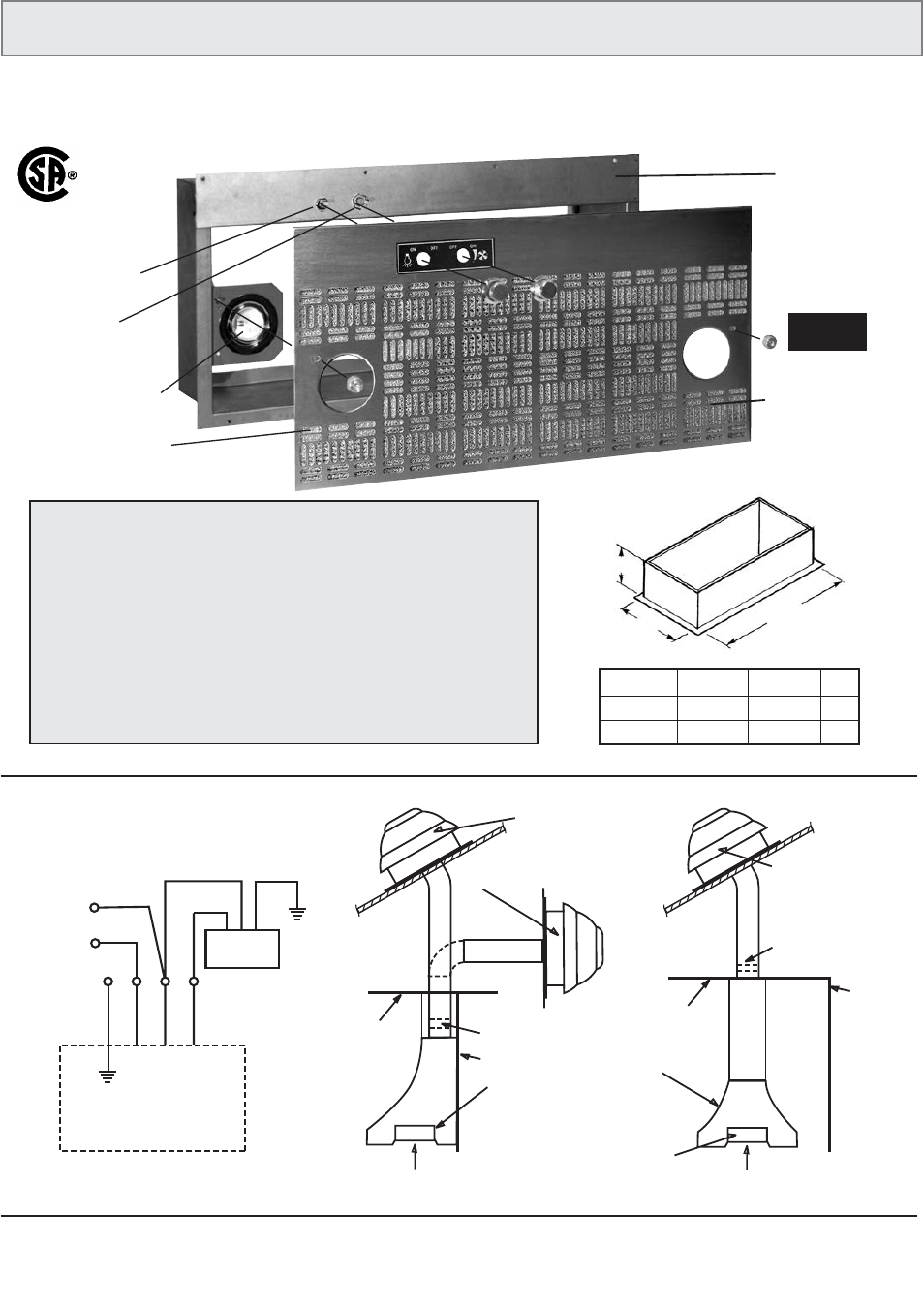

TYPICAL INSTALLATION
A
B
C
ROOF VENTILATOR
RV-400 / RV-800 / RV-1200
CEILING
BACKDRAFT
DAMPER
ISLAND TYPE
RANGE HOOD
24" TO 30" ABOVE
COOKING SURFACE
WALL
ROOF VENTILATOR
RV-400 / RV-800 / RV-1200
WALL VENTILATOR
WRV-400 / WRV-800 / WRV-1200
CEILING
BACKDRAFT
DAMPER
CONTROL
UNIT
CU-500 / CU-700
24" TO 30" ABOVE
COOKING SURFACE
WALL
CONTROL UNIT
(CU-500 / CU-700)
CONTROL UNIT
CU-500 / CU-700
GREEN
POWER
SUPPLY
120 V AC
60 Hz
ROOF / WALL
VENTILATOR
BLACK
GREEN WHITE
BLACK
WHITE RED
WIRING DIAGRAM
(CONTROL UNIT WITH
ROOF /WALL VENTILATOR)
Model A” B” C”
CU-500 22-1/2 10-1/4 5
CU-700 30 14 5
NEW
DECORATIVE
MOUNTING
TRIM GRILLE
(AVAILABLE IN
STAINLESS STEEL
OR PAINTED
WHITE / BLACK)
STEEL
HOUSING
LIGHT SWITCH
FAN SPEED
CONTROL
12V/20W, G4 BASE
HALOGEN BULB
ALUMINUM MESH
FILTER
