REMOTE VEHICLE STARTER
INSTALLATION MANUAL
Page 3

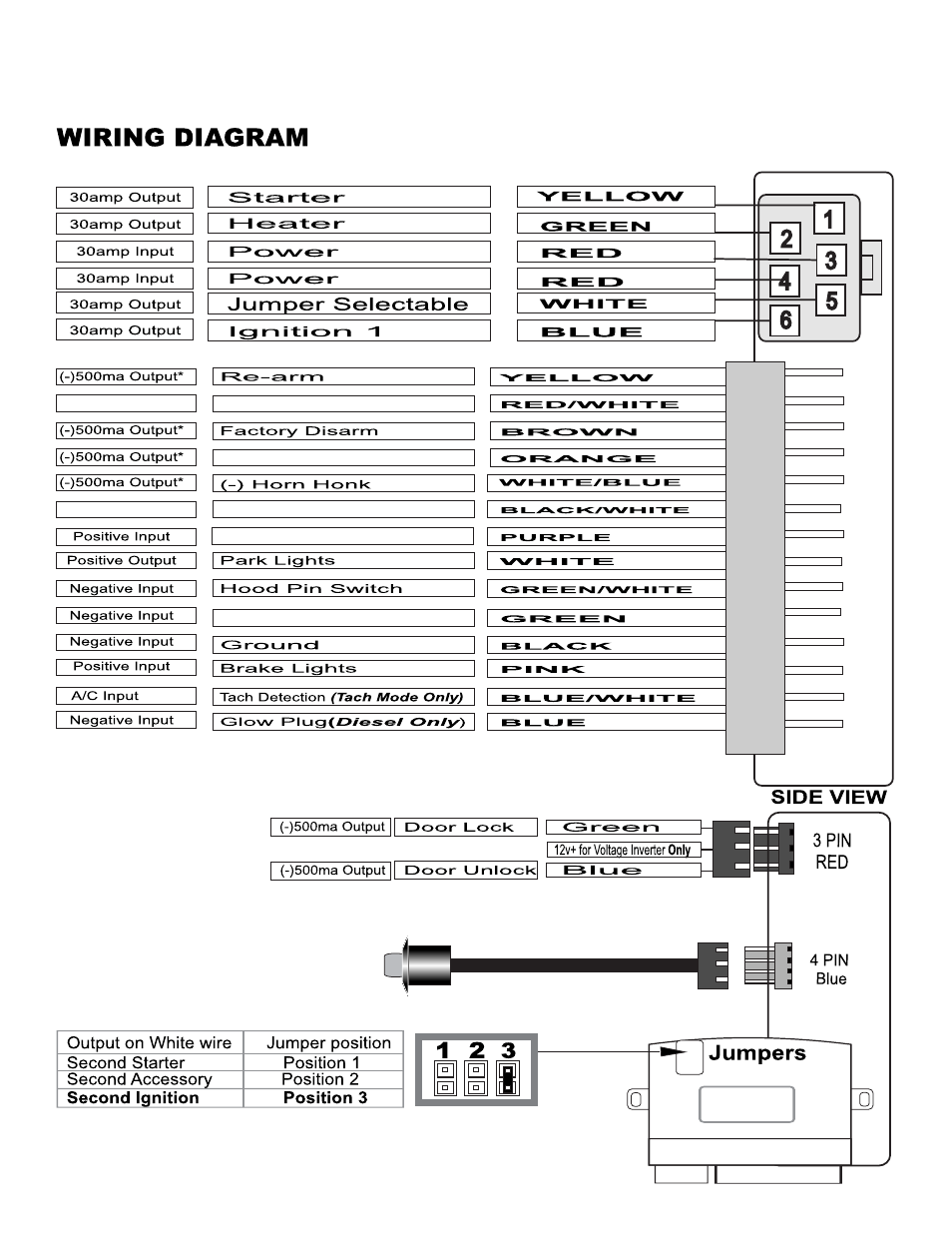

The jumpers control the output from the white wire from the six pin
harness. Place the jumpers in the following order to change the output.
Note: The default setting is second ignition.
* Connect only one of these wires for remote start activation. The input requires 2
pulses within 2 seconds to activate.
Positive Start Trigger*
Negative Start Trigger*
Not used on this model
Negative When Running
Not used on this model
N/A
N/A
Program LED/Switch
