12

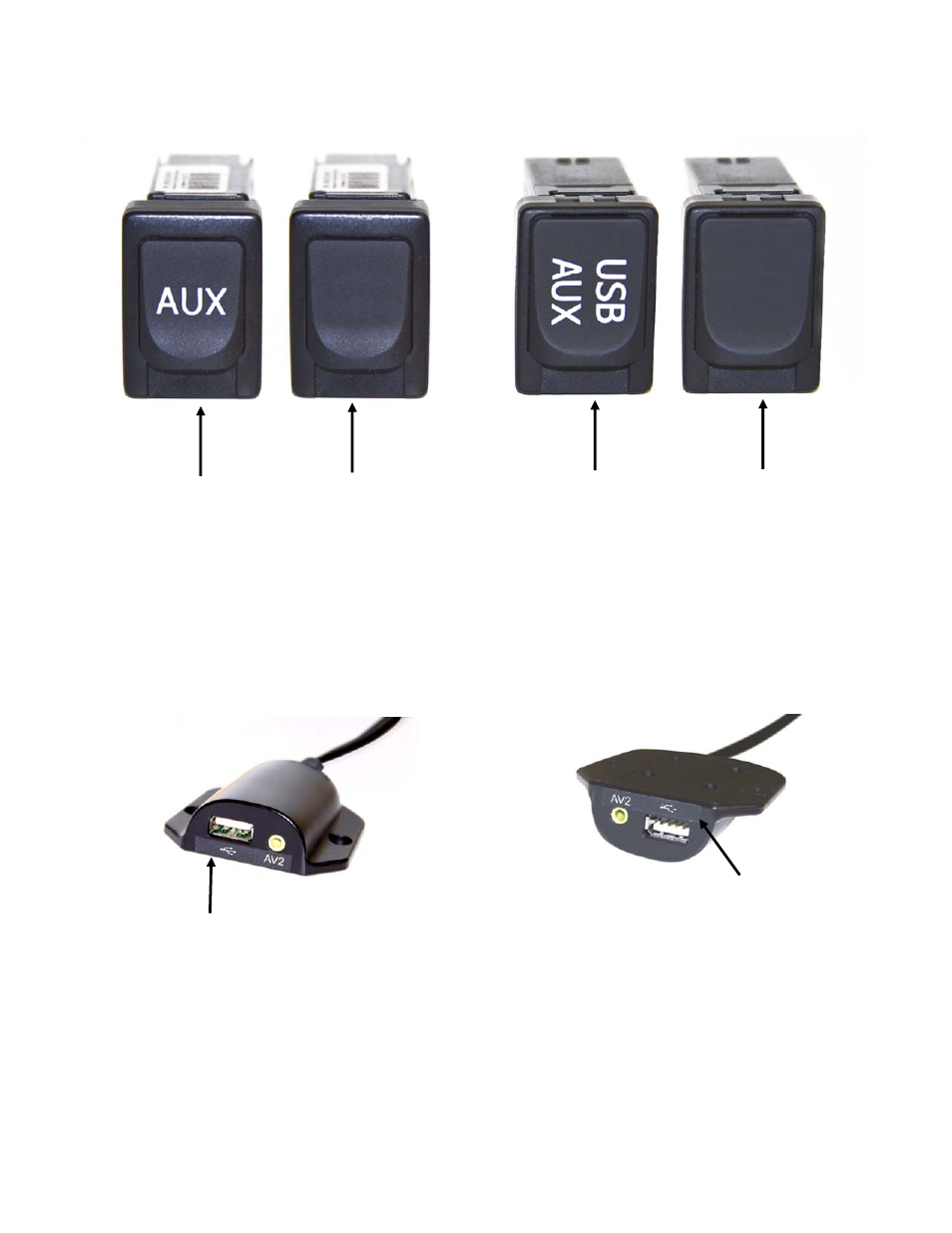

Label Placement
After the installation of the radio is complete, the factory AUX/USB port will no
longer function. Place the black ahesive sticker to cover the lettering of the original
port. Refer to illustration above.
Label
USB/AV2 Interface Module
Label
Two labels are provided for the USB/AV2 Interface module to
accommodate various mounting positions.
BEFORE AFTER
BEFORE AFTER
