Chapter 1 Introduction
Rear Panel

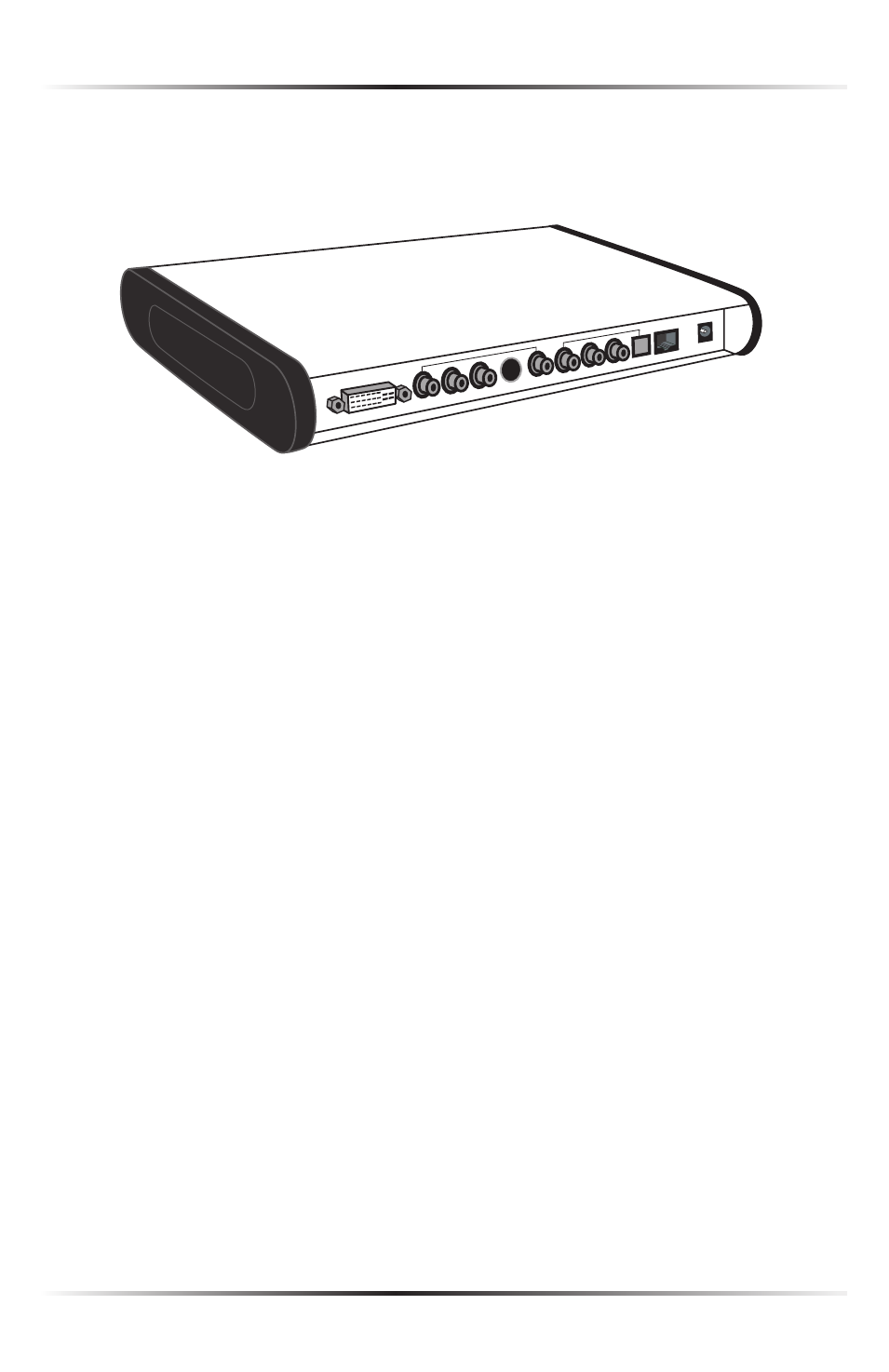

The Player has 12 ports on its rear panel, as shown in the figure below.
COMP.
S-Video
Pr
Pb
Y
DVI
L
R
S/P DIF
OPTICAL
VIDEO OUT
AUDIO OU
T
DVI Port
The DVI (Digital Visual Interface) port is used to connect the Player to a DVI-
compatible high-definition television (HDTV).
Y, Pb, Pr Ports
These three ports are used to connect the Player to monitors or televisions
requirring component video input.
S-Video Port
The S-Video port is used to connect the Player to a television or monitor using
an S-Video cable
COMP Port
The yellow COMP port is used to connect to a television’s composite input port
using an RCA video cable.
Audio Out L and R
These two ports (L is red, R is white) are used to connect to the television or ste-
reo audio input ports, using RCA audio cables.
