CLIPLIFT - User Manual and Spare Parts Catalogue
LowerIng:
• Check that there are no tools near the tractor mower.
• Press the pedal 2 to 3 times (2 and 3).
• Remove the safety support (11).
• With one hand, turn the safety knob upwards (6) and, simultaneously, with the other hand, disengage
the knurled hydraulic jack wheel to return the tractor mower to the ground.
• Unlock the safety strap (14) and release the tractor mower from the CLIPLIFT™.
Storage:
• Store the CLIPLIFT™ tools (pedal and support) in the housings provided for this purpose.
• Take the CLIPLIFT™ by the handle and move it to its storage location.
• Hook the CLIPLIFT™ on to its support (12), without forgetting to engage the safety pin (13).
• CLIPLIFT™ should preferably be stored under cover to prolong its working life.

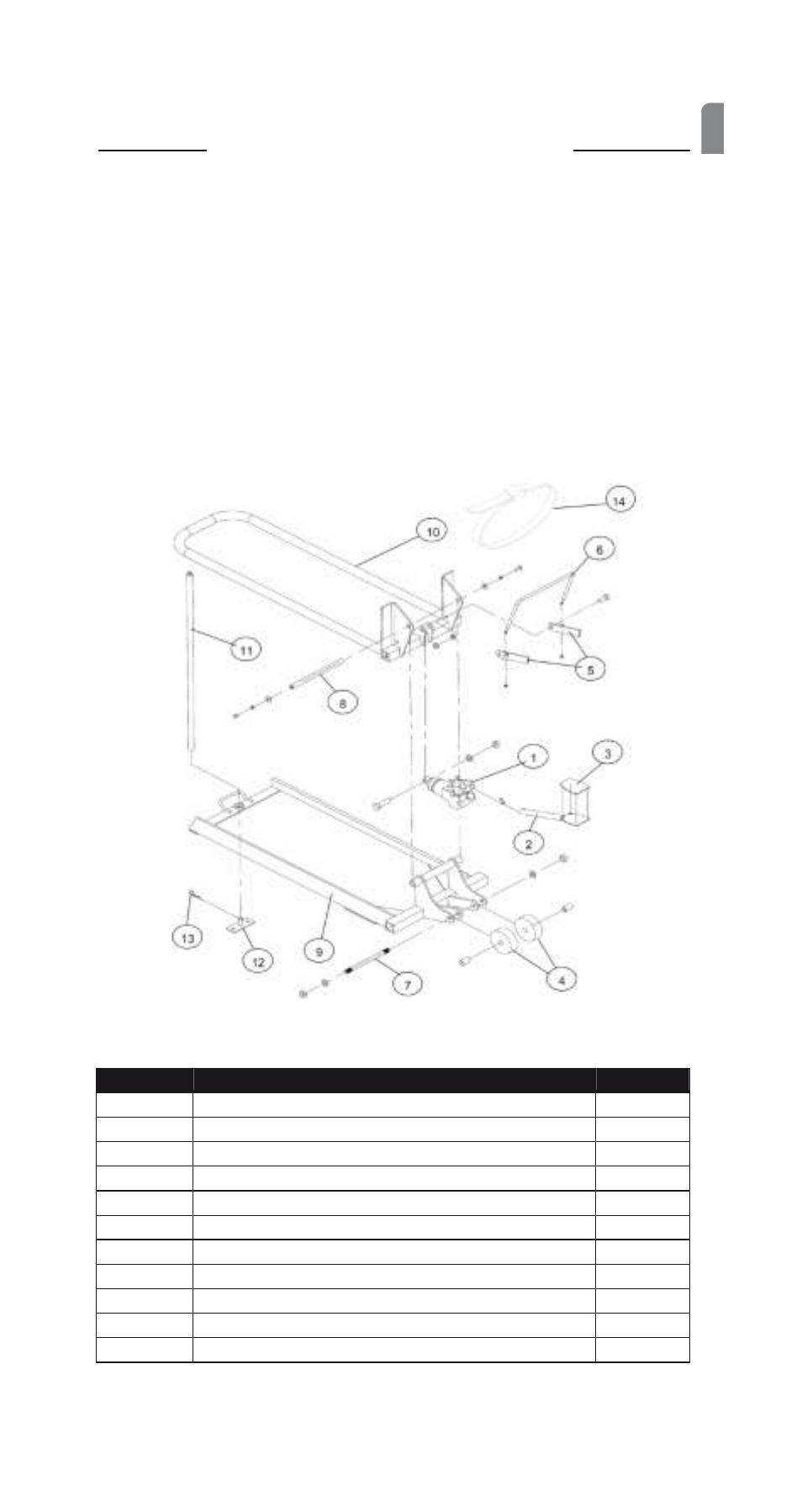

Ref. nr
Description
reference
1
Hydraulic jack
1015001
2 and 3
Jack pedal
5012001
4
Handling rollers with spacers
5015001
5 and 6
Active safety kit
5012002
7
Jack shaft with nuts and washers
4116001
8
Rotating shaft with screws and washers
4116002
9
Base frame
5013001
10
Lifting cradle
5013002
11
Safety support
4012001
12 and 13
Hook and pin
4122001
14
Safety strap
5014001
