06/10 8 51062 Rev. 2
1-2 NOTES
 Avoid placing the scale in direct sunlight or in a moist environment.
 Keep the scale dry. Failure to do so will affect operation and weight readings.
 Please provide a stable power supply.

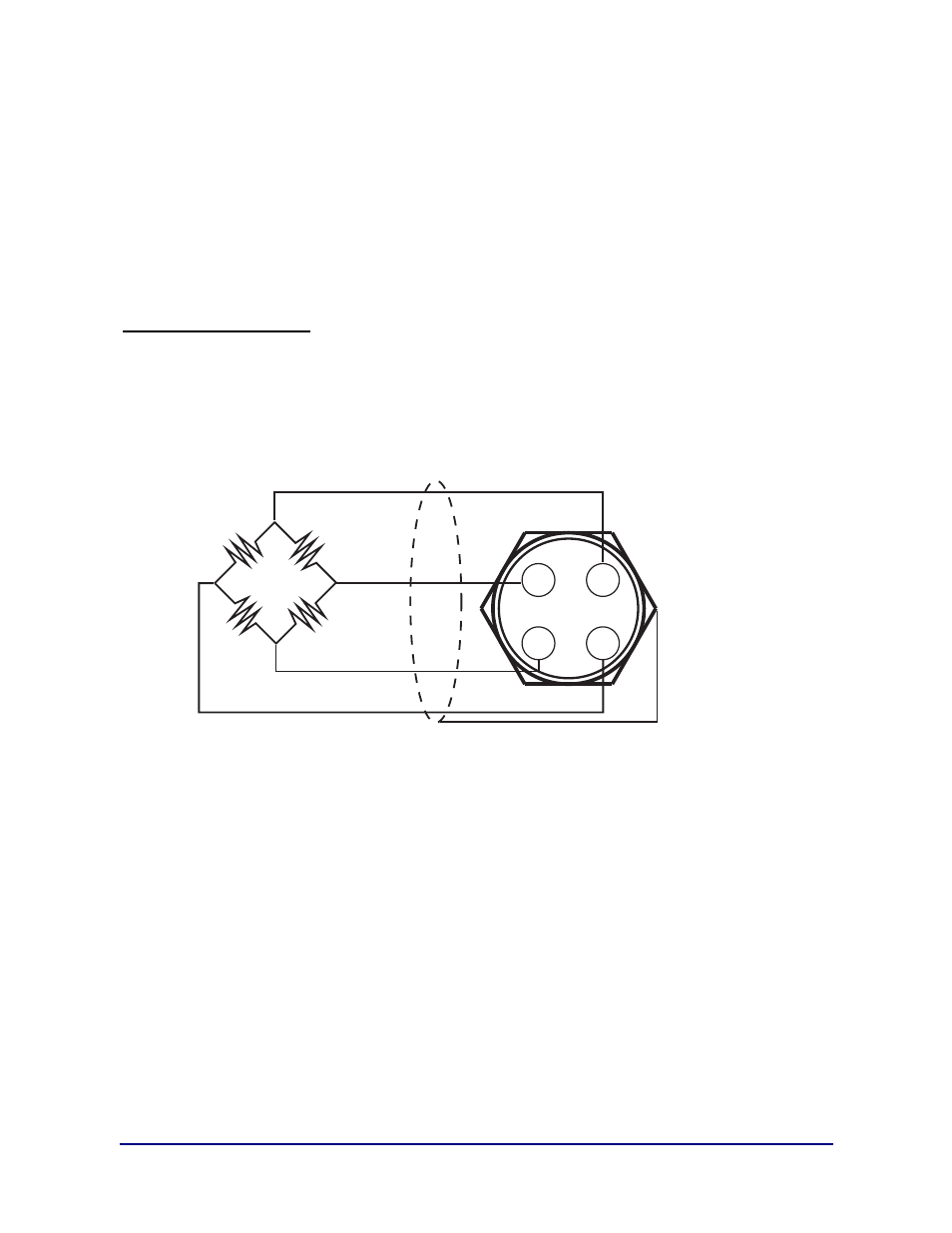

1-3 LOAD CELL SIGNAL CABLE CONNECTION
PIN SIGNAL NAME
1. Excitation -
2. Signal -
3. Excitation +
4. Signal +
2
1
3
4
Shield
SIG +
SIG +
EXC --
EXC +
