Direct Lift ROTISSERIE - Manual (Page 5)

ROTISSERIE (R3000G) 5 IN50016 Rev. B 03/30/2009

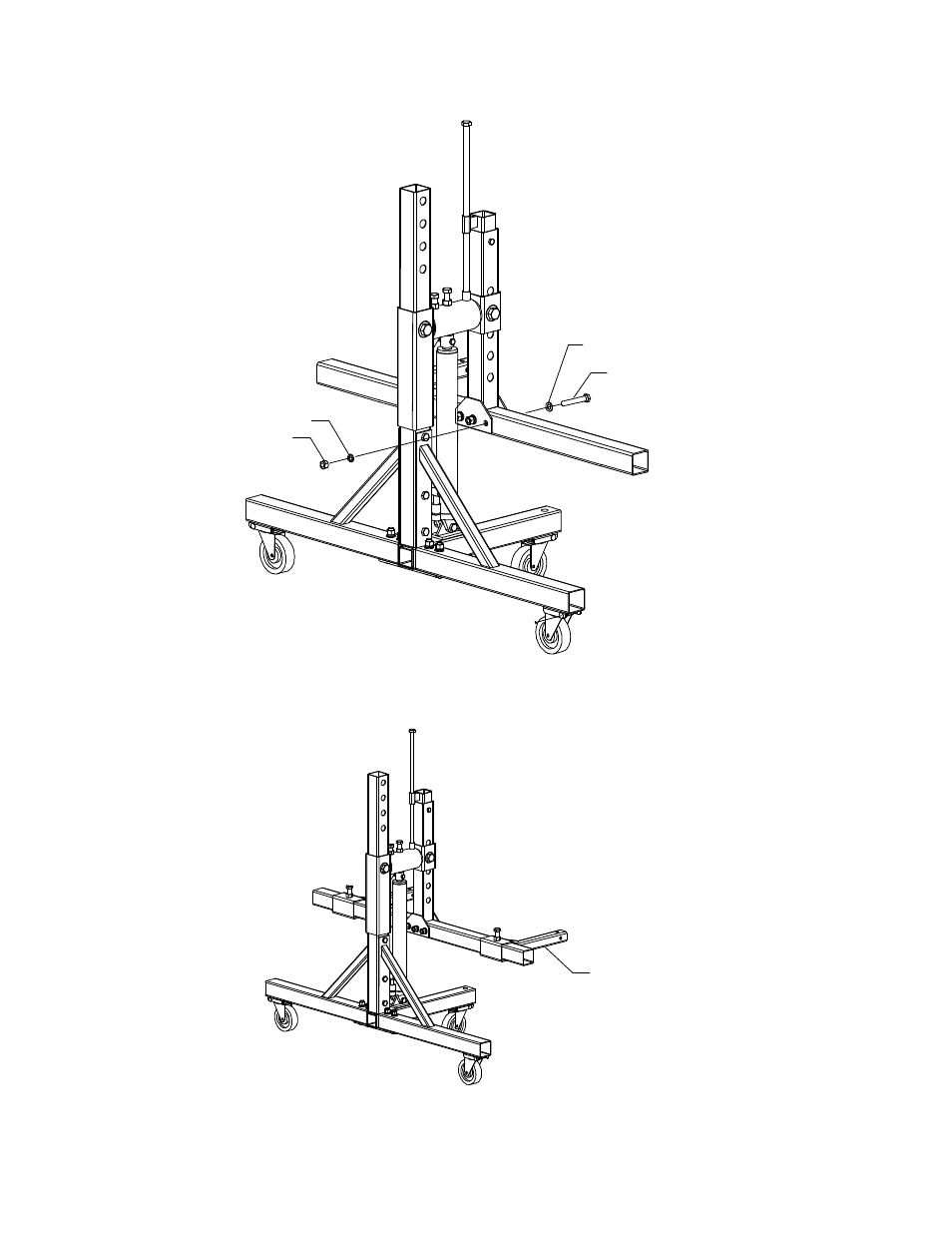

2. Install Horizontal Swing Arms as shown, Fig. 2.
M16 x 4-3/8” Hex Bolt
Ø16 Flatwasher
Ø16 Lockwasher
M16 Hex Nut
FIG. 2
3. Install Adapter Arms, Fig. 3.
Adapter Arms
FIG. 3
