8
Installation
Travis Industries
4050225
1 0 0 - 0 1 1 5 4

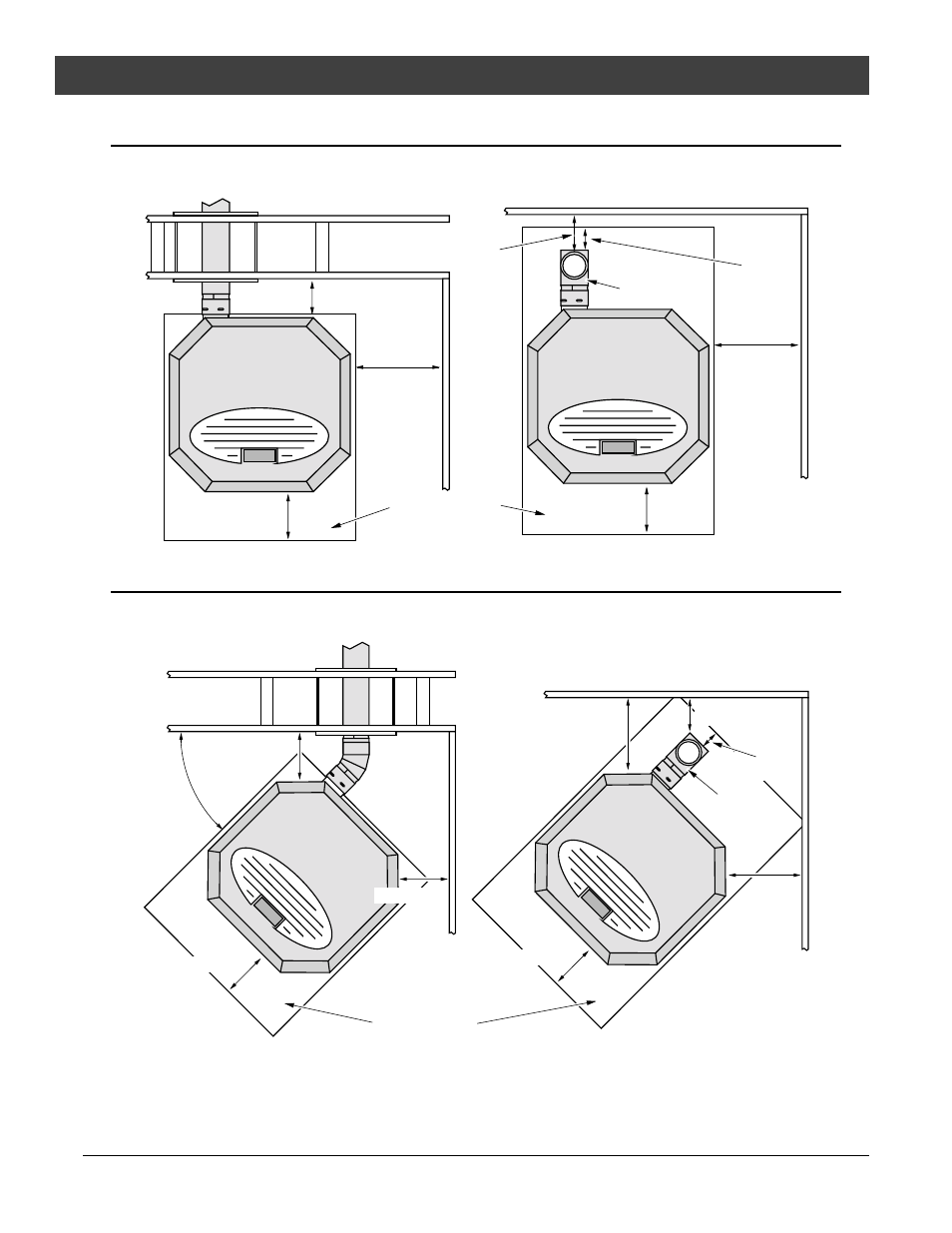

Clearances - Straight Installation
6” Minimum
3” Minimum
9” Minimum
3”
Minimum
Through the Wall Installations Interior Vertical Vents
Floor Protection
6” Minimum
2”
Minimum
9” Minimum
“Tee”
Clearances - Corner Installation
6” Minimum
Through the
Wall Vents
3” Minimum
45° Elbow
45°
3” Minimum
Interior Vertical
Vents
3”
Minimum
6” Minimum
2”
Minimum
Floor Protection
“Tee”
3” Minimum
3”
Minimum
Note: If interior vertical pellet vent is used, the clearance to the backwall is determined by the
upward-turning elbow or "Tee". It will vary in depth depending on the brand of pellet vent
used (it is approximately 5"). Before placing the heater, connect the elbow or "Tee" and
measure off the 3" clearance.
