JP13: Watchdog Timer Setting
The watchdog timer supervisory function will automatically reset USB-
4718 in the event of system failure. JP13 on USB-4718 can enable/dis-
able watchdog timer function or reset module manually.

How to Reset USB-4718 Manually
Plug the jumper to JP13 pin2-3 and then remove it, USB-4718 will reset.

NOTE: Users may restart the application programs after USB-4718 is
reset.

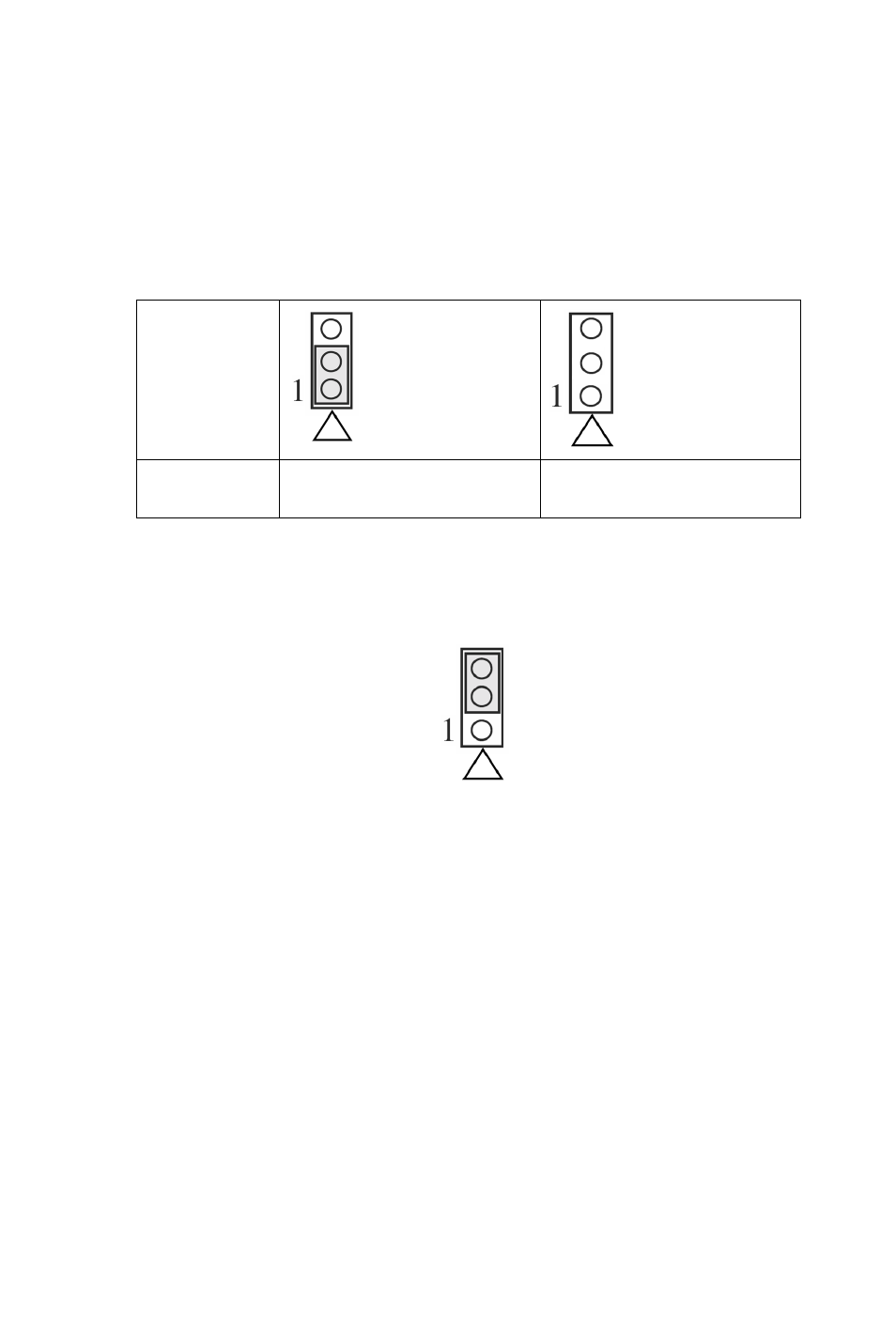

Jumper
Setting

Description

Enable watchdog timer
function (Default setting)

Disable watchdog timer
function
