WARRANTY
One year warranty on
all parts and labor and
an additional 4 year
prorated warranty on
compressor.
Details
ATC-36/48

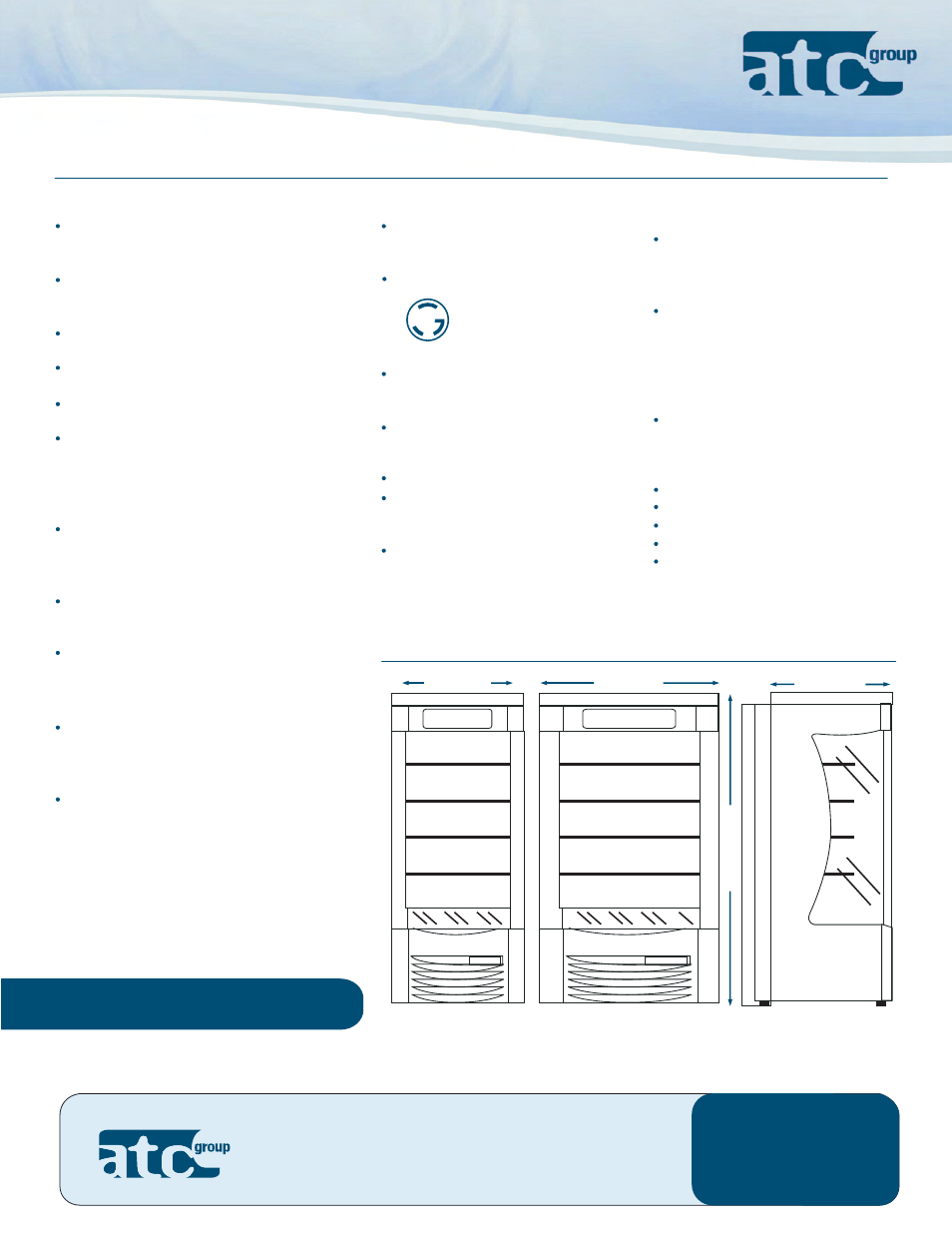

Technical Drawings
Front
ATC-36
Side
Cabinet Construction
Exterior: Galvanized metal cabinet with
impact resistant extruded plastic accent
panels – gray.
Large low-E double pane tempered
thermal glass side panels for increased
product visibility.
Interior: Epoxy powder coated steel for
increased durability and easy cleaning.
High-density, CFC-Free, polyurethane
insulation.
Manual pull down night curtain for
increased energy efficiency.
Low profile fixed wheels allow for easy
movement of unit and facilitate cleaning
of surrounding area.
Shelving
Four (4) heavy duty epoxy powder coated
steel shelves:
-ATC 36: 31 ½” x 20 ½” (800 x 521)
-ATC 48: 43 ½” x 20 ½” (1105 x 521)
All shelves are dual position allowing for
horizontal or gravity fed positions, and are
adjustable in 1” increments.
Designed to allow use of shelf pricing
strips.
Lighting
Fluorescent vertical lights mounted in
each post and horizontal overhead light
provide for maximum illumination of
products.
Utilizes T8 bulbs and an electronic ballast
for increased energy efficiency and
extended life.
36” (914) 48” (1219)
78” (1980)
33” (840)
Front
ATC-48
Electrical
Ready for connection to 208V/
60Hz single phase 20 amp
dedicated outlet.
Includes an 8’ cord and plug set.
Refrigeration System
Self-contained environmentally
friendly refrigeration system using
CFC-free R404A refrigerant.
Self-contained heated drain pan
and condensate evaporation
system.
Automatic self-defrost cycle.
Electronic temperature control
with digital readout maintains
34ºF to 41ºF (1ºC to 5ºC).
Bottom mounted refrigeration unit
slides out for easy maintenance
and service.
Recommended
Operating Conditions
This unit is best suited for an
environment where temperatures
remain below 80ºF (24ºC) and
humidity does not exceed 55%.
Open Air models should not be
installed in any area where the
air curtain will be frequently
disrupted. This includes placing
near an HVAC vent, open
doorway, or fan.
Areas with direct sunlight
should also be avoided.
Operating Conditions
Custom Graphics
Additional Shelves
Pricing Strips
3” heavy duty casters
Various Cabinet Colors
NEMA L6-20R
