Unpacking
Stainless steel recessed wall box in brushed finish for installing SMARTdri™ warm air hand dryer – compliant with
American with Disabilities Act (ADA).
Material: AISI 304 Stainless Steel
Finish: Brushed
Dimensions W x H x D: 14-1/8 ” x 25 ”x 4-3/16 ” (35.9cm x 63.5cm x 10.6cm)
Weight: 10.3 lbs (4.7 Kg)
1. Remove all packing material. Recycling is recommended.
2. Carefully remove the wall box from the shipping carton.
3. Inspect for any damage that may have occurred during transit. If the wall box is damaged, promptly inform the dealer
where you purchased it.
A. Mounting the Wall Box
Refer to Fig. 1 “Parts List and Installation Diagram
1. Place the steel wall box in the wall at the desired location, having the lower edge of the box at the following heights
from the floor. (See Table 1). The rough opening for the wall box is 13-7/16”x 24-1/16”.
2. Allow opening in the wall to correspond with hole on the wall box in order to provide for easy access of conduit.
3. Mount wall box in the opening. Fasten wall box to stud with No. 10 wood screws. (Provided)
4. Run conduit from distribution panel to wall box. To limit voltage drop for efficient operation use AWG 12 wire or larger
as required by local electrical code.
Mounting Dryer in Wall Box
1. Disconnect the power source.
2. Use the security hex key supplied to turn the cover mounting screws clockwise to remove the cover from the dryer.
3. Place the hand dryer base on the wall box.
4. Fasten the base to the wall box, using provided #10 flat washers (4) and #10-24 hex nuts (4)
5. Connect the dryer to the power source.
6. Replace cover, turn screws counter-clockwise making certain not to over-tighten.
General Specifications
Description
Installation
Recommended Mounting Heights from Floor to Box Bottom Edge in. (cm.)
Men’s washrooms 37 (94)
Women’s washrooms 35 (89)
Children’s washrooms, ages 4-7 23.0 (58.5)
Children’s washrooms, ages 7-10 27.0 (68.5)
Children’s washrooms, ages 10-13 31.0 (78.5)
Children’s washrooms, ages 13-17 35 (89)
Handicap Mounting Height 28 (71)
Table 1

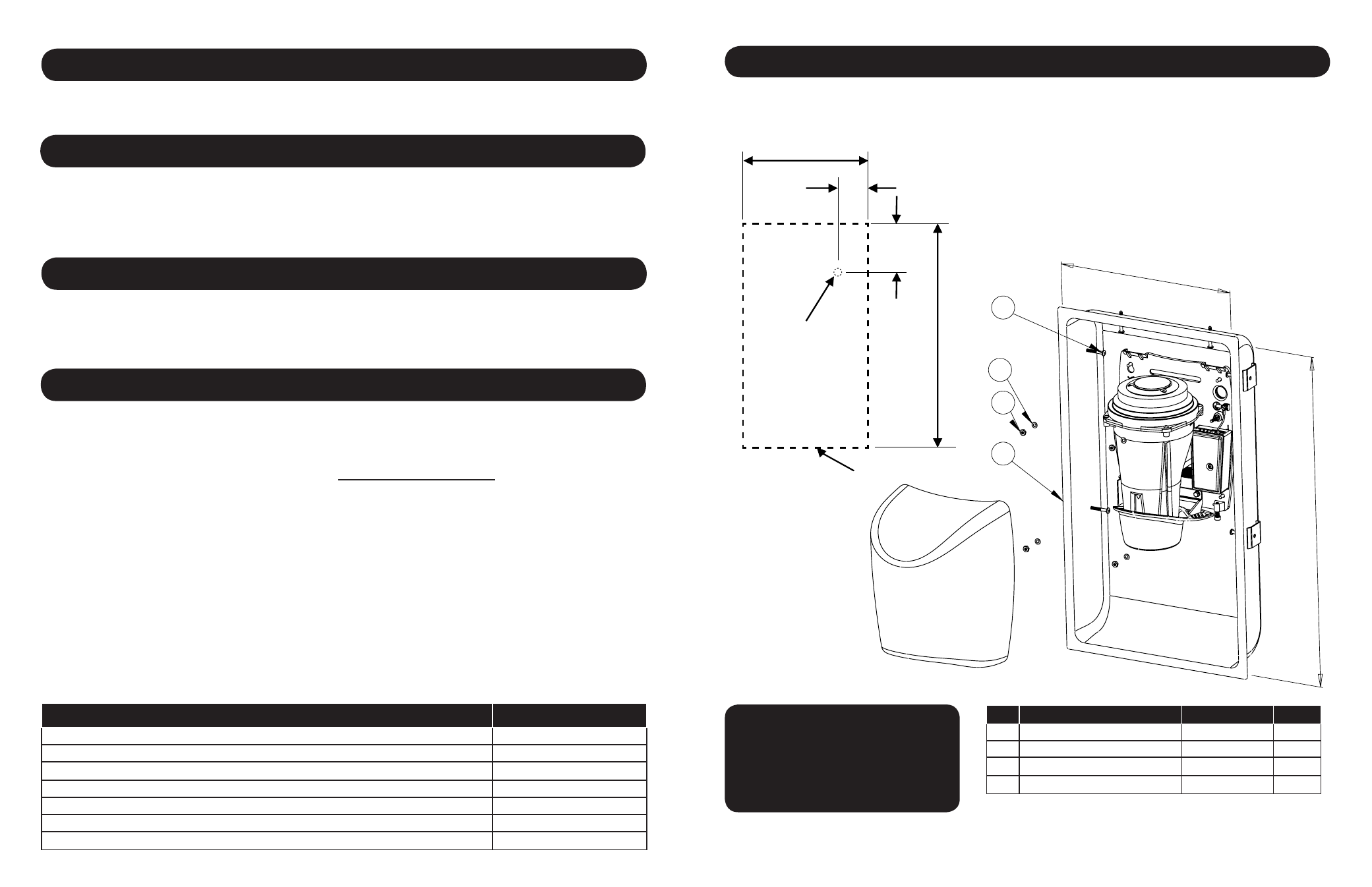

Parts List And Installation Diagram
For Repair Parts, visit www.WorldDryer.com
Please provide following information:
- Model number
- Serial number
- Part description and number shown in
parts list
# Description Part Number Qty
1 Wall Box 17-10016 1
2 Wood Screw #10 46-93360 6
3 Flat Washer #10 59-0818092 4
4 Hex Nut #10-24 46-10020 4
Rough Opening
13-7/16 "
gni
ne
p
O
hg
uo
R
61
/1-
42
4
3
2
1
Fig. 1
13 - 7/16”
Rough Opening
3-1/4”
Outline -- Rough Opening
5-3/8”
24-1/16”
Rough Opening
Electrical knock-out
Location
