World Dryer AirSpeed - Manual (Page 2)

92-MT011 Rev01
Certifications
Warranty
Placement Instruction
• Hand dryers should be spaced at least 2 feet apart, near but not over the wash
basin
• In congested areas, dryers should be located to create a flow from wash basin to
dryer to exit
• No Touch should be mounted at least 18” above or away from reflective surfaces
which may interfere with the automatic sensor operation.
• Dryer Quantity Recommendation:
Average Traffic: 1 dryer per 2 wash basins
Heavy Traffic: 1 dryer per wash basin
Industrial 54” Circular wash fountains: 4 dryers per sink
• Recommended mounting heights from floor to dryer bottom edge
Installation Guide
• No Touch & AirSpeed hand dryers require a dedicated circuit with a maximum
rating of 20 amps and must be properly grounded
• GFI circuit protection is recommended
• One side of dryer should be mounted to a stud to minimize noise
Men’s washrooms 46” (117 cm)
Women’s washrooms 44” (112 cm)
Children’s washrooms, ages 4-7 32” (81 cm)
Children’s washrooms, ages 7-10 36” (91 cm)
Children’s washrooms, ages 10-13 40” (102 cm)
Children’s washrooms, ages 13-17 44” (112 cm)
Handicap Mounting Height 37” (94 cm)
5 year limited warranty

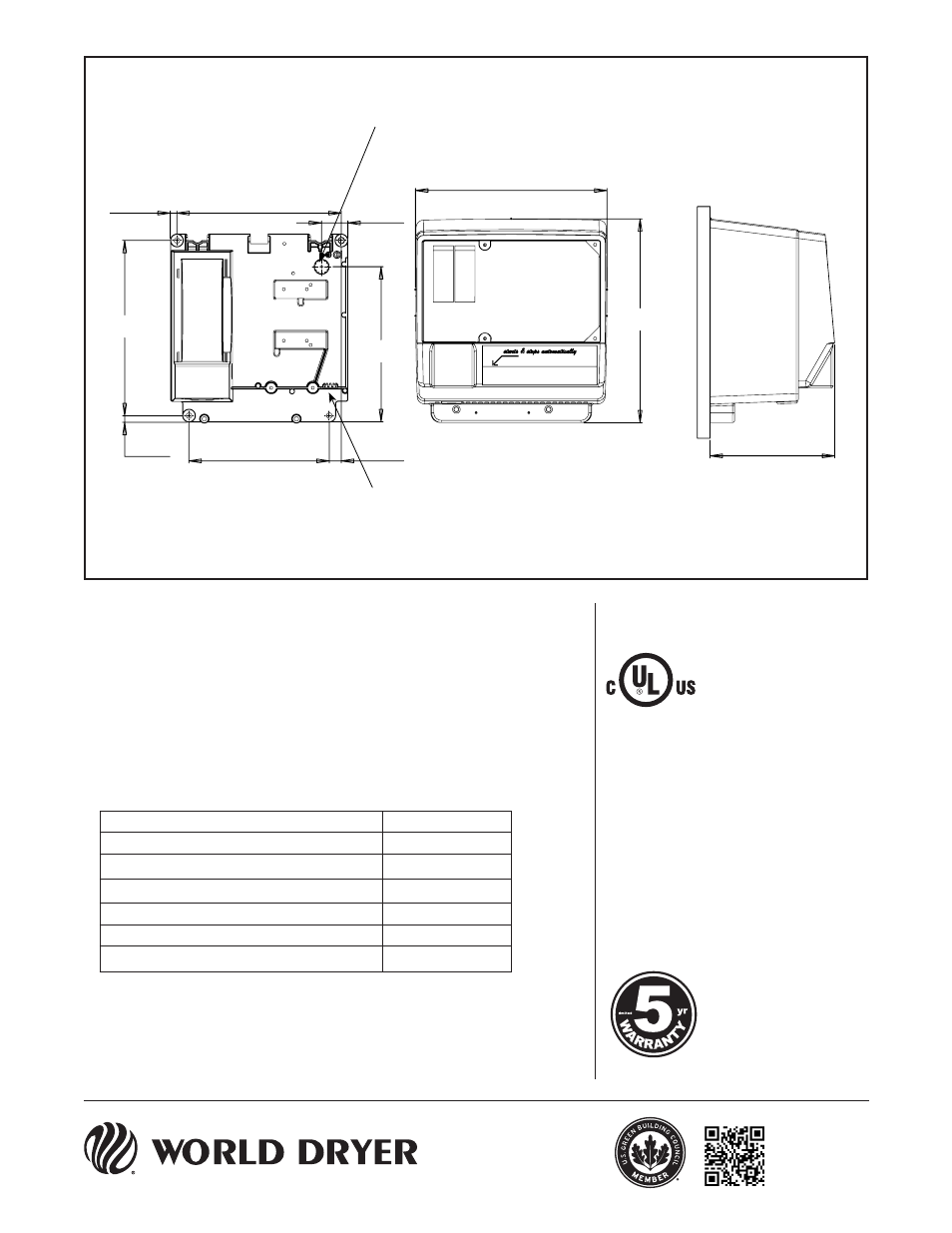

8.0
(203 mm)
9.4
(239 mm)
0.7
(18 mm)
10.0
(254 mm)
0.4
(10 mm)
0.4
(10 mm)
8.8
(225 mm)
1.5
(38 mm)
11.6
(295 mm)
10.9
(277 mm)
7.1
(180 mm)
FACING WALL
Thru wall wiring access
Surface wiring access
5700 McDermott Drive
Berkeley, IL 60163 U.S.A.
800-323-0701
www.worlddryer.com
