Andrew 5.6-Meter ESA User Manual
Page 20
Step 7
Step 8
20

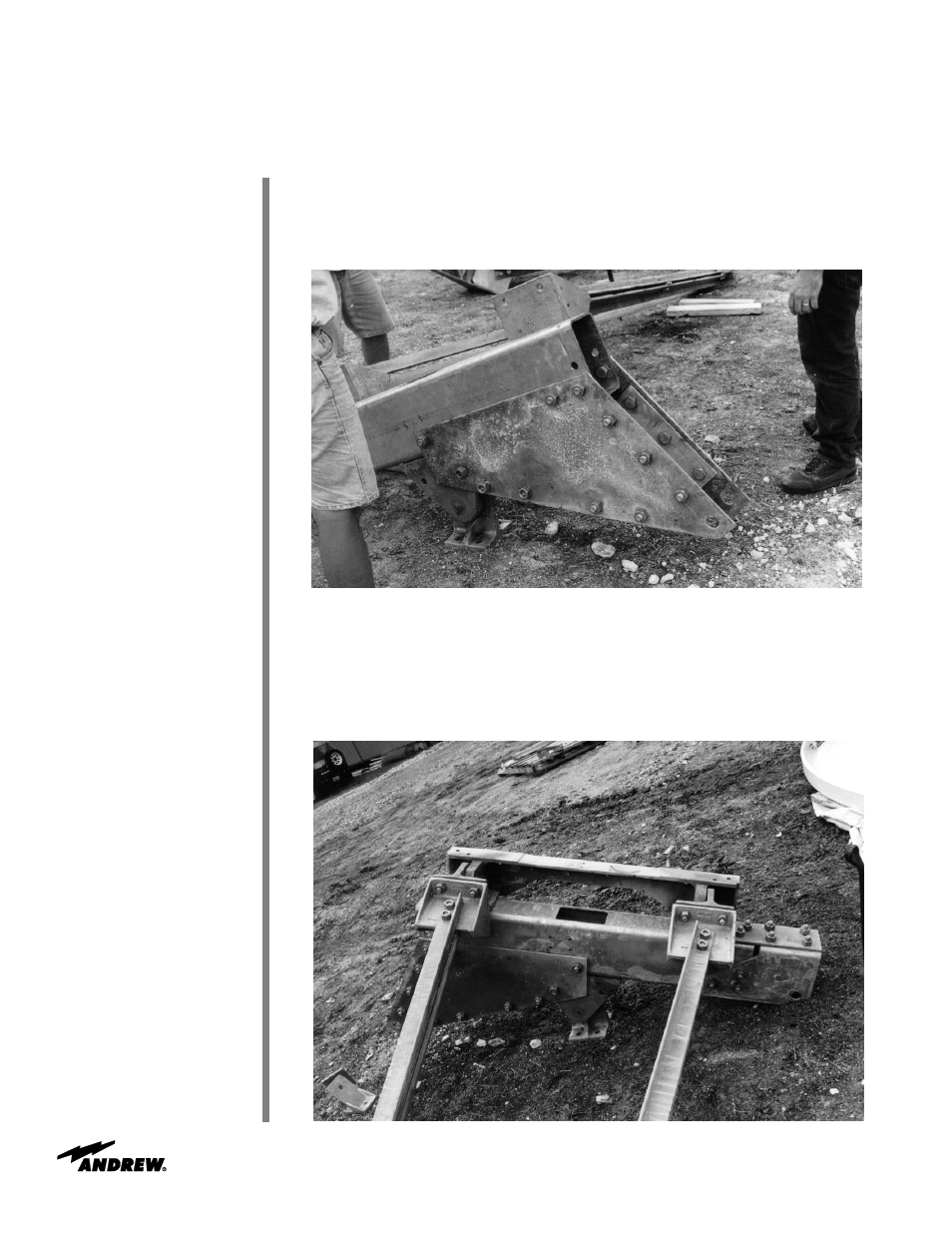

Attach second 201488 outrigger plate to 201487 panning frame assembly as shown in
Figure 19.
•
Use 7/8 x 2-1/4 in (57 mm) hardware
•
Insert bolts from inside assembly to outrigger plate
Installation Procedures
Figure 19
Attach 201407 elevation axis assembly to 201487 panning frame assembly and 201295
joint assemblies as shown in Figures 20 and 21.
•
Use 7/8 x 2-1/4 in (57 mm) hardware
•
Insert bolts from elevation axis assembly to panning frame assembly and joint assem-
bly
Figure 20
