AudioSource AMP Three - Manual (Page 3)

Amplifier Power Output . . . . . . . .150 watts per channel
400 watts monobridged
Total Harmonic Distortion . . . . . . . . . . . . . . . . . .<0.04%
Intermodulation Distortion . . . . . . . . . . . . . . . . . <0.04%
Frequency Response . . . . . . . .20 Hz to 20K Hz, ±0.5 dB
Signal to Noise Ratio . . . . . . . . . . . . . . . . . . . . . .110 dB
Input Sensitivity . . . . . . . . . . . . . . . . . . . . . .0.8 V (Line)
Input Impedance . . . . . . . . . . . . . . . . . . . .30K
Ω
(Line)
Headroom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2dB
Functions . . . . . . . . . . . . . . Mono Bridging (Rear Panel)
Auto/Manual Power Switch (Rear Panel)
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . .Line (RCA) In
Outputs . . . . . . . . . . . . . . . . . . .Speaker A (Left, Right),
Speaker B (Left, Right), Line Out/Thru (RCA)
Dimensions . . . . . . . . . . .16 1/2"W x 4"H x 13 1/4"D
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28lbs., 5oz.
AMP Three Specifications
Design and specifications are subject to change without notice.
Enjoy your new purchase. This manual provides detailed diagrams and instructions for setting up your
equipment. Our commitment to your satisfaction doesn't end there. We also offer friendly, toll-free assistance.
1-800-HELP-115

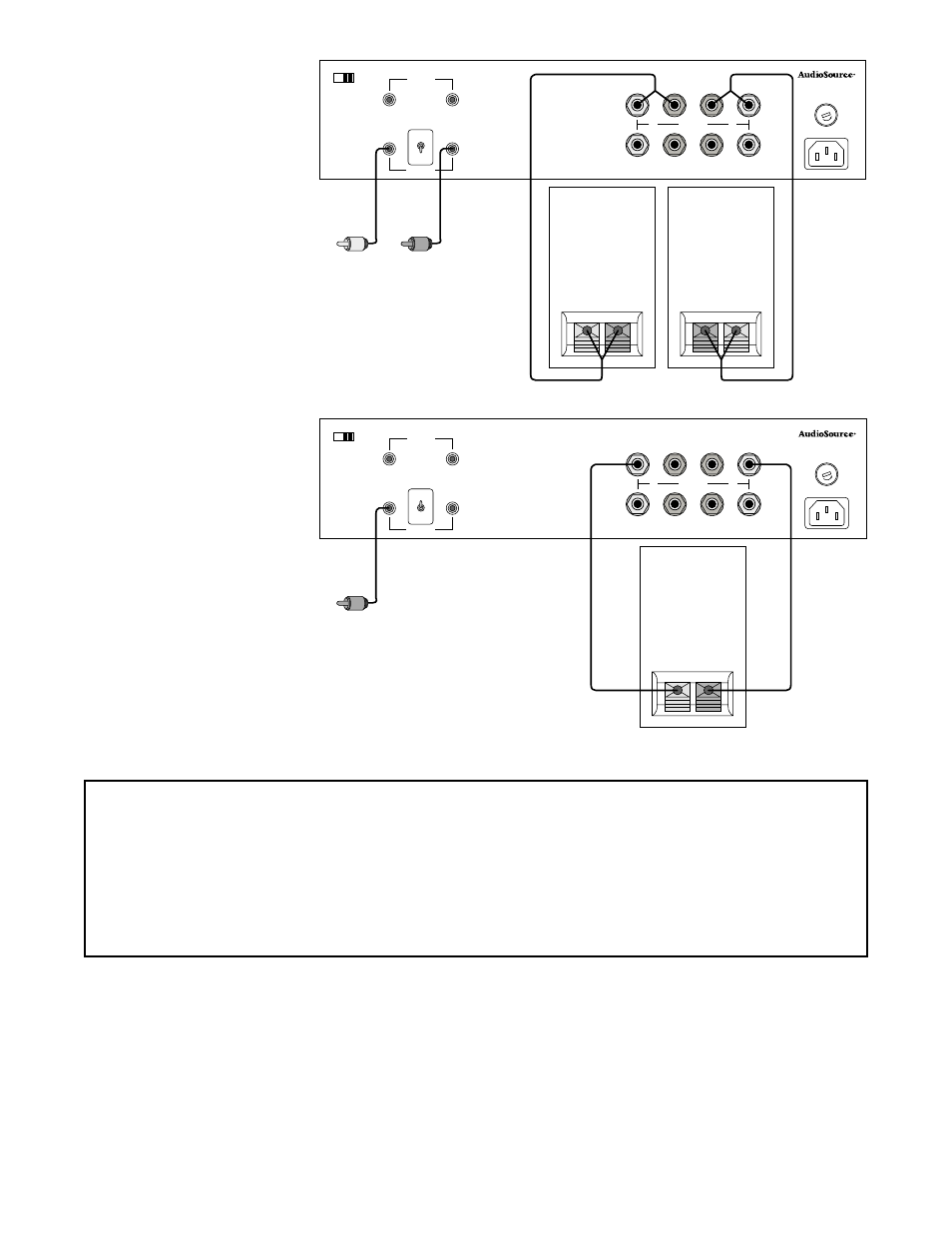

Stereo Setup
In this configuration,
the bridging switch is off for
stereo operation. Connect the
line out jacks from a stereo
signal source to the line in
jacks of your AMP Three.
Next, connect your speakers
to the terminals marked
Speaker A (observing proper
polarity: red for "+", and black
for "-"). Connect a second pair of speakers
to the terminals marked Speaker B. Select between
the A and/or B speakers using the front panel speaker
selector buttons.
Mono Setup
In this configuration, the
bridging switch is on. Connect
the line out from a signal
source to the right line in of
your AMP Three. Connect
your mono speaker to the
terminals of your AMP Three,
following the example in the
diagram opposite. Use the
right level control on the front
panel to adjust the volume.
