6. Breaker

This breaker is used to protect the unit in replacement of fuse. Press it to reset .

7. AC Inlet

This connector is meant for the connection of the supplied main cord. Do not insert the power cord into
this unit until voltage has been correctly set .Do not plug the power cord into the mains until the voltage
has been correctly set .

8. Output Connectors

The Output Connectors include the Speak-on jacks and Binding post terminals, you can use the specific
Output connectors according to the actual application circumstance.

Be careful to connect the Output Connectors so as not to occur any problem.

Caution

:Turn off the unit before connecting the Output Connectors so as to avoid any electric shock!

9. Balanced Input Connectors

The Input Connectors include the balanced XLR servo connectors and 1/4"TRS phone jack .For the

extension to another amplifier, connect these jacks to another amplifier input jacks.

The MACRO 830/1400/2400 Professional Stereo Amplifier presents three operating modes:

In this mode ,Channel A and Channel B operate independently (as a conventional stereo amplifier).

The Channel A input signal will be output from the Channel A output connectors, and the Channel B input signal
will be output from the Channel B output connectors.

- Parallel Mono Mode

In this mode, the Channel A input signal will be output from the output connectors of both Channels ,detail wiring
diagram you can refer to Chapter5.

In this mode, the Channel A input signal will be output from the Bridge output connectors, detail wiring diagram
you can refer to Chapter5.

4. Level controls for CHANNEL A, B

These level Controls are used to adjust the output signal level, you'd better adjust them properly to avoid any
distortion .

5. Protection LED

This red LED indicator lights up when the thermal-protection system is working ,no signal is output during this

protection period, and this means any overheating occurs inside the unit (the critical temperature is 80

),

you must take actions to avoid this overheating ,e.g. :speed up the air circulation, decrease the signal level ...

If the problem is corrected, the protection systems deactivate automatically ,this LED eliminates ,and normal

amplifier operation is resumed .

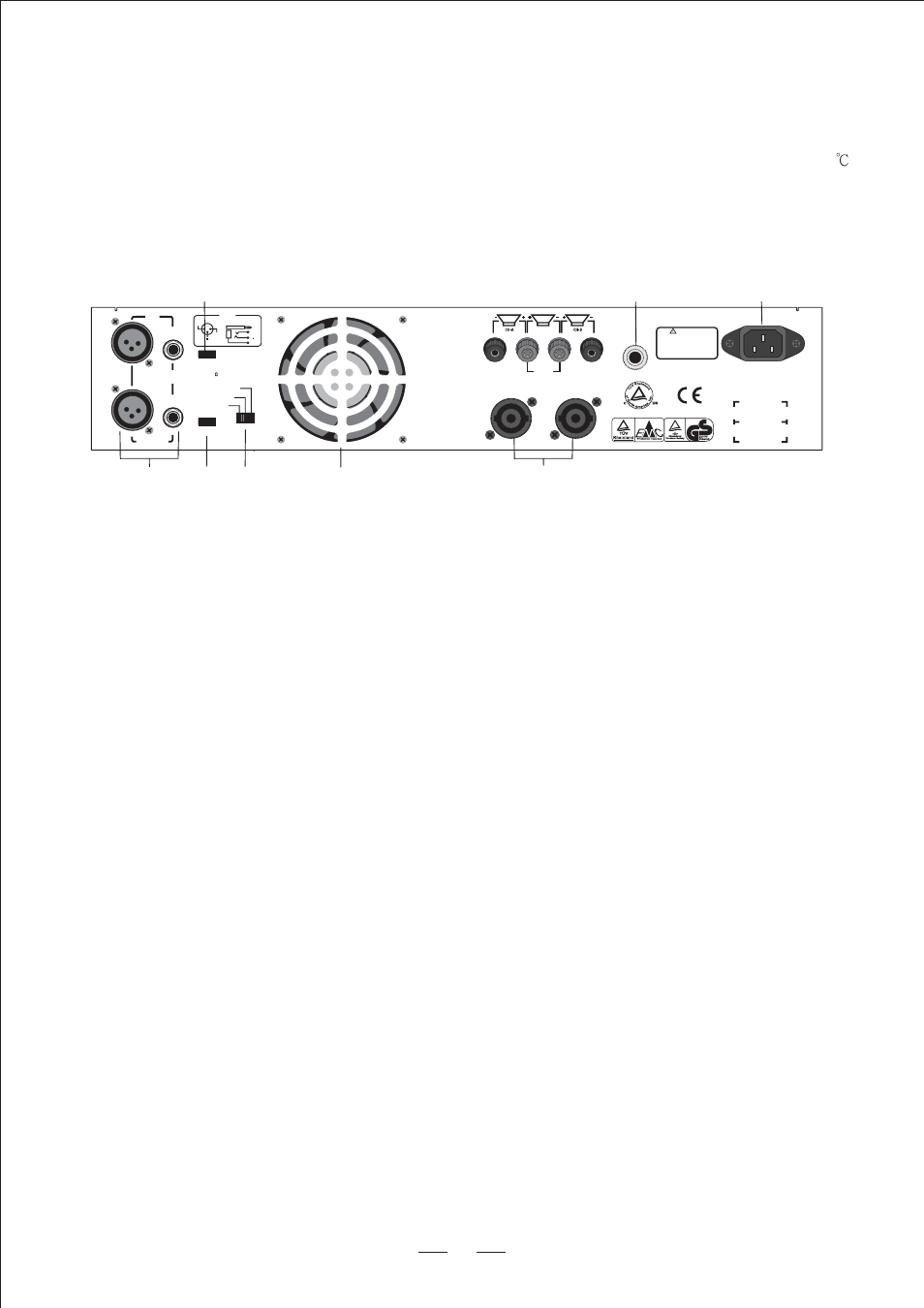

3.2. The Rear Panel

Some large subsonic frequencies are present in the input signal and these can damage the consequent

While on, the clip limit function specific to this machine keeps fixed output when the output exceeds the
Maximum of the machine to protect its circuits. While off, there is no such limit

10. Clip Limit Switch

11.Mode Selector

- Bridged Mode

- Stereo Mode

12.LF 30Hz Filter

11

8

9

10

13

6

12

7

INPUT

CONNECTION

1

2

3

(+)

(GND)

BREAKER

BRIDGED

MONO

CHANNEL A

CHANNEL B

CH-B

CH-A

BRIDGED INPUT

LINE

BALANCED

INPUT

OFF

LF 30HZ

FILTER

LINE

ON

OFF

ON

CLIP LIMIT

BRIDGED

STEREO

PARALLEL

(MONO)

1.15V/20K

( )

SRT

T(+)
R( )
S(GND)

SERIAL

MODEL
