3
.
107【W】X 183【H】X 55【D】mm
Call
Speaker
Name Plate
Microphone
High Intensity Lights
123456
Connection Terminals
Camera
Microphone
Power Indicator Light
Talk/Intercom Door Release Monitor speaker P
ow
er
S
oc
ke
t
Gate Release
1. IR distance approx 3m
2. Automatic gain control
3. Working temperature: -20°C~50°C
4. Resolution: More than 420TVL
5. Surface camera dimension:
Without rain hood:
98(W) x 173(H) x 35(D) mm
With optional rain hood:
105(W) x 183(H) x 55 (D) mm
6. Flush camera dimensions:
Plate: 131(W) x 190(H) x 2(D) mm
Wallbox: 111(W) x 170(H) x 45 (D) mm
7. Door lock voltage output:
12VDC 500mA
1. FEATURES
1. 21mm slim indoor monitor with touch buttons
2. Weather and vandal resistant outdoor camera
3. 7” LED screen, no radiation, low power consumption and high definition.
4. Hands free communication to door.
5. Hands free internal paging communication to monitors
6. Surface touch function.
7. Unlock two doors respectively.
8. Monitoring the outside of house.
9. Fourteen polyphonic melodies.
10. Ring volume, talking volume, chroma and brightness adjustable.

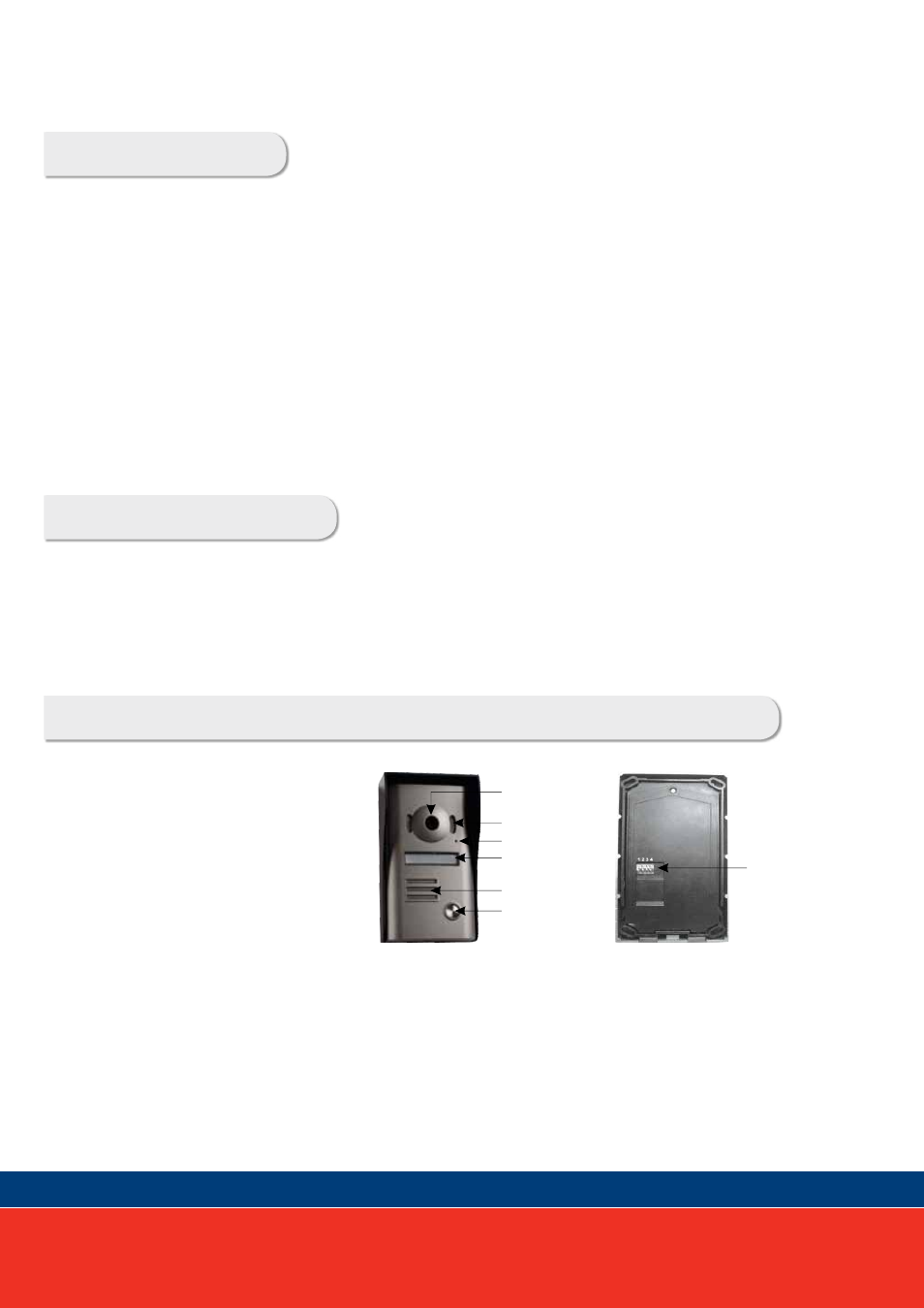

3. OUTDOOR CAMERA SPECIFICATIONS
2. KIT COMPONENTS
• One indoor monitor • One outdoor camera
• One adapter • One bracket for indoor monitor
• One Rain Hood
(surface mount kit only)
• Screws & Accessory Pack
