STRATEGY SERIES AMPLIFIER
MODEL AA35
AA35
POWER OUTPUT
Max. Average Power @ 50Hz-20kHz with .5% THD (10-80kHz fi lter)
8Ω, 1kHz, 0.5% THD
35W RMS
TRANSFORMER OUTPUTS
25V 35W RMS
70.7V 35W RMS
8Ω 35W RMS
FREQUENCY RESPONSE
50Hz-20kHz
THD+N
.5% or less, at 1kHz, rated output
.1% or less, at 1kHz, 5W output
SENSITIVITY
Input 1 Mic .316 ~ 3.16mV (-50 ~ -30dBV)
Input 1 Telephone/Line 316mV (-10dBV) 10kΩ (optional 600Ω transformer available)
Input 2/3 316mV (10dBV) 10kΩ
OUTPUTS
Main: Transformer coupled, balanced, 8Ω, 25V, and 70.7V
Zone 2- 8Ω Unbalanced 1W
Zone 2- 600Ω Balanced 1.5V
OUTPUT REGULATION
Less than 2dB, no load to full load
SIGNAL TO NOISE RATIO
Mic >55dB
Line >55dB
Telephone >55dB
Input 2/3 >75dB
TONE CONTROLS
Bass ±10dB @ 100Hz
Treble ±10dB @ 10kHz
INDICATORS
Power, signal, peak
POWER CONSUMPTION
90W
DIMENSIONS
8.27" x 3.66" x 10.87" (210mm x 94mm x 276mm)
WEIGHT
10.2 lbs (4.64kg)

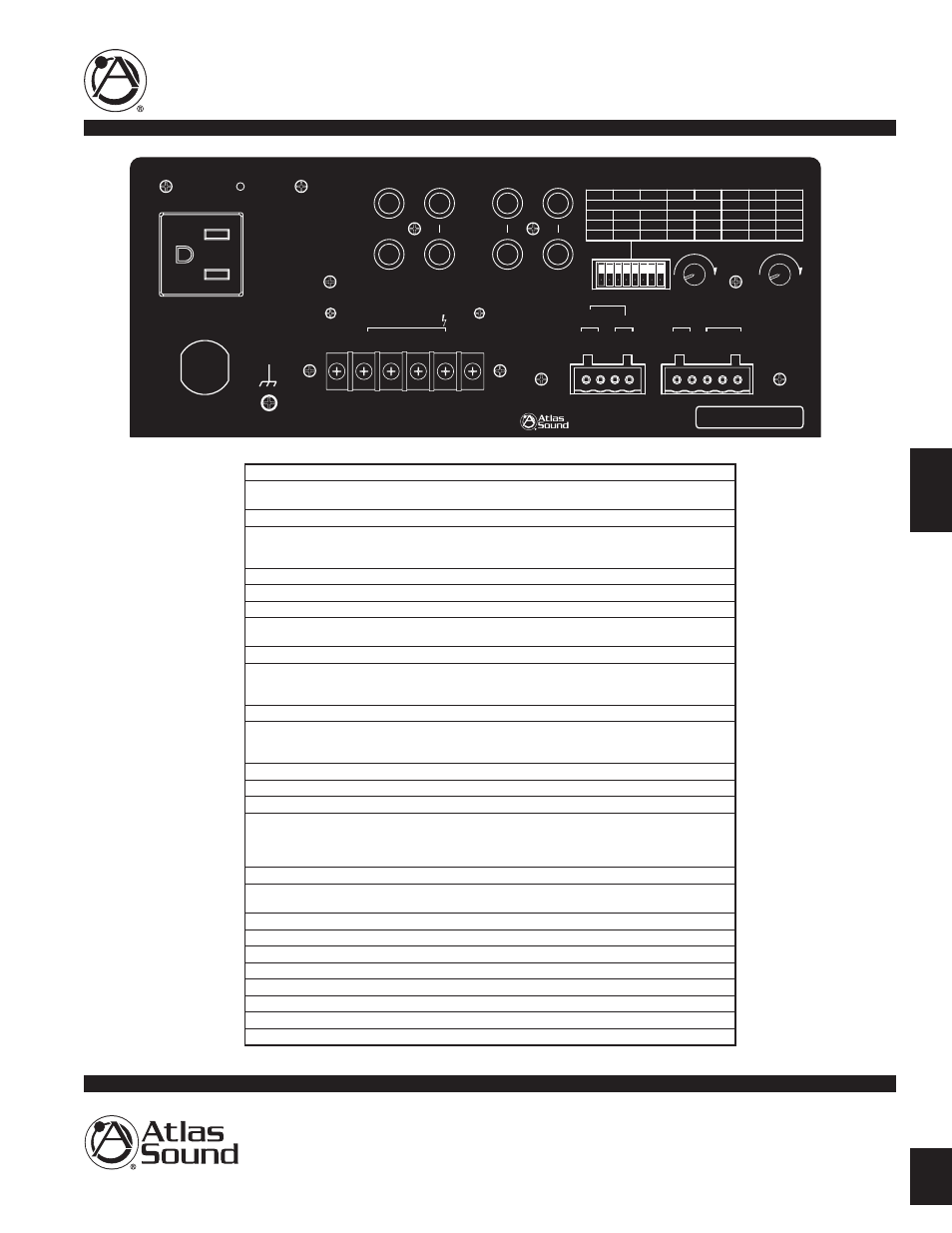

© 2006 Atlas Sound Printed in U.S.A. ATS002452 RevA 11/06 SL5-2090
On
Off
Low cut
8
On
Off
4 3 2 1
Phantom Mute Rcv
Off
On
Off
On
Off
On
Off
On
5
Zone 2 Assign
6
Input 3 Input 2 Input 1
Input1
7
Input 2 Input 3
Line/Tel
Mic
Off
On
Unswitched Outlet
120V AC 60Hz
Max 500W
Outlet Breaker
125V AC 4A
Push Reset
120V AC 60Hz 100W
Amp In
Line Out A
Line Out B
Pre Out Input 3 Input 2
L
R
Zone2
10 0
Level
Mute
Sens
10 0
Remote
Mute
G - +
Input 1 ¡ 8
1W
¡ 600
Zone 2 Out
- + - +
Speaker Output 35W
COM 25V ¡ 8 70V
L
R
£Ид£К>VŽÊV>ЮК Ы`°]К
˜˜ˆГ]К/8КЗx££™К
­nдд®ÊnÇȇООООКМ>Г-œХ˜`°Vœ“
77)+
7jbWiIekdZ77I[h_[iC_n[h7cfb_\_[h
CLASS 2 WIRING
