PROLiNK Hurricane 9000G - Manual (Page 20)

802.11g ADSL Router
16

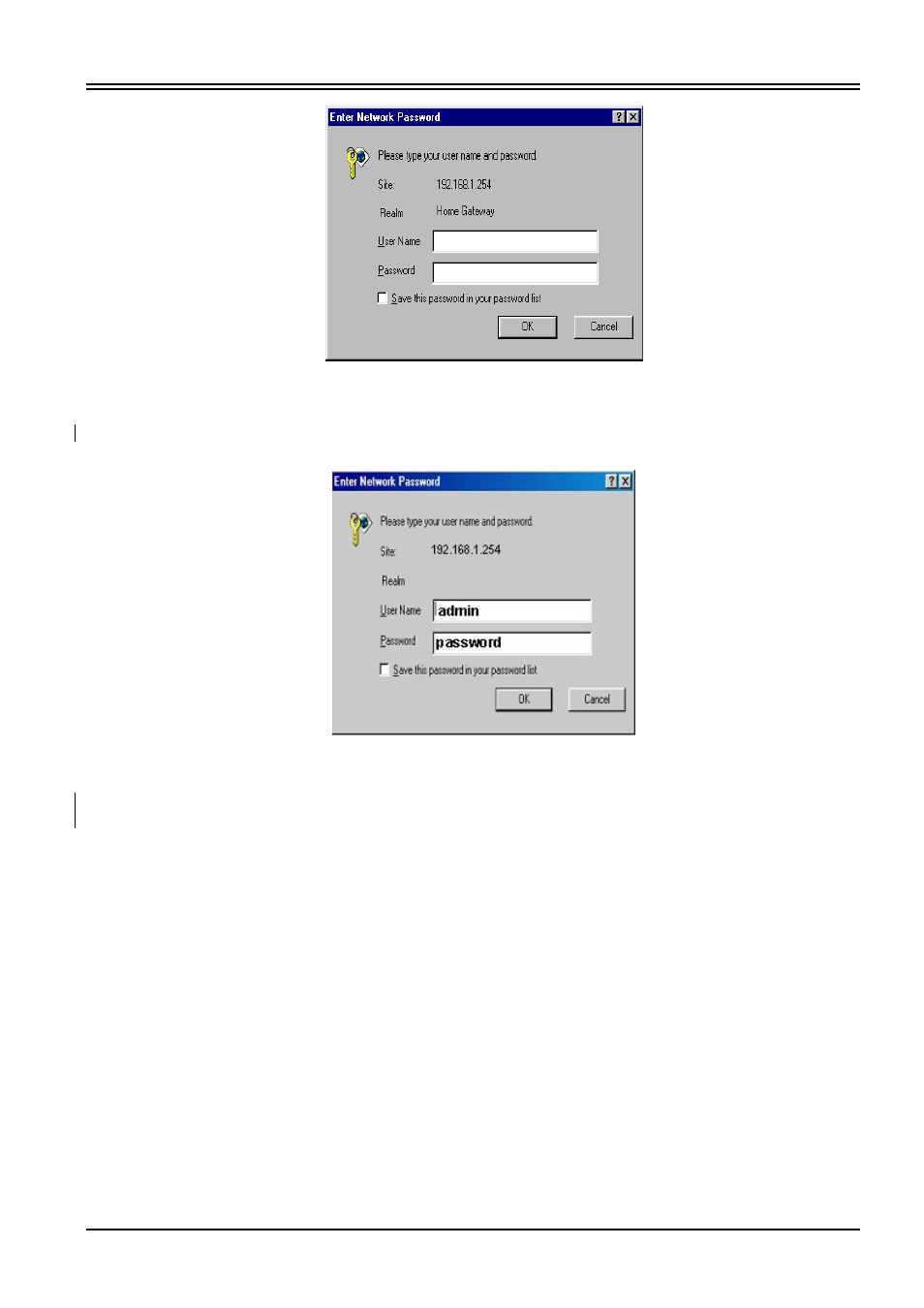

If you want to configure the device with administrator level, type admin in the username field and
password in the password field. Then, click “OK” to log in. You can modify these passwords for security
and management purpose.
At the configuration homepage, the left navigation pane where bookmarks are provided links you directly
to the desired setup page, including:
Status (ADSL Status, LAN Status, PPP Status, VPN Connect Status, Learned MAC Table, Routing
Table, System Log and Security Log)
Quick Start
Configuration (WAN, LAN, Wireless, System, Firewall, VPN, Virtual Server and Advanced )
Save Config
3.4.1 Status
The Status section provides and contains many items including device H/W and S/W information, LAN,
WAN, Port status and all defined interfaces. It also provides useful information for users to review the
status of device.
