ADMP / ADM / ADMR

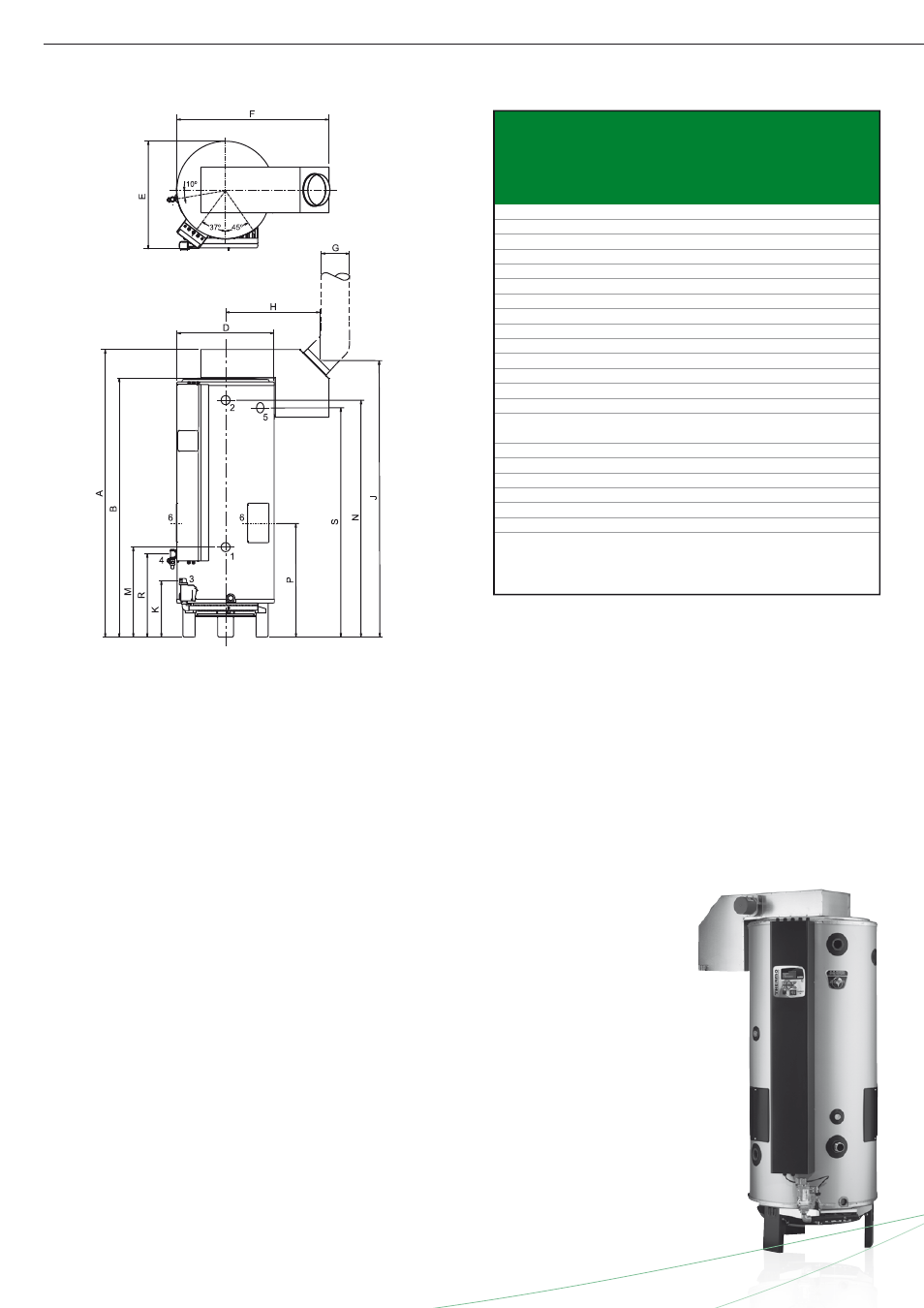

Dimensions ADM / ADMR
A 1900 2100 1900 2100 2000 2085 2085
B 1760 1960 1760 1960 1795 1870 1870
D 710
710 710 710 710 710 710
E 800 800 800 800 800 800 800
F 1100 1100 1100 1100 1105 1105 1105
G 150
150 180 180 225 225 225
H 660 660 660 660 675 675 675
J 1840 2040 1840 2040 1935 2010 2010
K 400
400 400 400 400 400 205
M 565 565 565 565 575 650 650
N 1605 1810 1605 1810 1640 1715 1715
P 730
730 730 730 740 825 855
R 500 515 500 515 525 600 595
S 1550 1760 1550 1760 1595 1660 1660
1 Cold water (external) R1 1 / 2
2 Hot water (internal) Rp1 1 / 2
3 Gas control (internal) Rp 3 / 4 (ADM(R) 135 = Rp1)
4 Tank drain valve (internal) Rp1 1 / 2
5 T&P valve (internal) 1-11.5 NPT (40-80)
Rp1 1 / 2 (90-135)
6 Cleaning and inspection opening Ø100
Dimensions in mm. All ADM and ADMR water heaters receive
a three years warranty on the tank and one year on parts.
ADM(R) 40 ADM(R) 50 ADM(R) 60 ADM(R) 80 ADM(R) 90 ADM(R)
115
ADM(R)
135
