10
INSTALLATION
4111-0002 — December 2002

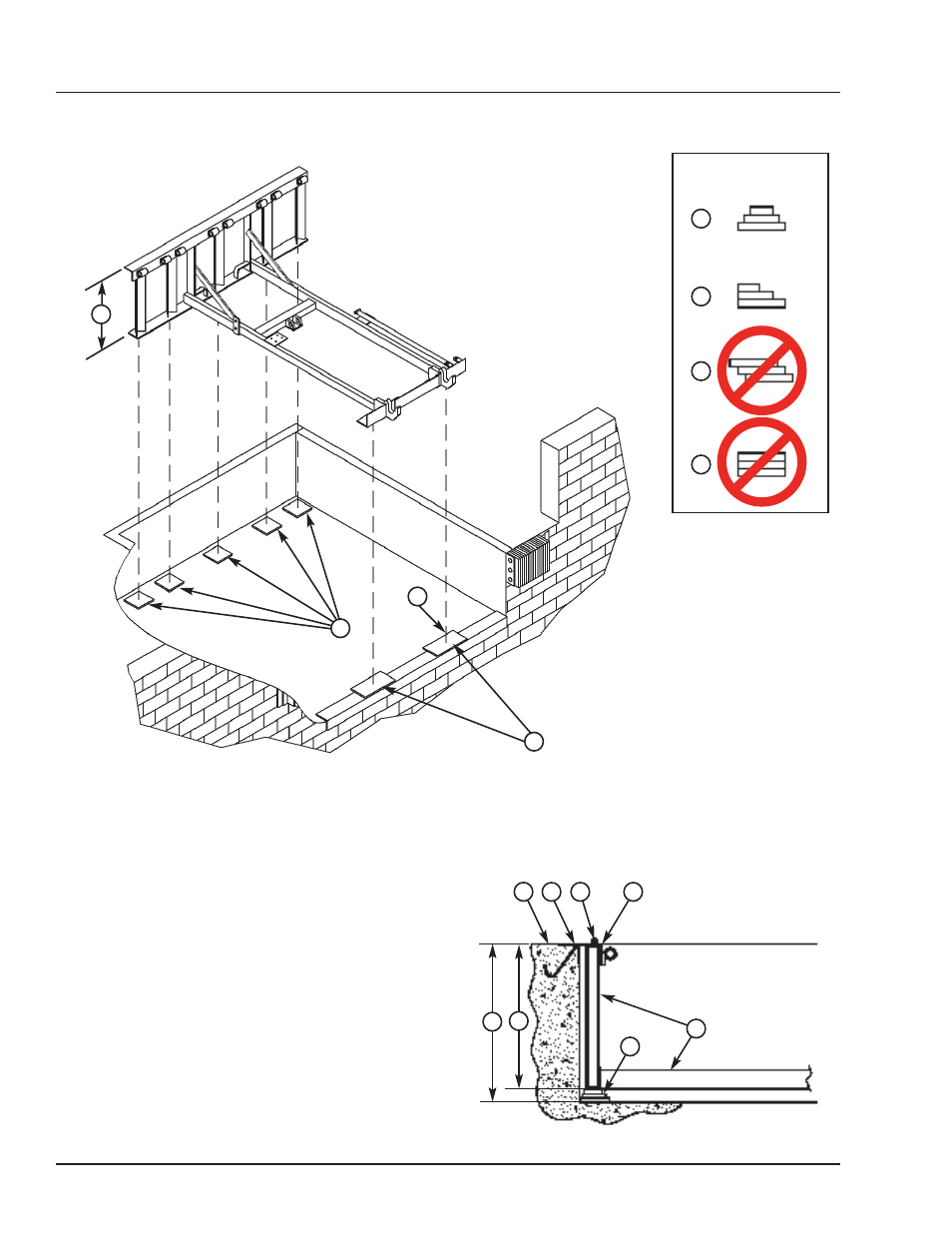

A
A— Distance (Leveler Frame
Height)
B— Shim Locations (Under
Rear Vertical Supports)
C— Shim Location (Under
Maintenance Prop)
*Same as (D)
D— Shim Locations (Under
Lip Keepers)
E— Dock Floor
F— Rear Pit Curb Angle
G— String
H— Rear Hinge Frame Angle
J— Distance (Dock Floor-to-Pit
Floor)
K— Distance (Top of Shim
Stack-to-Dock Floor)
L— Shim Stack
M— Dock Leveler Frame
N — Pyramid (Preferred)
P— Stepped (Acceptable)
Q— Offset (Not Acceptable)
R — Straight (Not Acceptable)
Install Dock Leveler
N
P
Q
R
Shim
Stacking Methods
F E G
L
H
M
K J
B
C
D
A
