KNOW YOUR TILLER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.
Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save
this manual for future reference.
These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their
meaning.

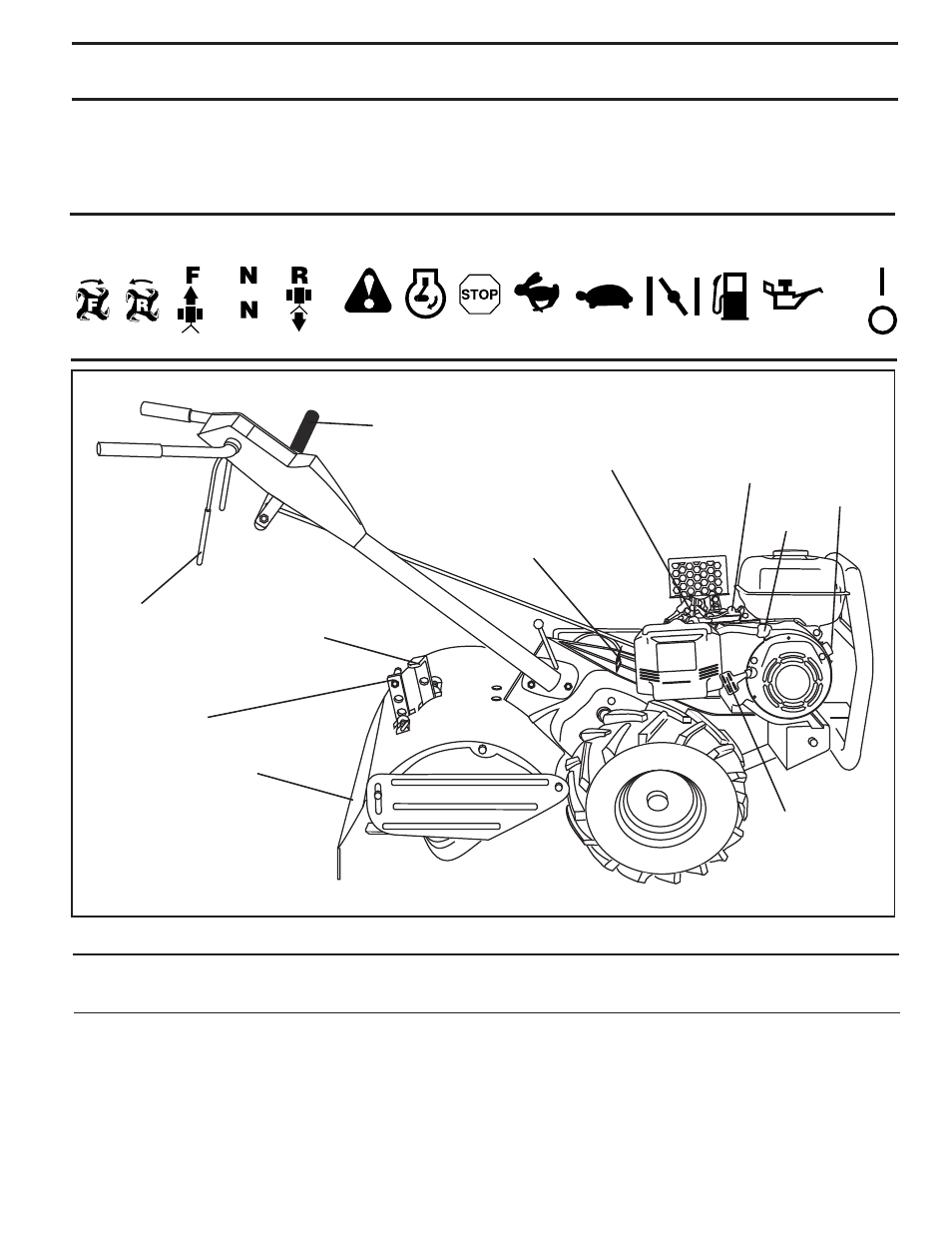

Fig. 8
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
CHOKE CONTROL - Used when starting a cold engine.
DEPTH STAKE - Controls depth at which tiller will dig.
DRAG STAKE - Controls forward speed in forward rotat-
ing till position.
DRIVE CONTROL BAR - Used to engage tines.
LEVELING SHIELD - Levels tilled soil.
RECOIL STARTER HANDLE - Used to start the engine.
SHIFT LEVER - Used to shift transmission gears.
SHIFT LEVER INDICATOR - Shows which gear the trans-
mis sion is in.
THROTTLE CONTROL - Controls engine speed.
ENGINE ON/OFF SWITCH - The engine switch enables
and disables the ignition system.
FUEL VALVE - The fuel valve opens and closes the pas-
sage between the fuel tank and the carburetor.
OPERATION
DRIVE
CONTROL
BAR
DEPTH STAKE
DRAG STAKE
SHIFT LEVER
LEVELING
SHIELD
RECOIL
STARTER
HANDLE
SHIFT LEVER IN DI CA TOR
THROTTLE
CONTROL
CHOKE CONTROL
FUEL
VALVE
ON/OFF
SWITCH
CAUTION
OR WARNING TILLING FORWARD NEUTRAL REVERSE
FAST SLOW
ENGINE
ON
ENGINE
OFF
OIL FUEL CHOKE
STOP
RUN
TILLING
