SNOW THROWER - MODEL PP10530ES (96192001802)

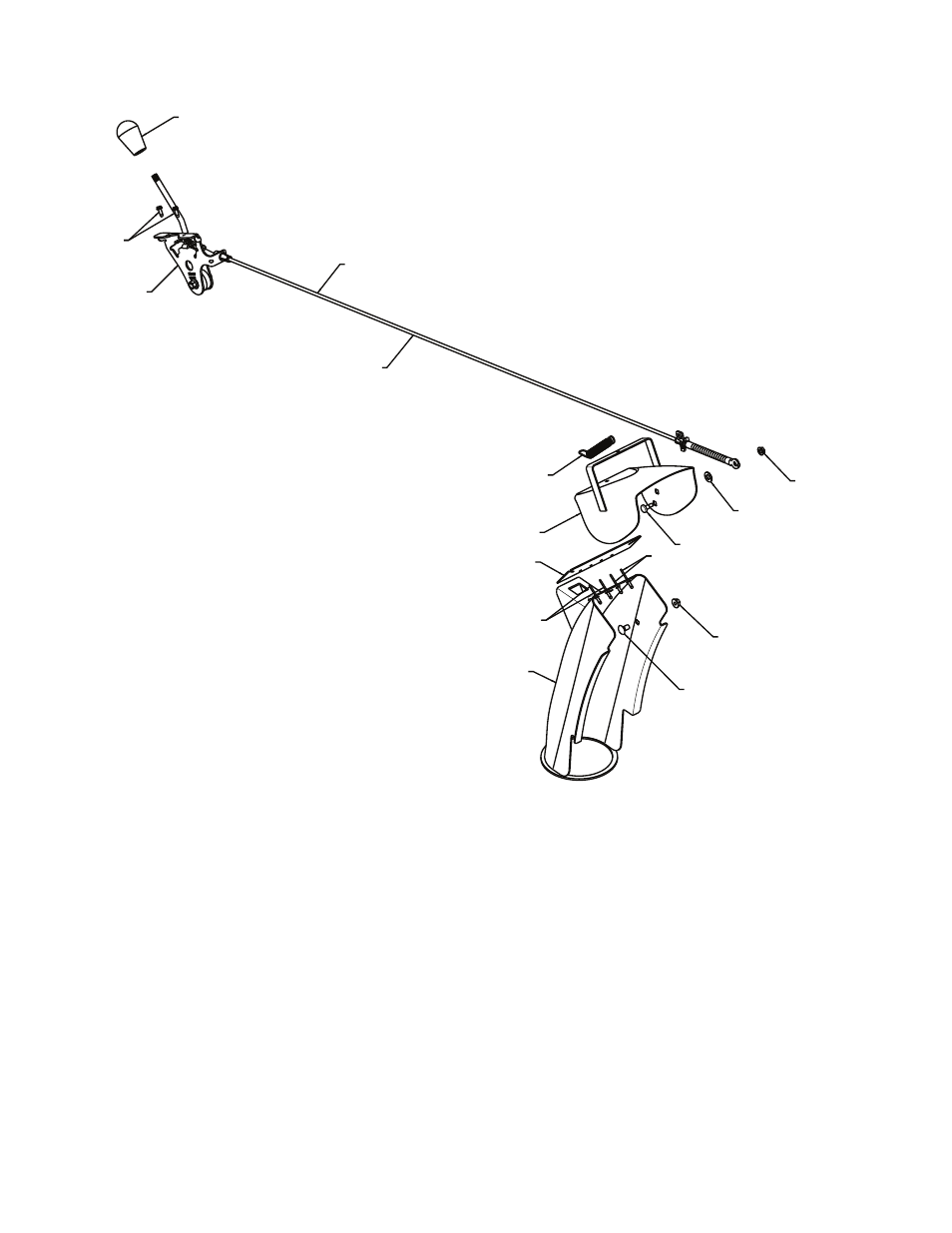

CONTROL PANEL / DISCHARGE CHUTE
1
2
4
6
6
*11
*12
*8
*9
*13
*10
3
5
7
14
15
01.09.002-B
1
404770X428 CHUTE WELDMENT
2
178633X428 DEFLECTOR WELDMENT
3
420673
DEFLECTOR CONTROL ASSEMBLY
4
420325
DEFLECTOR SEAL
5
414280
KNOB BLACK
6
128415
POP RIVET
7
17501010
SCREW 10−24 X .625
*8
179829
SHOULDER SCREW
*9
179246
PLASTIC WASHER
*10
191730
NUT 1/4−20
*11
72250505
CARRIAGE BOLT 5/16−18 X .50
*12
751153
NUT 5/16−18
*13
184505
DEFLECTOR SPRING
14
420679
(SERVICE PART) DEFLECTOR CONTROL HEAD
15
420672
(SERVICE PART) DEFLECTOR CONTROL CABLE
NOTE:
1. ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.
2. ITEMS 14 AND 15 ARE SERVICE PART NUMBERS TO ALLOW PURCHASE OF INDIVIDUAL ITEMS IF NECESSARY.
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
