Specifications
SA-380 Mono Subwoofer Amplifier
RMS Power (before limiting and servo) 380 W @ 4 Ohms, <.025%THD
Signal to Noise Ratio (-90dB hum)
-97dB @ full power
Frequency Response (typical, in room) 20-150 Hz ±3 dB
Low Level Input Sensitivity 250mv @ full output, 100Hz
Low Level Input Impedance 15K Ω
Power Supply Storage 22K microfarads
Toroidal Transformer 400VA
Peak Output Stage Current 40amps rated
Dimensions (W x H x D) 17” x 1½” x 11½”
430 x 40 x 330mm
Weight (lbs) 18lbs. (8.2kg)
System Configurations
The SA-380 amplifier is a mono-block amplifier, which
drives a single IWTS-8e SUB woofer module. Any
number of amplifier/woofer modules may be used,
depending on the system requirements. In small- to
medium-sized rooms, it’s likely that a single amp/
woofer module will be all that’s needed for outstanding
bass. For larger spaces (or when extremely loud bass
reproduction is a necessity), two or more amplifier/
woofer modules can be used.
Subwoofer Features
The woofer module consists of two very powerful 8-inch
drivers specially designed to deliver substantial bass
energy from the in-wall enclosure. Because they’re only
8 inches in diameter, their cones respond very quickly to
the amplifier’s signal.
In addition, the baffle is coated with a special compound
called RDT™ (Resonance Dampening Treatment),
designed to suppress unwanted baffle resonances and
maximize inner bass detail and articulation. The result
is very “fast” bass response without boom or overhang:
Music is taut and precise; special effects are powerful
and room-filling.
Amplifier Features
• Balanced and Unbalanced inputs
• 12-volt trigger turn-on
• Auto-off circuitry
• 2-position phase control
• THX Reference level setting
• 3-color LED status indicator
• Servo-control distortion-elimination circuitry
• Space-saving 1U rack height
IWTS-8e SUB Woofer Module
Drivers (2) 8” High output woofers,
Coated Composite Molded Graphite cones
with 8 lbs. motor assemblies
Frequency Response 20Hz - 100Hz ± 3dB (typical, in room)
Peak Output Single 102dB, Dual 105dB (3000 cu. ft. space)
Dimensions (H x W x D) Woofer Module: 19 13 ⁄
16
” x 10 5 ⁄
8
” x 3”
IN-BOX-8 SUB Enclosure: 81” x 14½” x 3½”
Fits in standard
2 x 4 construction

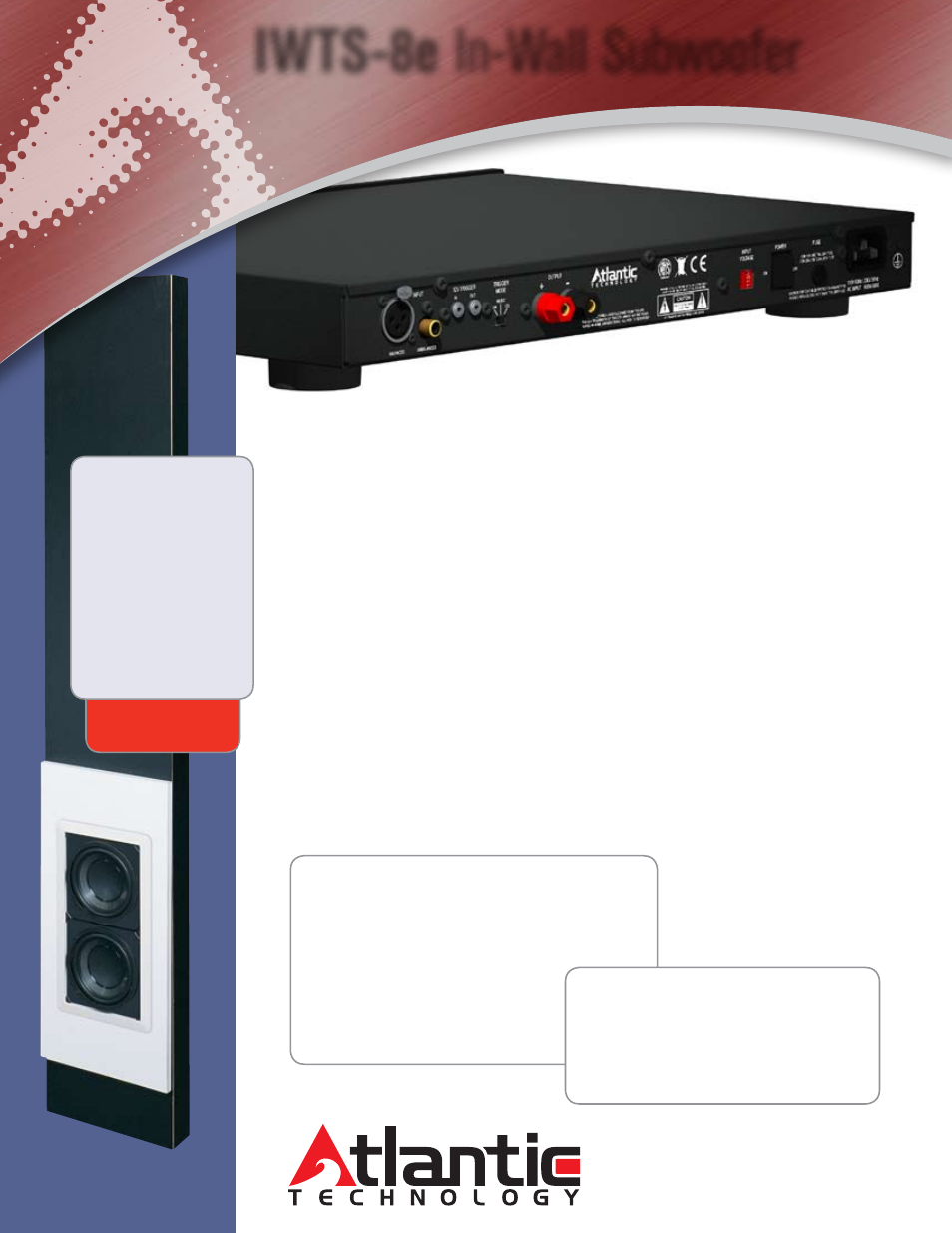

The woofer module is shown in its
dedicated in-wall enclosure. Once
it’s installed within the wall (new
construction only) all you see is
a gently curved perforated metal
grille that projects into the room
approximately 1½ inches. The
grille and the trim ring around the
woofer module are supplied in a
matte white primer finish that can
be used as is or painted to match
the surrounding wall surface.
