Pro Rack Type Modelers or Preamps
RETURN
SEND - L
EFFECTS
LOOP
SEND - R
MODEL REACTOR 112
Atomic Amplifiers LLC.
Orange CT.
FUSE
0101010101
!CAUTION!
RETURN
SEND - L
EFFECTS
LOOP
SEND - R
MODEL REACTOR 112
Atomic Amplifiers LLC.
Orange CT.
FUSE
0101010101
!CAUTION!

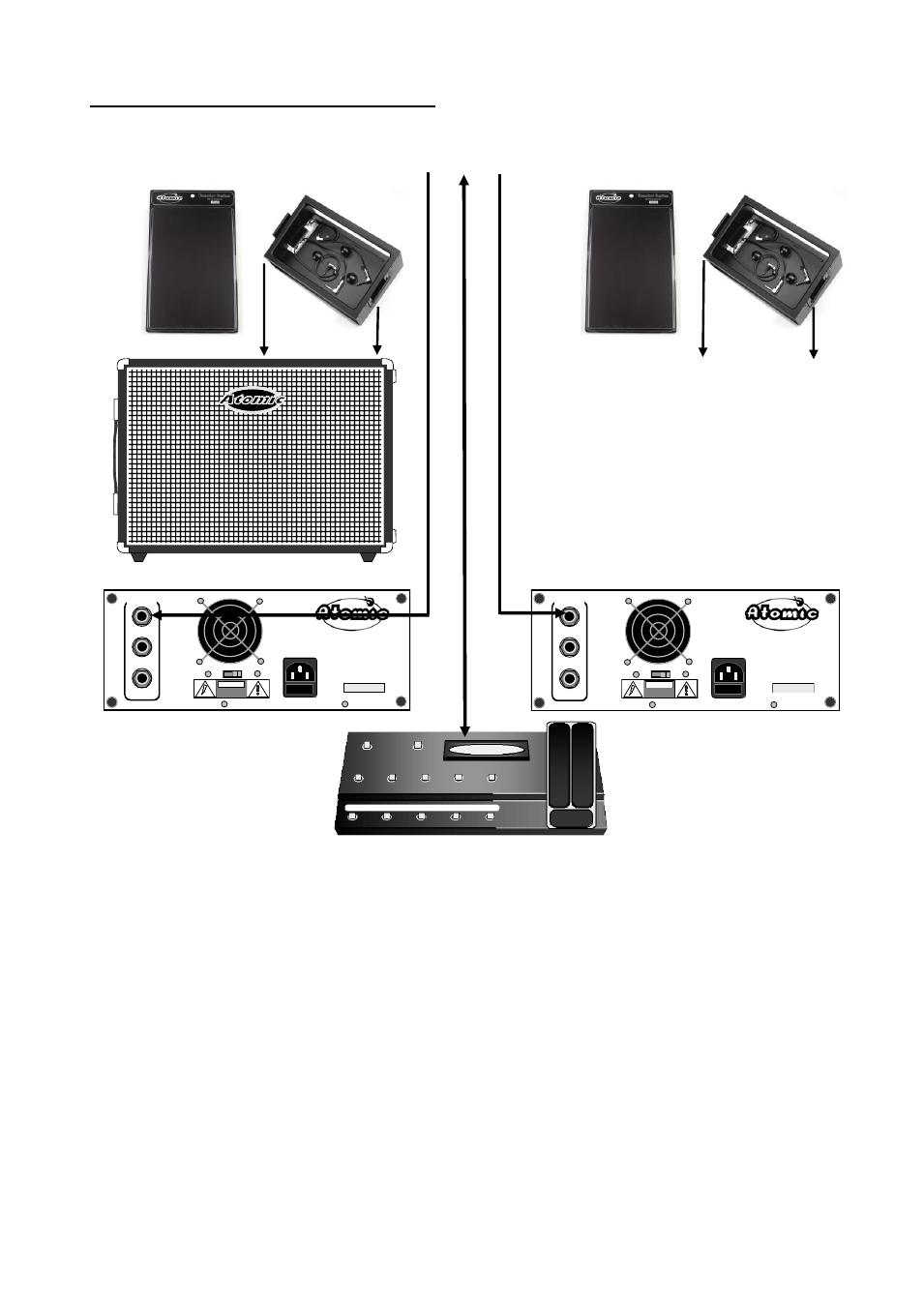

Using two Reactor
50 112/212s
Install blank
templates onto the
DS-1 docking
units.
Replace the DS-1’s back
into the docking bays
located in the top of the
Reactors making sure that
the dock locks click into
position.
Plug the Left and Right
outputs of your Pro-
Rack style modeler or
preamp into the pair of
R eactor’s R ETU R N
inputs.
If using outboard effects
pedals or devices with
your modeler, connect
them as normal per the
m anufacturer’s
instructions
It is a good idea
to make sure
the output
levels are
turned down on
your modeler.
If using outboard effects
pedals or devices with
your modeler, connect
them as normal per the
m anufacturer’s
instructions.
Turn the Reactors power switches to
the ON position (they should light
up).
Bring up the levels on your modeler
and switch to some of your favorite
presets.
