Ultra Start 3250M - Manual (Page 12)

Blue
Green
Lock
Un
lock
Vehicle
Lock/Unlock
Switch To Control
Relay or
Actuators
87
86 85
87a
30
87
86 85
87a
30
Lock
Un
lock
Vehicle
Lock/Unlock
Switch
To Control Relay
or Actuator
Green
Fused +12V
Blue
87
86 85
87a
30
87
86 85
87a
30 Blue
Green
Lock
Un
lock
Vehicle
Lock/Unlock
Switch
To Actuator
Fused +12V
x
x
Cut
Cut

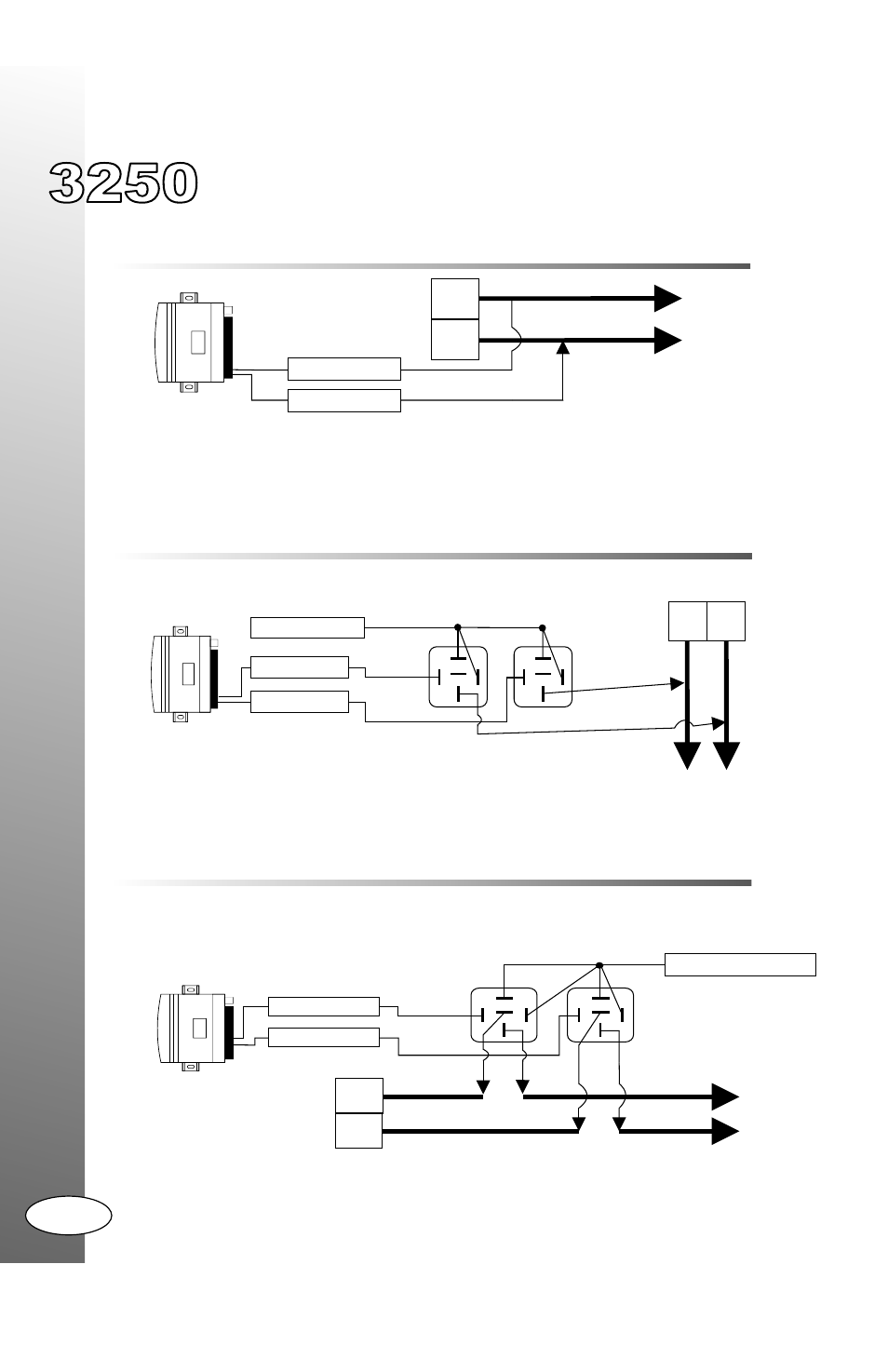

Negative Type Door Locks
Positive Type Door Locks
5 Wire / Reverse Polarity Type Door Locks
