15
&+$11(/ &21752/

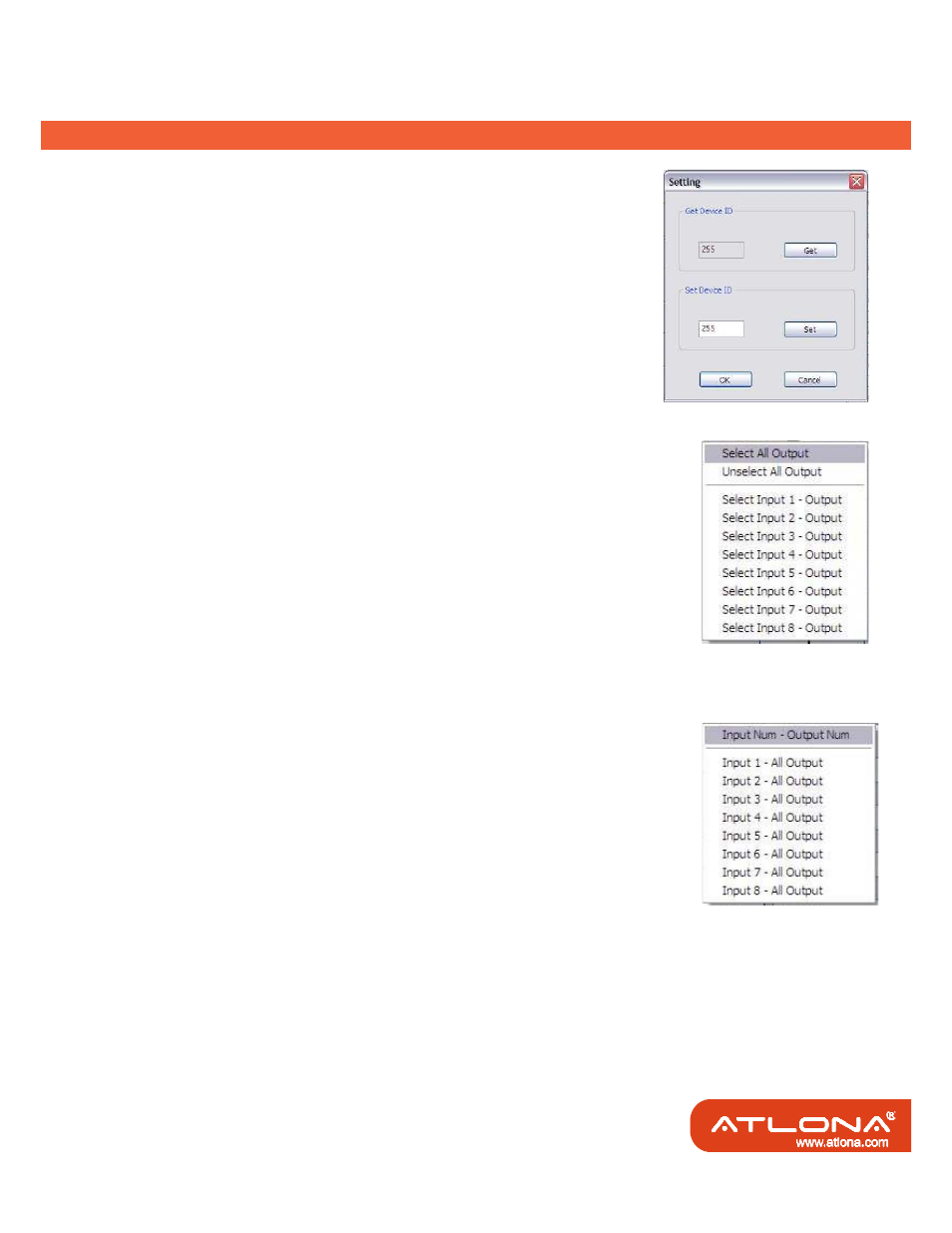

2. Setting button:
Press Get button to read back device ID.
Press Set button to write device ID.
3. Linkage button:
Press Linkage button to read back all status.
4. Open/Close button:
Press this button to close or open COM port.
5. Mapping button:
Select All Output:
Select “set all output”, then select the source on main menu . You
can quickly set all output to the same source.
Unselect All Output:
Release output selection.
Select Input1~8-Output:
Select Input Source. Then select the output port icon.
For example:
Select input source 1. Then select output port one and two. The
video and audio will be send to port one and two.
6. Fast Select button:
Press Fast select button. Quick setting.
Input one ¨ ¨ ¨ ¨ Output Port one
Input two
¨ ¨ ¨ ¨Output Port two
…..
Press Fast select pull down menu.
Select Input Num-Output Num
Input source #1
¨ ¨ ¨ ¨ Output port #1
Input source #2
¨ ¨ ¨ ¨ Output port #2
…..
Select Input* - All Output
Send the same source to all output.
