The Tester’s Choice M8 will condition a single gas stream in its standard
configuration only. A second, parallel gas stream connection and the associated
hardware are available as an option. If this option was purchased, see Appendix D
for instructions.
4. Connect the conditioned sample outlet connector to the sample gas line leading to the
analyzer.
5. Connect the supplied power cord to the receptacle on the rear of the unit. See figure 4.

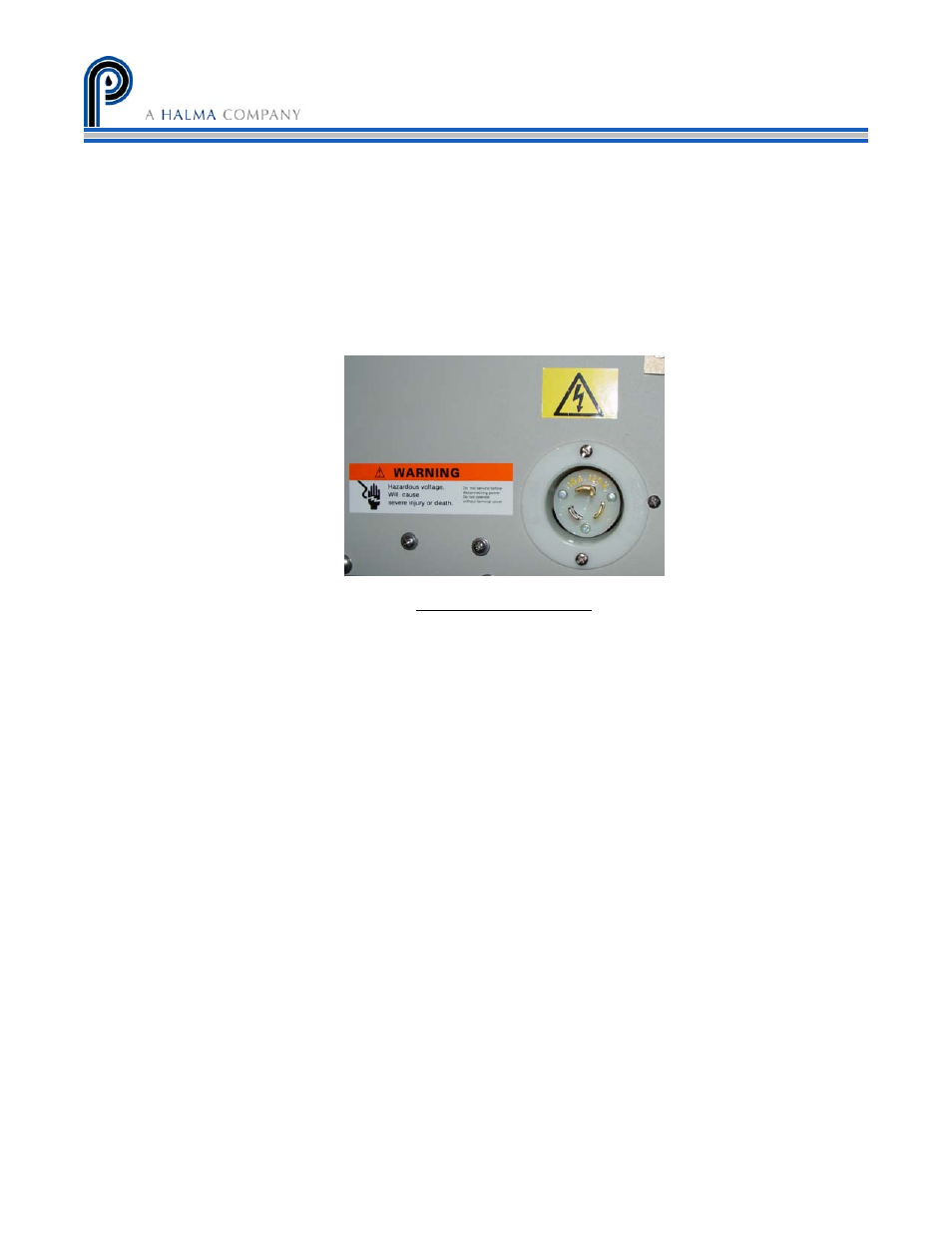

Figure 4 - Power connection
Do not power up the unit at this time. Verify that the proper supply voltage is available to
power the Tester’s Choice M8.
