Perma Pure Automatic Filter Drain FF-DV-V-100F_S and FF-DV-P-100F_S - Manual (Page 2)

Rev. 12/10
Perma Pure Automatic Filter Drain System
For vacuum service:
Models FF-DV-V-100F (fluorocarbon) and FF-DV-V-100S (316
Stainless Steel)
For pressure service (15 psig max on F model, 60 psig max. on S
model.)
Models FF-DV-P-100F (fluorocarbon) and FF-DV-P-100S (316
Stainless Steel)

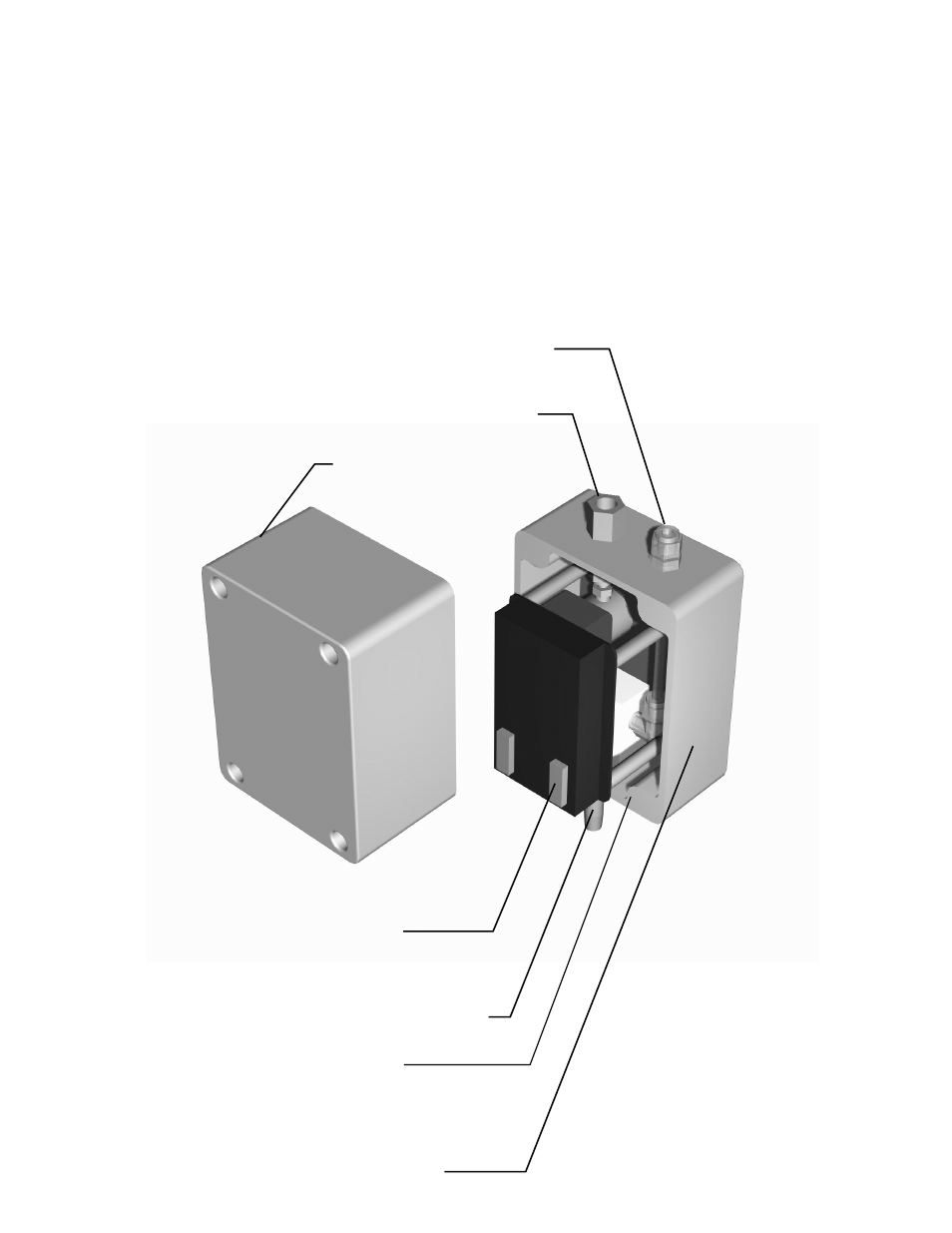

Condensate/air exhaust port,
¼” NPT male pipe(vacuum version)
¼” compression(pressure version)
Compressed air inlet(vacuum version only),
¼” NPT female pipe, 100 psig max.
Condensate suction port,
¼” compression
ABS plastic
screw cover
ABS plastic enclosure
Dimensions 4.75w”,6.25h”,5.5d”
NEMA 1,2,3,3R,4,4X,5,12,&13
IP 65,DIN 40050
Solid state timer with DIP
switches for cycle and drain
time adjustment
AC power cord connection
