Perma Pure DM-Series - Manual (Page 2)

DM GAS DRYER SPECIFICATIONS
Fittings
Snap-lock Door
Desiccant
Indicating Crystals
When blue indicating crystals turn pink, desiccant
needs to be replaced.
1. Take off fittings/tubing
2. Remove snap-lock door on canister (Refer to
Figure 1)
3. Empty spent desiccant
4. Refill with new desiccant
5. Replace snap-lock door
REPLACING DESICCANT
INSTALLATION
Luer Fittings
DM-060-24 include two sets of barb fittings:
1/16” and 1/8”
DM-110-24 include one set of 1/8” barb fittings
Units ship with plugs on the bulkhead fittings.
Before use, take plugs off and replace with barb
fittings.
Stainless Steel Compression Fittings
Compression fittings take 1/8” tubing

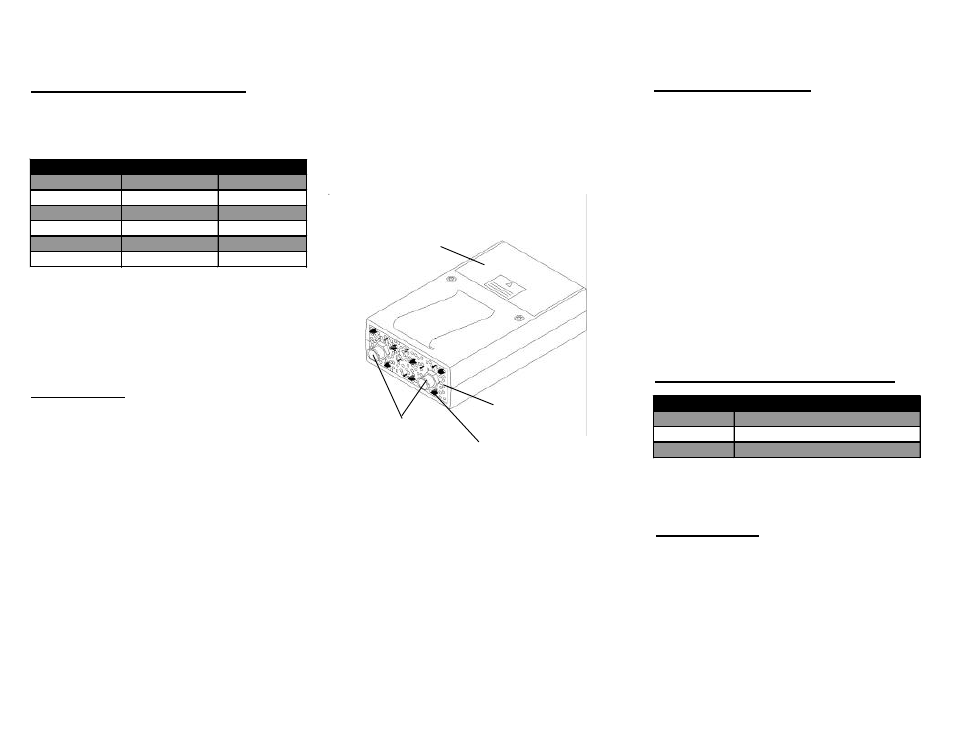

Figure 1
PERFORMANCE
DM-Series dryers continuously dries sample
gases down to -30°C dew point depending on
flowrate.
PART NUMBERS FOR REPLACEMENT
Model Number DM-060-24 DM-110-24
O.D. 0.060" 0.110"
I.D. 0.049" 0.085"
Flow Rate Up to 500mL/min Up to 1L/min
Housing 4.2"x2.4"x1.0" 5.0"x2.75"x1.5"
Desiccant 2.5 oz. 5.5 oz.
Drying/Charge 72L 150L
Part Number Description
DM-AR 1 Liter (provides 10 refills)
ME-060-24BB Replacement dryer for DM-060-24
ME-110-24BB Replacement dryer for DM-110-24
