4. Limit LED Indicator
The CP400 and CP700 come equipped with limiter circuitry and LEDs to indicate when this circuitry is
activated. The limiter circuitry engages only when the input signals reach a specific, factory set
magnitude. Once this limit has been reached, the circuitry will reduce the input level enough to prevent
clipping at the speaker output terminals.

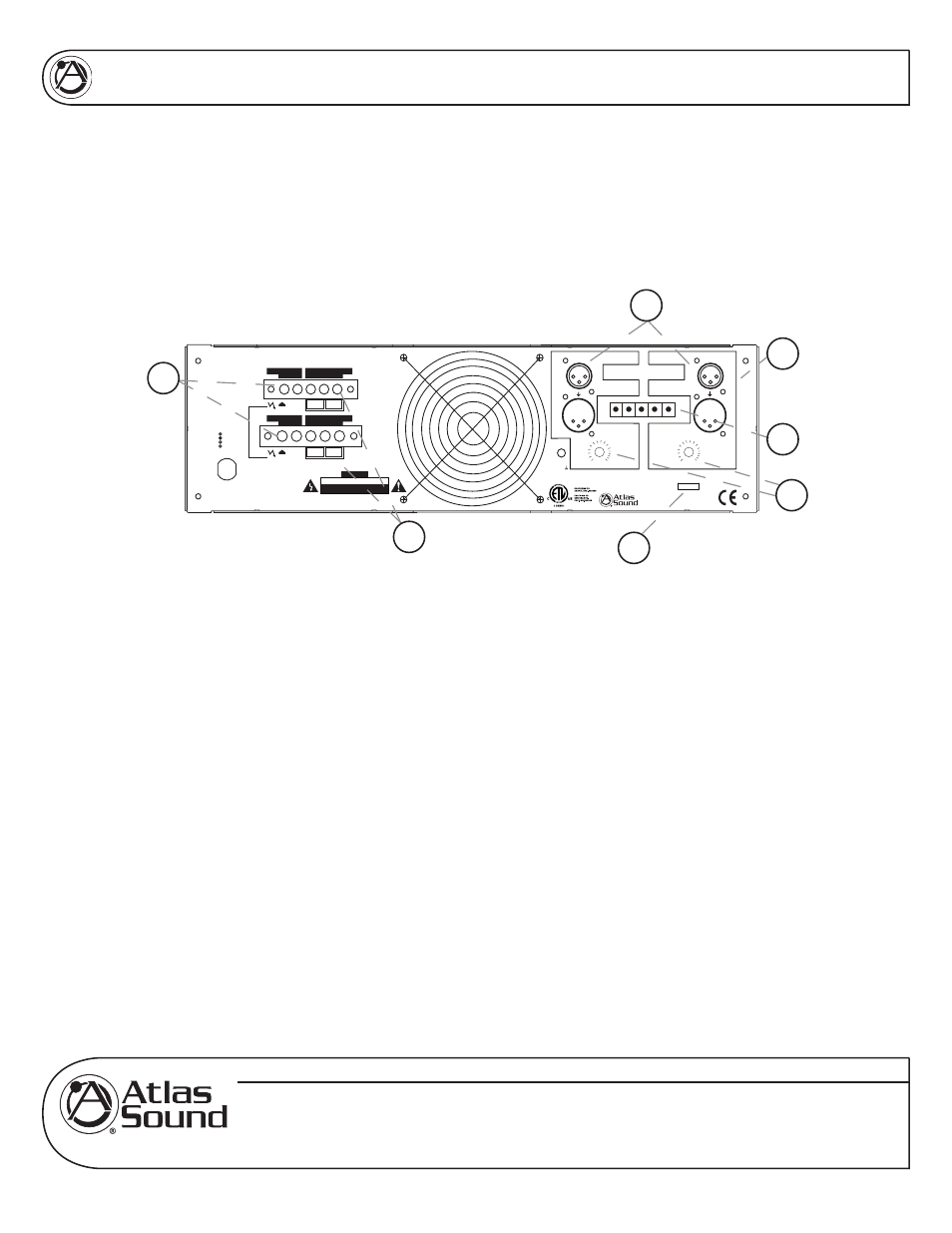

REAR PANEL DESCRIPTION
Figure 2
5. gain Controls
One stepped attenuator per channel increases or decreases the sensitivity by 2 dB per step. Maximum
voltage gain is 32 dB.
6. CH1/CH2 Inputs (XLR Connectors)
Two female XLR inputs (one per channel) are provided. These inputs are balanced and configured as
follows: pin 1 ground, pin 2 +, pin 3 -. The XLR connections are typically used in portable audio
systems where quick connect and disconnect is warranted.
7. Balanced Barrier Strip Inputs
Balanced inputs are provided on this barrier strip for permanent installation applications. The use of
the appropriate spade type lug is highly recommended for best connection integrity and a neat,
professional appearance.
8. CH1/CH2 Loop Through
Two male XLR (one per channel) are provided for looping the input signals to other devices. These
connectors are wired in parallel with the female XLR inputs, pin for pin.
+ + - - GND
CH-2 CH-1
AMPLIFIER INPUTS
THRU
IN
THRU
IN
CAUTION
AC100V-50/60Hz
AC120V-50/60Hz
AC230V-50/60Hz
AC240V-50/60Hz
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
POWER
CP700
Commercial
Power
Amplifier
Per Channel
Output Power
400 W / 4 Ohms
350 W / 70.7 V
PROTECT
LIMIT
SIGNAL
CH-1
PROTECT
POWER
LIMIT
SIGNAL
CH-2
CP700
Commercial Power Amplifier
LEVEL -00 5 6 40
3 2 26 22 18 16 14 1 2 1
0 8
6 4 2 0
LEVEL -00 5 6 40
3 2 26 22 18 16 14 1 2 1
0 8
6 4 2 0
1601 Jack McKay Blvd., Ennis, TX 75119
(800) 876-3333 AtlasSound.com
STEREO
PARALLEL BRIDGE
GND
CH-1 CH-1
- 100V +
- +
70V
- +
25V
8, 4, and 2 Ohms AUDIO TRANSFORMER
D I R . O U T P U T I S O L . O U T P U T - + 70 100 0
BRIDGE
MONO
+
CH-2 CH-2
- 100V +
- +
70V
- +
25V
8, 4, and 2 Ohms AUDIO TRANSFORMER
D I R . O U T P U T I S O L . O U T P U T - + 70 100 0
BRIDGE MONO
-
AVIS RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MADE IN CHINA
7
9
11
5
8
6
10
