Design and function
Component description
Chain saw unit
Design

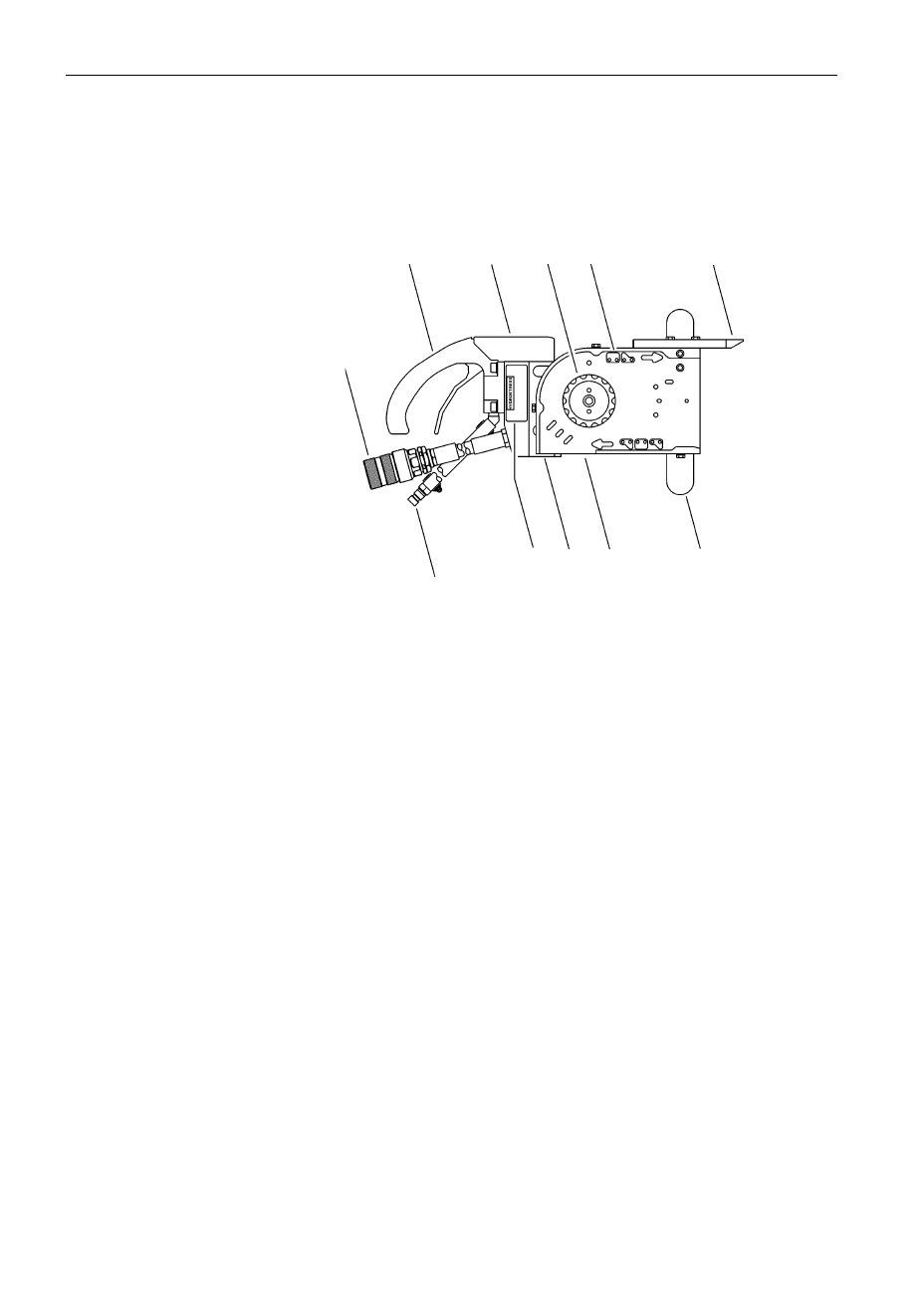

Fig. 1-4 Chain saw unit
1. Operating handle with manual starter 7. Water connection
2. Water level housing 8. Name plate
3. Drive wheel 9. Valve block
4. Fitting aid (chain-engraving) 10.Chain guard
5. Cutting mandrel 11.T-handle
6. Hydraulic connection
Function
The chain saw unit is the central component of the Chain saw HCH50.
The chain saw unit incorporates the drive motor and the operating handle
and T-handle for using the HCH508***. The unit along with its valve block
and the hydraulic and water connections also constitutes the interface with
the power source (drive assembly).
1 2 3 4 5
7
8 9 10 11
6
6
