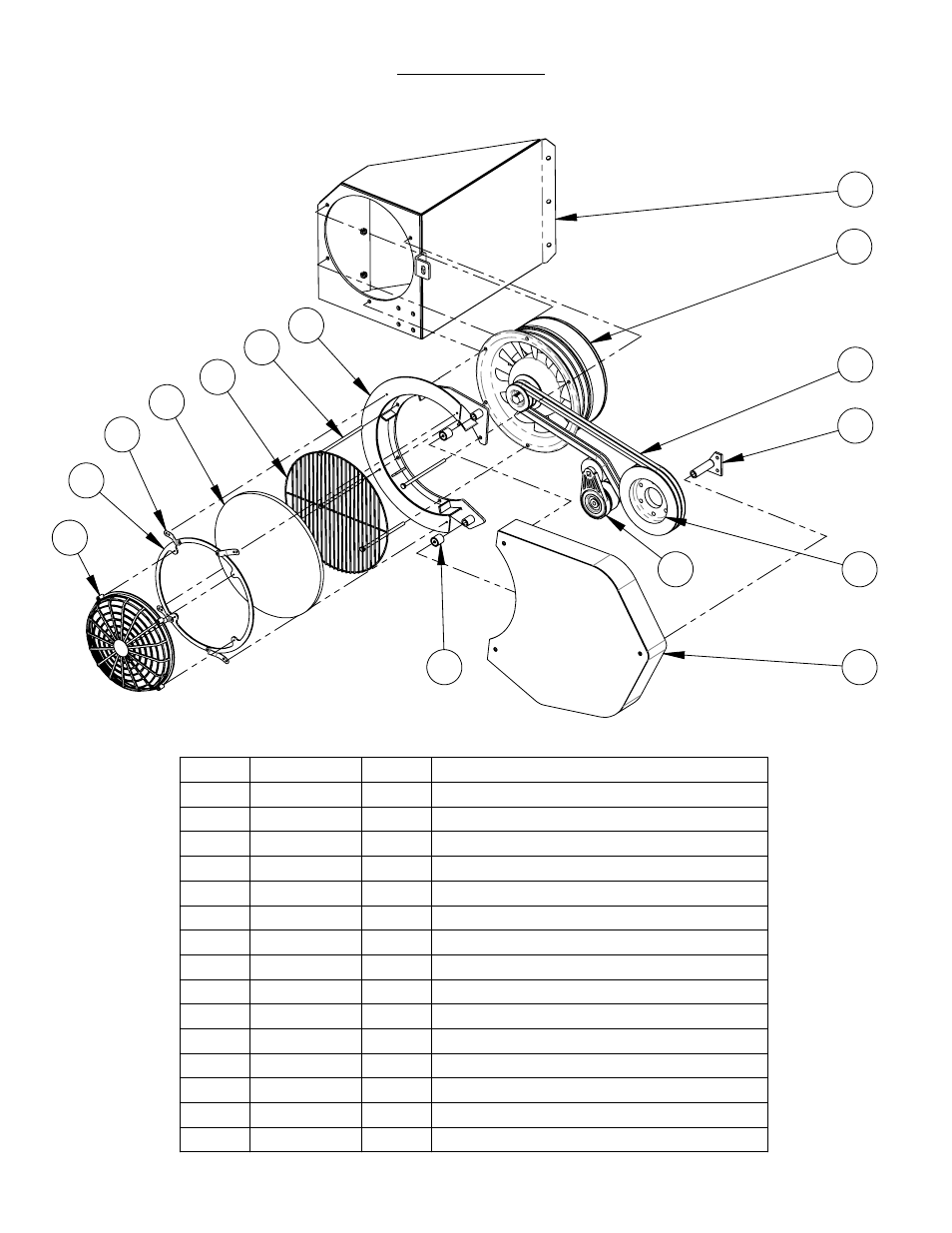

Fan Assembly
ITEM PART NO. QTY. DESCRIPTION
1 6075142 1 Air Box Weldment
2 2502625 1 Axial Turbine Fan Assembly
3 6075143 1 Fan Mount Weldment
4 2502126 1 Tensioner K99
5 2707226 1 Pulley, 2-Groove Crankshaft (Cummins 110)
6 2502125 2 V-Belt 4L560W 56"
7 2503293 1 Filter Screen Grill
8 2502641 2 Vibration Isolator 5/16-18 Thread
9 2502780 1 Air Filter
10 6075006 1 Air Filter Retaining Ring
11 2502537 1 Fan Guard
12 2902971 4 5/16-18 x 7 Hex Capscrew
13 2502629 4 Spring Clip
14 6075145 1 Belt Guard
15 6075145B 1 Fan Support Mount Weldment
