ADPT-nanoZ-NN-32/64
Adapter for nanoZ Device and NeuroNexus Probes NN32 and NN64

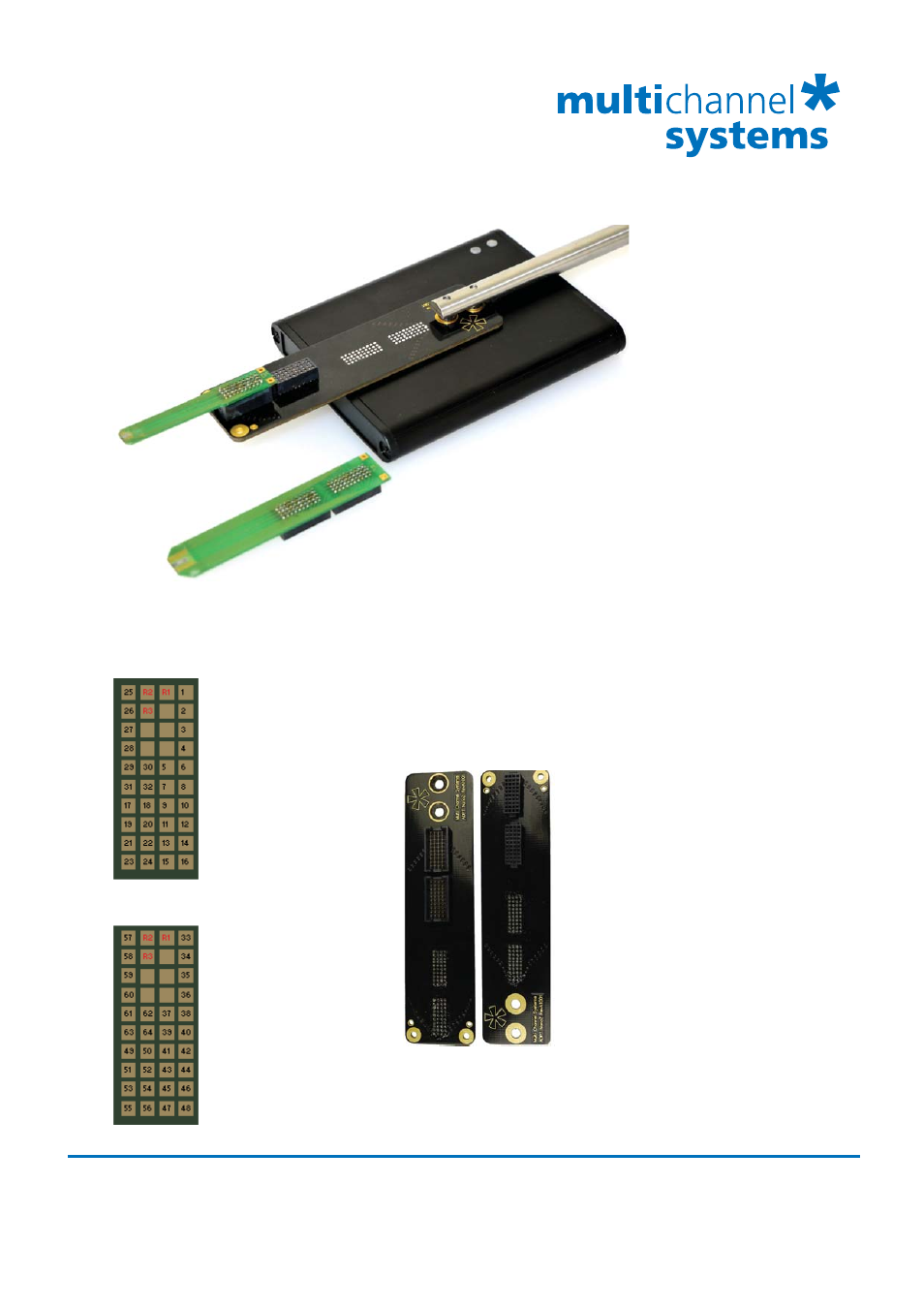

Connecting the NeuroNexus Probes NN32 and NN64 to the nanoZ device via ADPT-nanoZ-NN-32/64
Pin Layout of the nanoZ. Please read nanoZ User Manual, Appendix C.
NeuroNexus Probe 32
NeuroNexus Probe 64
ADPT-nanoZ-NN-32/64
front and rear panel
The pin layout of the adapter
is identical to the pin layout
of the nanoZ.
Please see the picture of the
left side and read the nanoZ
User Manual, Appendix C.
25 R2 R1 1
26 R3 2
27 3
28 4
29 30 5 6
31 32 7 8
17 18 9 10
19 20 11 12
21 22 13 14
23 24 15 16
57 R2 R1 33
58 R3 34
59 35
60 36
61 62 37 38
63 64 39 40
49 50 41 42
51 52 43 44
53 54 45 46
55 56 47 48
Pin Layout of the ADPT-nanoZ-NN-32/64
ADPT-nanoZ-NN-32/64 ADPT-nanoZ-NN-32/64
nanoZ
Rod Mount
